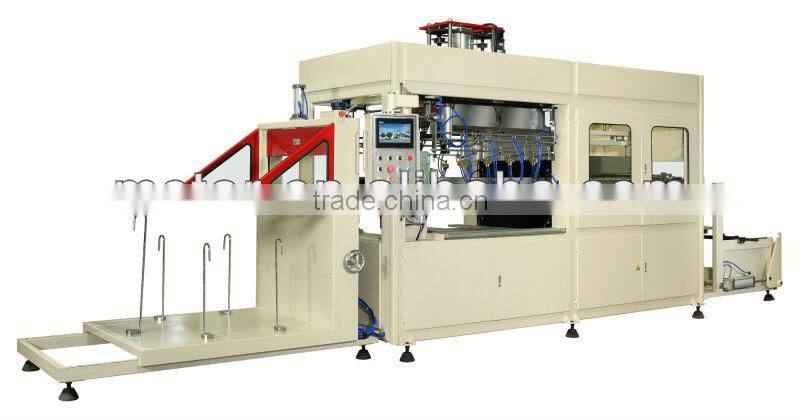

Help CenterXC46-71/122A-BWP Automatic Vacuum Forming Machinery
Related Products
-
XC50-71/122-WP High Speed ps Vacuum Thermoforming MachineUS$ 30,000 - 50,000MOQ: 1 Set -
XC50-71/122AB-WP Vacuum Forming MachineNegotiableMOQ: 1 Set
-
XC46-71/122-WP Automatic High Speed Form MachineNegotiableMOQ: 1 Set
-
XC46-71/122A-CWP Vacuum Forming MachineUS$ 30,000 - 40,000MOQ: 1 Set
-
XC46-71122A2-WP Automatic VACUUM FORMING MACHINENegotiableMOQ: 1 Set

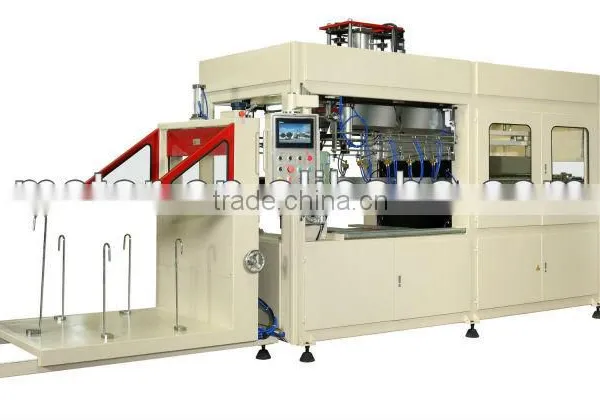

Specifications
Automatic Vacuum Forming Machine. Designed for making all size packing containers ,in open-type using roll-sheet.Useage:
The machinery is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this machinery can be used for the package of foods , native-products, tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets , light deposit sheet ,environment sheet APET ,PETG .Color sheets :PVC,HIPS,PET,PS,PP, EPS, etc.Fiber-coating-sheet.
Structure features
1.The machinery combine with mechanical ,pneumatic and electrical integration fully computer control . Touch Screen easy operation.
2.Production Acounting ,can set automatic stop or advance alarm function ;Date Memorization function can store 230 data and para
3.Inverter Feeding Driving ,length stepless adjust ,Feeding accurate,stable and high speed.(Max Feeding Speed 1000mm /per second)
4.Temperature Control system , fully computer intellectual temperature control , short heating time ( only 3 min from 0-400 degree ) ; stable ( not effect by outside voltage and temperature fluctuate is less than 1 degree) ; lower power consumption 15% , longer life of far infrared ray ceramic heater
5.Heater has deflection over structure ,which could close whole row of the porcelain heaters when the width of sheet is≤580mm.It can reduce power consumption 16%.
6.Heating Temperature control , individual heating control , Touch Screen input , mini-adjustment precision and heating temperature uniformity .
7.Aadvance feeding with the heating time automatic memory function ,machine could start production from the first feeding .
8.Two-step vacuum ,Two time of up-mould ,Mould Shaking Function ,Mould delay .
9.Product Silicon Sprayer Device .
10.Up/down Mould electric stroke adjust ,easy to adjust under the mould matched situation .It could improve the accurate of moulding and quality of finished production .
11.Back acting plate position motor adjust .
12.Up/down mould match into cushion ,avoid crushion and improve the match speed .
13.Up/down Guiding Leader with self-lubrication bearing couple .stable production and durable structure ,it could assure the high quality of finished products.
14.The width of feeding chain synchronizate and separate motor adjust .
15.Heaters with moving-out structure ,could move out under the malfunction situation ,it could save the sheet materials .
16.Cylinder Sheet Loading structure ,easy for workwoman operation .
17.Up / Lower mold stroke double adjustment , upper mold electromotion adjust under mold clamed situation )
18.Cutting unit with double clamping cutting function ,could produce Male/Female and various different of products slide cutting .
19.Cutting structure adopts special convert structure ,can optimize the working space .The separate stacking car easy finished products stacked .Movement Guide Pole easy stack .
Technical Components
Touch Screen Monitor ( 10.4 “ inch /color ) |
Taiwan Delta |
PLC |
Taiwan Delta |
Inverter 2.2Kw |
Taiwan Delta |
Encoder 1024 |
Taiwan Delta |
Vacuum Pump |
Busch 0100 |
Cylinder |
China Zhicheng |
Pneumatic |
Korea Sanwo & Japan SMC |
Adjust Sprayer |
Japan Meiji |
Fan Blower(0.37Kw) |
Manda |
Contactor |
Germany,Siemens |
Thermo relay |
Germany,Siemens |
Middle relay |
Japan Omron |
Impulse Solid State Relay |
Joint Venture |
Heater |
120 SETS Far Infrared Ray Heaters |
Upper/Down Heater 120 Zone ( 1 control 1 ) | |
Technical Parameter
Model No. |
XC46-71/122A-BWP |
|
Suitable Sheet Width(mm) |
460-710 |
|
Thickness(mm) |
0.1-1.2 |
|
Max Roll Sheet Diameter (mm) |
600 |
|
Up Mould Stroke (mm) |
400 |
|
Down Mould Stroke(mm) |
300 |
|
Max Forming Area(mm2) |
680×1200 |
|
Max Forming Height Protruding(mm) |
200 |
|
Max Forming Height Concave(mm) |
150 |
|
Capacity (Cycle/min) |
4-10 |
|
Cooling Outlet |
Outlet |
4 PCS |
Spray |
8PCS |
|
Air Source |
Air Vol. (m3/min) |
≥2 |
Pressure(MPa) |
0.8 |
|
Water Consumption |
4-5 Cube/Hr |
|
Vacuum Pump ( Outlay ) |
Busch R5 0100 |
|
Power Supply |
380V/ 220V 50Hz 3Phase 4 line |
|
Heater Power(Kw) |
54 |
|
General Power Max(Kw) |
61.23 |
|
Dimension(L×W×H)(mm) |
8070×1656×2425 |
|
Weight(kg) |
4700 |
|
