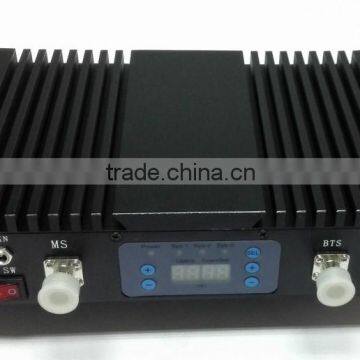

GSM DCS WCDMA 2g 3g 4g 900 1800 2100 mobile signal booster
A regular cell phone repeater consists of: (full kit)
— Outdoor antenna , log periodic antenna ,wall mounted antenna, yagi antenna .
— Indoor Omni ceiling antenna , panel antenna .
— Power adapter .
— User manual .
— Cell phone repeater .
— 10 meters outdoor cable .
Specification should care about :
Model No |
KW27F-GDW |
||
Parameter data |
Uplink |
Downlink |
|
Frequency Range |
UL:890-915/1710-1785/1920-1980mhz |
DL:935-960/1805-1880/2110-2170mhz |
|
Output Power |
20 ±2dBm |
25 ±2dBm |
|
Gain |
70 dB |
70 dB |
|
Bandwidth |
Wide Band |
||

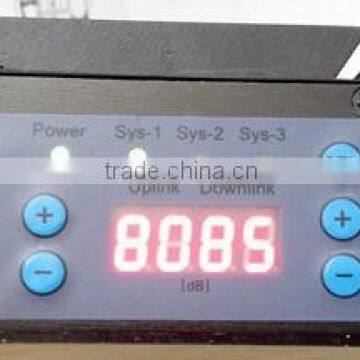

Automatic Gain Control |
>20dB |
||
Ripple in Band |
≤5dB |
||
Intermodulation Products |
9KHz~1GHz |
≤ -36 dBm |
|
1GHz~12.75GHz |
≤ -30 dBm |
||
Spurious Emission |
9KHz~1GHz |
≤ -36 dBm |
|
1GHz~12.75GHz |
≤ -30 dBm |
||
Noise Figure @ max. gain |
≤ 6 dB |
||
VSWR |
≤3 |
||
MTBF |
>50000 hours |
||
Power Supply |
AC:90~265V, 50/ 60Hz;DC:12V 3A |
||
Power Consumption |
< 20W |
||
Impedance |
50 ohm |
||
Mechanical Specification | |||
RF Connector |
N-Female |
||
Cooling |
Heatsink Convection cooling |
||
Dimensions (D x W xH ) |
176*287*25mm |
||
Weight |
2.2Kg |
||
Installation Type |
Wall Installation |
||
Environment Conditions |
IP40 |
||
Humidity |
< 90% |
||
Operating Temperature |
-10°C ~ 55°C |
||
After- Sales Service
We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or
elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly?
And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor
antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
