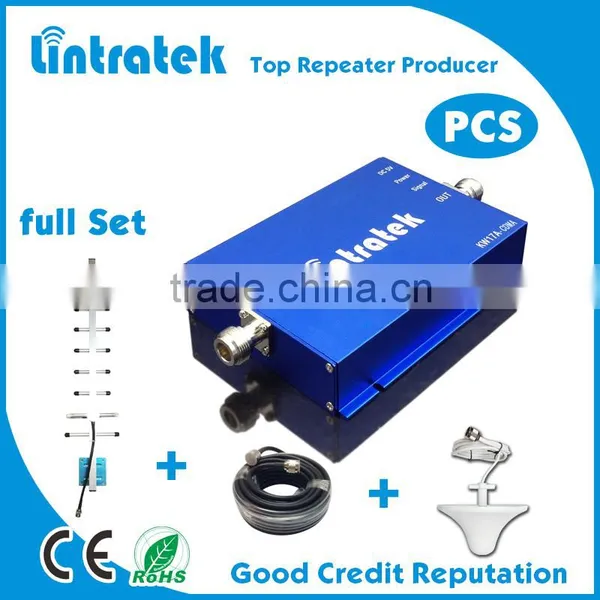

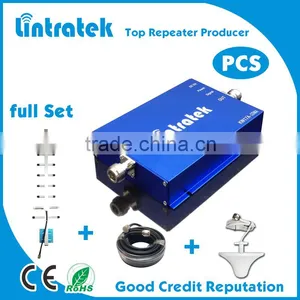

Colombia used mobile signal booster PCS 1900MHz signal repeater for PCS cell phone signal amplifier
Specification

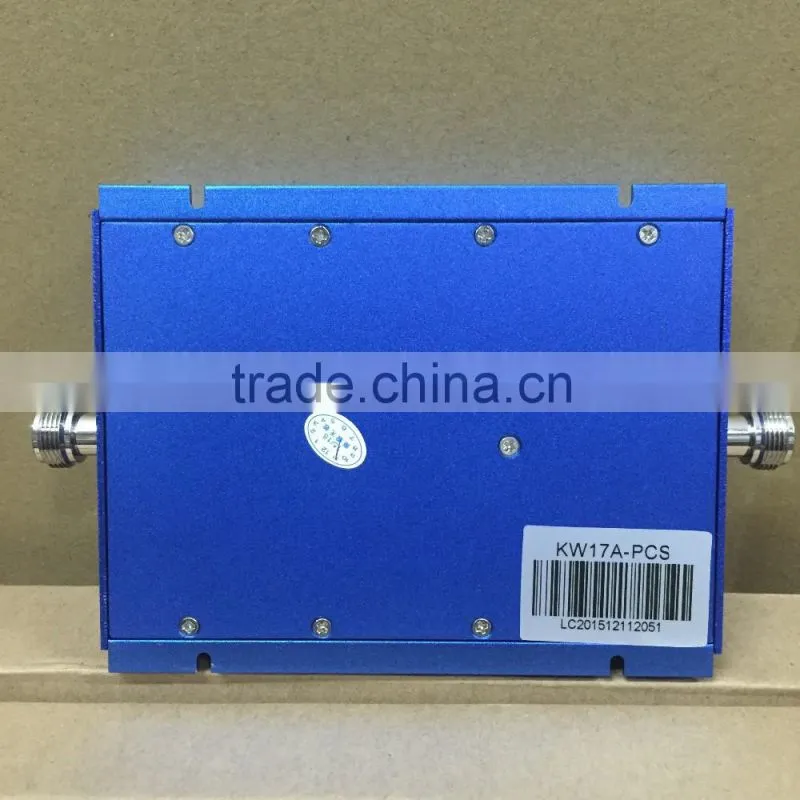

| Model No | KW17A-PCS | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | PCS | 1850~1910 MHz | 1930 ~ 1990MHz |
| Output Power | 10 ±2dBm | 17 ±2dBm | |
| Gain | 60 ±2 dB | 65±2dB | |
| Bandwidth | 60M | ||
| Ripple in Band | PCS≤6dB | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 1A | ||
| Power Comsumption | < 3W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female N | ||
| Dimensions (D*W*H ) | 140*95*30(mm) | ||
| Cooling | Heatsink Convection cooling | ||
| Net weight | < 0.45Kg | ||
| Packing size (D*W*H ) | 250*240*65(mm) | ||
| Gross weight | < 0.7Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10 °C ~ 55°C | ||
How should you install repeater (very easy and simple):
Step 1: Use your mobile phone to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).
Step 2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.
Step3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.
step 4: Mount your indoor antenna with signal repeater
step5: Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.
Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least.
Indoor and outdoor antenna must be separated by wall.
