200~1000sqm Coverage 850/1900 Repeater Gsm Dual Band Signal Booster

200~1000sqm Coverage 850/1900 Repeater Gsm Dual Band Signal Booster thumbnail-1
200~1000sqm Coverage 850/1900 Repeater Gsm Dual Band Signal Booster thumbnail-2
200~1000sqm Coverage 850/1900 Repeater Gsm Dual Band Signal Booster thumbnail-3
200~1000sqm Coverage 850/1900 Repeater Gsm Dual Band Signal Booster photo-1

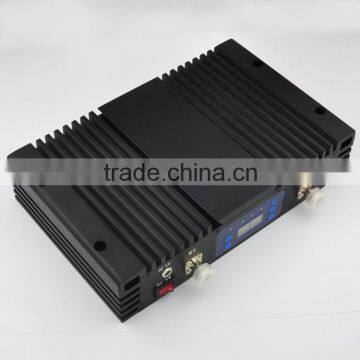

200~1000sqm Coverage 850/1900 Repeater Gsm Dual Band Signal Booster photo-2

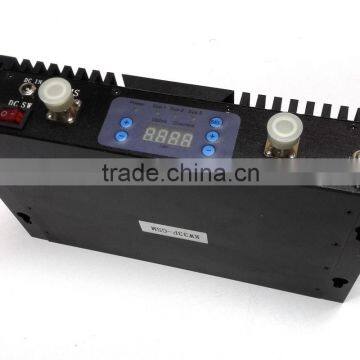

200~1000sqm Coverage 850/1900 Repeater Gsm Dual Band Signal Booster photo-3
US$ 190 - 230 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LINTRATEK REPEATER
Model Number:
KW23F-CP signal booster
Contact Supplier Request Quote Chat Now
Foshan Lintratek Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LINTRATEK REPEATER
Model Number KW23F-CP signal booster

Specification:

  • 850+1900MHz signal booster
  • Coverage: 300~2000sqm
  • Reducing drop/off calls.

200~1000sqm coverage 850/1900 repeater gsm dual band signal booster

Product Description

                             LINTRATEK

         ·   Excellent Quality

         ·    Exquisite appearance

      ·    High Technology

           ·    Considerate service

Lintratek come, to save you from the bad signal!!!
200~1000sqm coverage 850/1900 repeater gsm dual band signal booster



 Specification for Signal Repeater



Specification
From: Vita Wong                         Tel/Whatsapp: +8613229223812
    Model No  KW23F-CP
Parameter data Uplink Downlink
Frequency Range             CDMA+PCS 824~849+1850~1910 MHz 869~894+1930~1990 MHz
Output Power  20 ±2dBm 23 ±2dBm
Gain 65±2 dB 70±2dB
Bandwidth Wide Band
Automatic Gain Control >20dB
Manual Gain Control 31dB in step of 1dB
Ripple in Band  ≤4dB
Intermodulation Products  9KHz~1GHz ≤ -36 dBm
1GHz~12.75GHz ≤ -30 dBm
Spurious Emission            9KHz~1GHz ≤ -36 dBm
1GHz~12.75GHz ≤ -30 dBm
Noise Figure @ max. gain  ≤ 6 dB
VSWR  ≤2
MTBF >50000 hours
Power Supply  AC:90~265V, 50/ 60Hz;DC:9V 5A
Power Comsumption  < 20W
Impedance  50 ohm
Mechanical Specification
 RF Connector  N-Female
 Cooling   Heatsink Convection cooling
Dimensions (D x W xH )  270*170*60(mm)
Weight  ≤ 4Kg
Installation Type  Wall Installation
Environment Conditions   IP40
Humidity  <  90%
Operating Temperature   -10℃ ~ 55℃

  Signal Booster Full Sets

  • · 1 - Outdoor antenna like YAGI antenna or panel antenna
  • · 2 - Indoor Omni ceiling antenna
  • · 3 – Power adapter
  • · 5 - User manual
  • · 6 - Cell phone repeater
  • · 7 - 10 meters outdoor cable and 2 meter indoor cable

   Signal Repeater Installation

Packaging & Shipping

  200~1000sqm coverage 850/1900 repeater gsm dual band signal booster

200~1000sqm coverage 850/1900 repeater gsm dual band signal booster

Company Information

200~1000sqm coverage 850/1900 repeater gsm dual band signal booster  200~1000sqm coverage 850/1900 repeater gsm dual band signal booster
  200~1000sqm coverage 850/1900 repeater gsm dual band signal booster

FAQ

   After - Sales Service



We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.



  Signal problem & installation technique supporting

1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.



2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.



3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.



4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.

Contact person





Related Products

Click The Picture to View more Details

Frequency: 900+1800/900+2100MHz

Output Power: 20dBm

Gain: 65dB

Feartual Coverage: 100~500sqm
