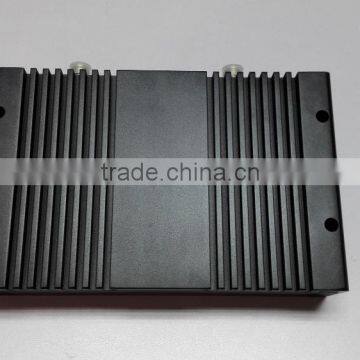

KW27F-GW cover1500sqm with AGC MGC Cell phone signal amplifier for GSM+3G dual band mobile signal booster GSM+UMTS gsm repeater
A regular cell phone repeater consists of: (full kit)
— Outdoor antenna , log periodic antenna ,wall mounted antenna, yagi antenna .
— Indoor Omni ceiling antenna , panel antenna .
— Power adapter .
— User manual .
— Cell phone repeater .
— 10 meters outdoor cable .
Specification
Model No |
KW27F-GW signal amplifier |
||
Parameter data |
Uplink |
Downlink |
|
Frequency Range |
UL:890-915/1920-1980mhz |
DL:935-960/2110-2170mhz |
|
Output Power |
25 ±2dBm |
27 ±2dBm |
|
Gain |
70dB |
75dB |
|
Bandwidth |
Wide Band |
||
Automatic Gain Control |
>20dB |
||
Ripple in Band |
≤5dB |
||
Intermodulation Products |
9KHz~1GHz |
≤ -36 dBm |
|
1GHz~12.75GHz |
≤ -30 dBm |
||
Spurious Emission |
9KHz~1GHz |
≤ -36 dBm |
|
1GHz~12.75GHz |
≤ -30 dBm |
||
Noise Figure @ max. gain |
≤ 6 dB |
||
VSWR |
≤3 |
||
MTBF |
>50000 hours |
||
Power Supply |
AC:90~265V, 50/ 60Hz;DC:12V 3A |
||
Power Consumption |
< 20W |
||
Impedance |
50 ohm |
||
Mechanical Specification | |||
RF Connector |
N-Female |
||
Cooling |
Heatsink Convection cooling |
||
Dimensions (D x W xH ) |
170*270*60 mm |
||
Weight |
4Kg |
||
Installation Type |
Wall Installation |
||
Environment Conditions |
IP40 |
||
Humidity |
< 90% |
||
Operating Temperature |
-10°C ~ 55°C |
||
