What is the DCS signal repeater?
Are you suffering from bad signal?
Yeah.... The DCS signal repeater can solve the mobile phone blind or weak signal to keep you in touch with others smoothly in everywhere.
The DCS signal repeater is particularly useful in zones with poor signal,such as basements, car parks and tunnels. It can also be used in offices, homes, supermarkets, cinemas and hotels etc.

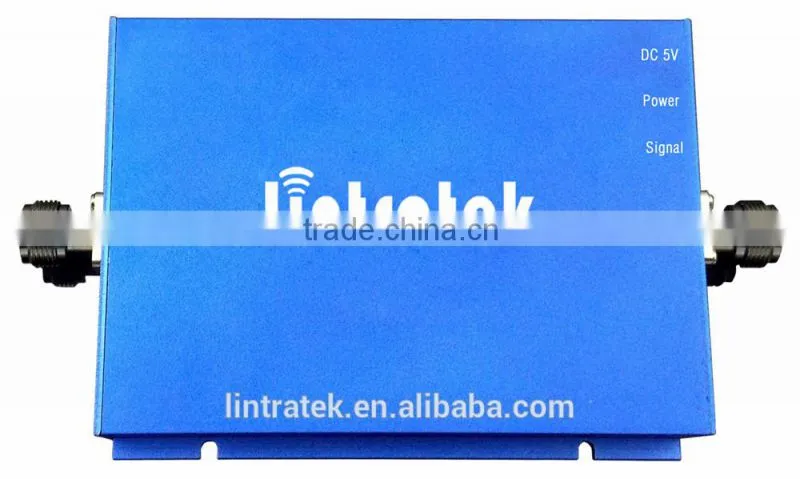

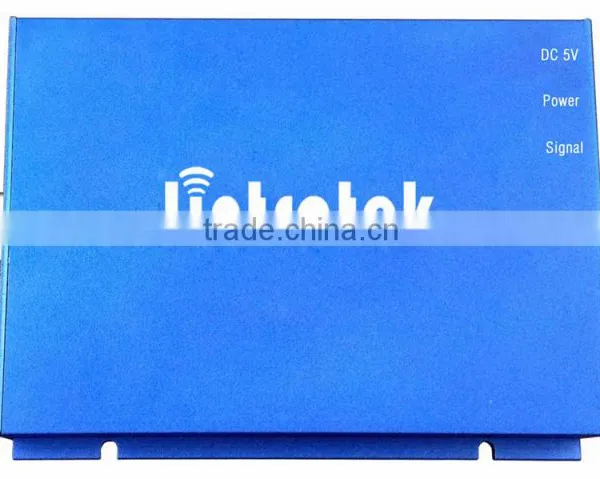

Description of DCS Mobile Signal Repeater
| Model No | KW17A-DCS | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | DCS | 1710~1785MHz | 1805 ~ 1880 MHz |
| Output Power | 10 ±2dBm | 17 ±2dBm | |
| Gain | 60 ±2 dB | 65±2dB | |
| Bandwidth | 25M/25M/75M/60M/45/60M | ||
| Ripple in Band | GSM≤5dB,DCS≤6dB,WCDMA≤5dB,PCS≤6dB | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 1A | ||
| Power Comsumption | < 3W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female N | ||
| Dimensions (D*W*H ) | 140*95*30(mm) | ||
| Cooling | Heatsink Convection cooling | ||
| Net weight | < 0.45Kg | ||
| Packing size (D*W*H ) | 250*240*65(mm) | ||
| Gross weight | < 0.7Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10 °C ~ 55°C | ||

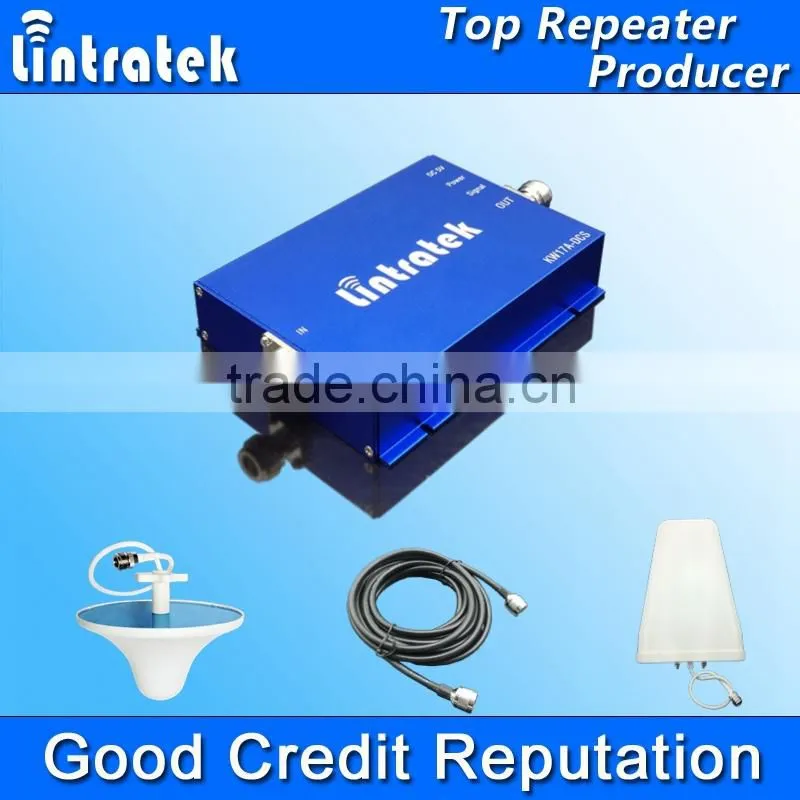

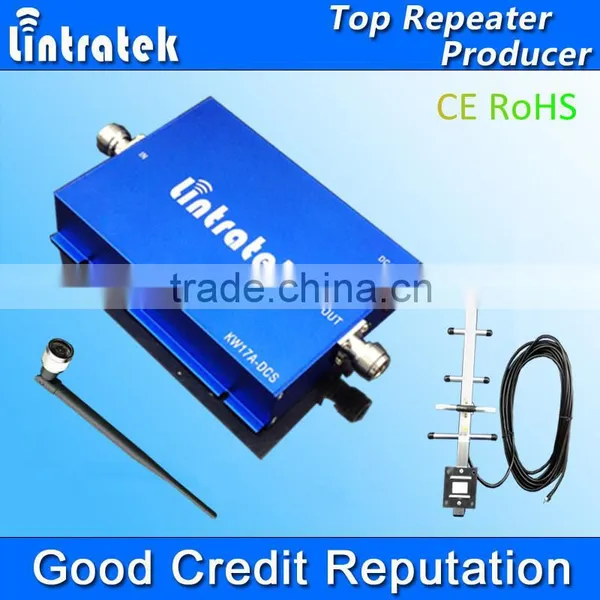

DCS siganl repeater full kit:
- Mobile phone signal repeater
- Outdoor antenna
- Indoor antenna
- 10 meters outdoor cable, 5 meters for indoor
- Connector (N connector, F connector, N to F connector, SMA connector etc)
- User manual
How to install DCS Mobile Signal Repeater?
Step 1: Install the outdoor antenna in a suitable place
Step 2: Connect the outdoor antenna to the booster “outdoor” side by cable and connector
Step 3: Connect the indoor antenna to the booster “indoor” side by cable and connector
Step 4: Connect to the power
Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other and must be separated by wall.
Trade process:
Company information:
After - Sales Service
We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
