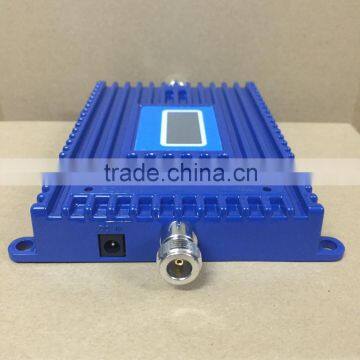

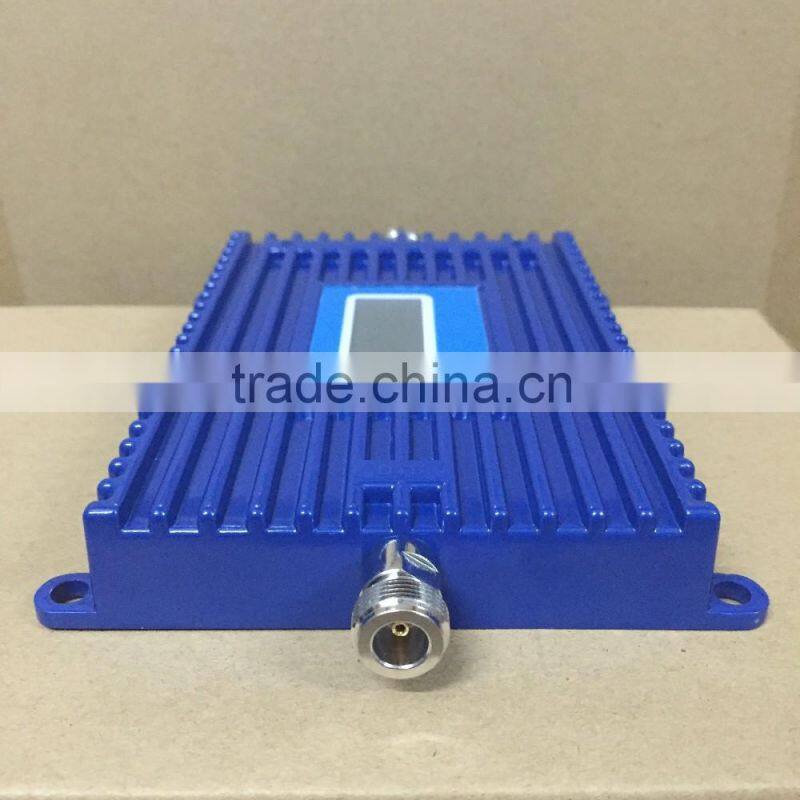

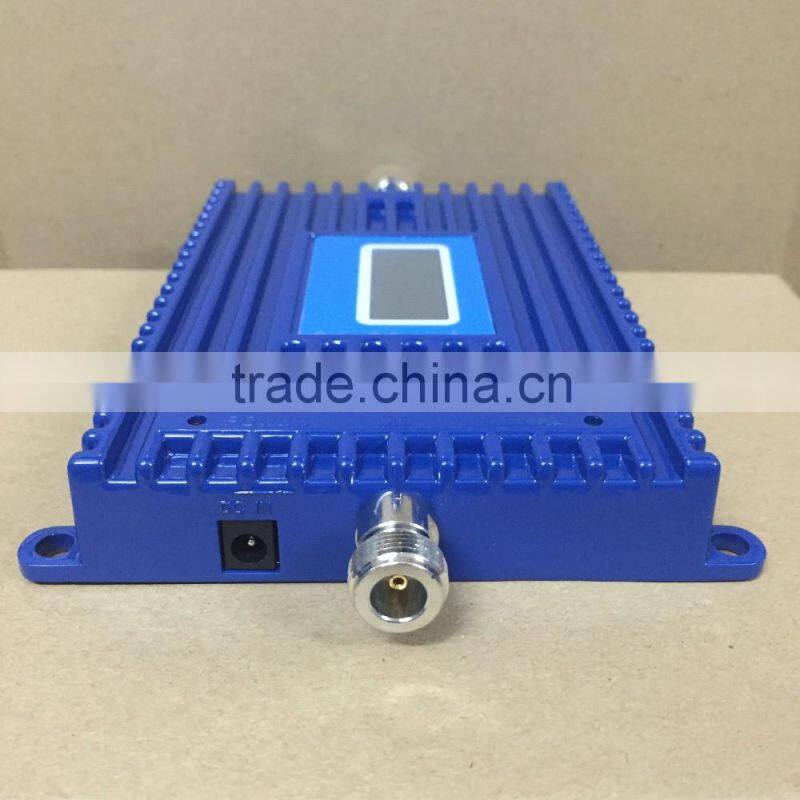

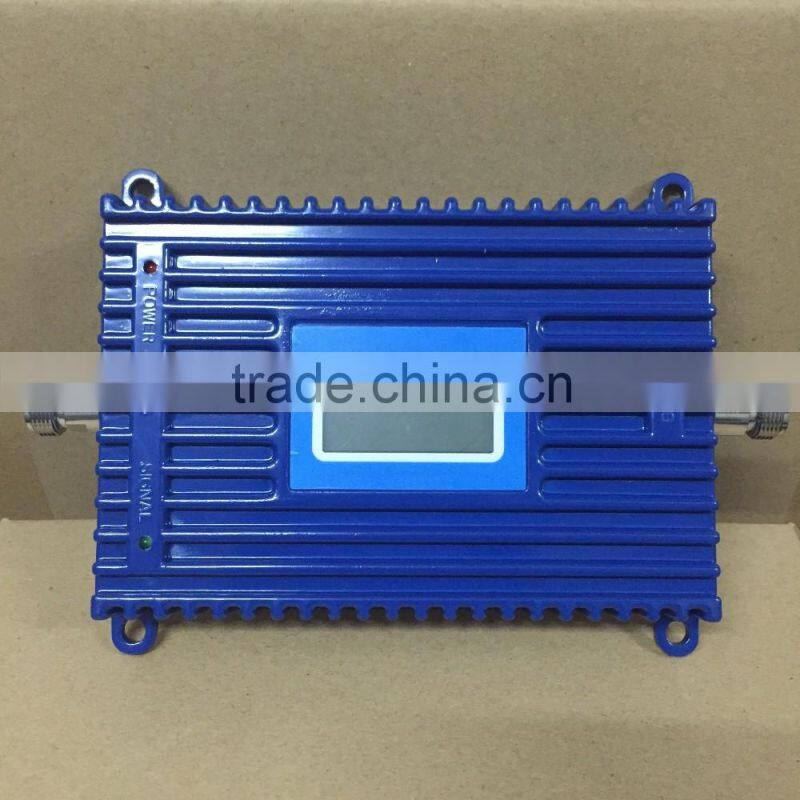

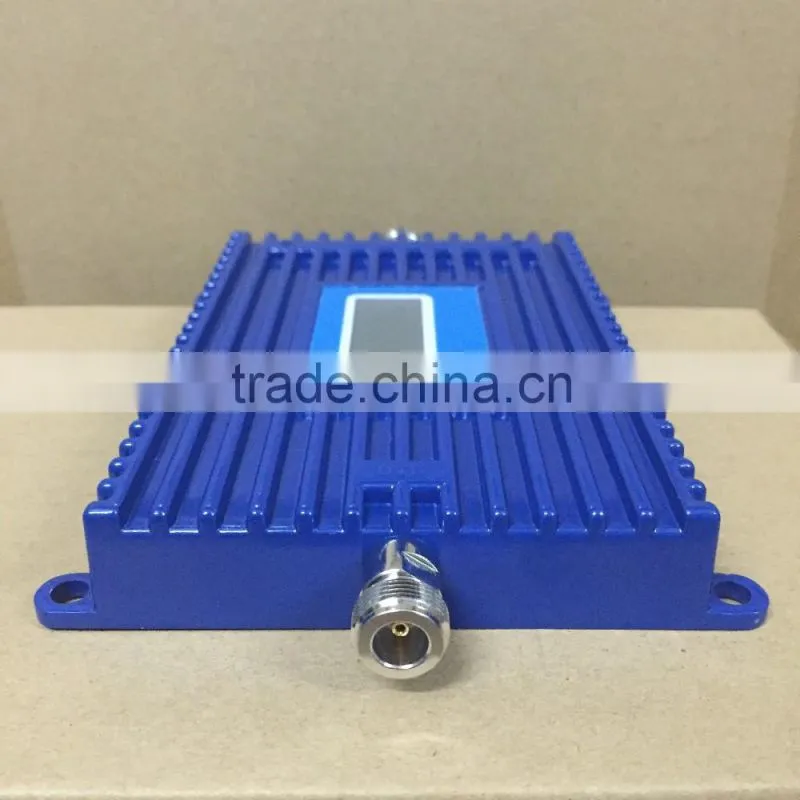

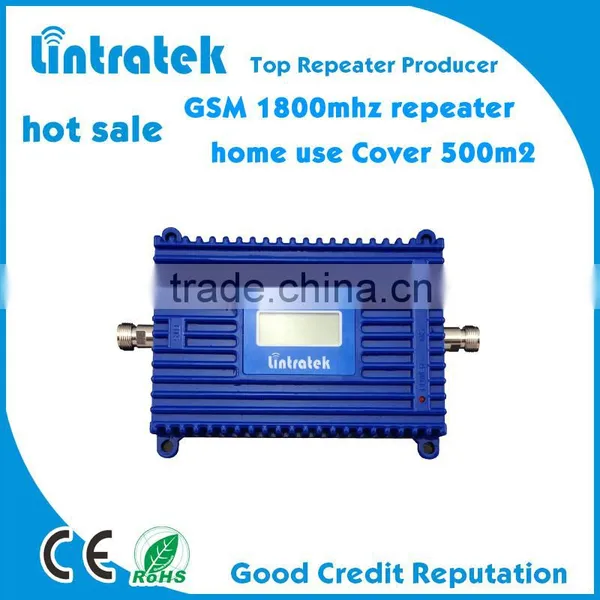

mobile phone signal booster for 4g signal booster with gsm 1800mhz mobile signal booster with LCD sceen home use signal repeater
Specification should care about :
Model No |

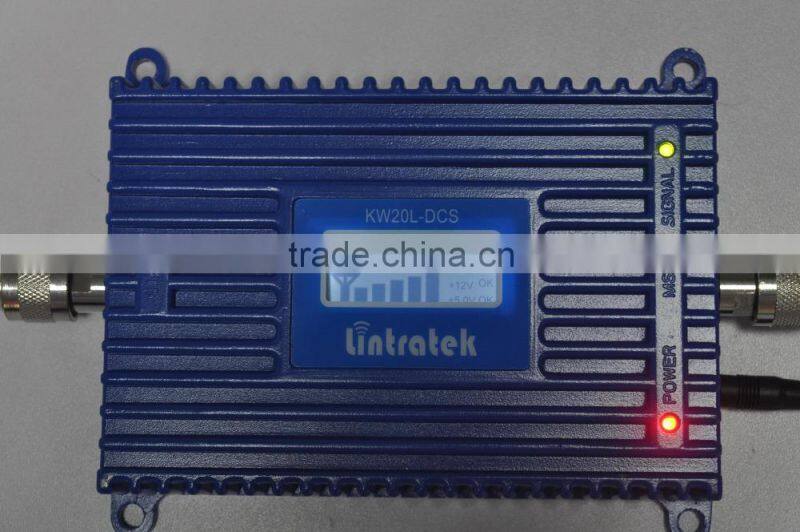

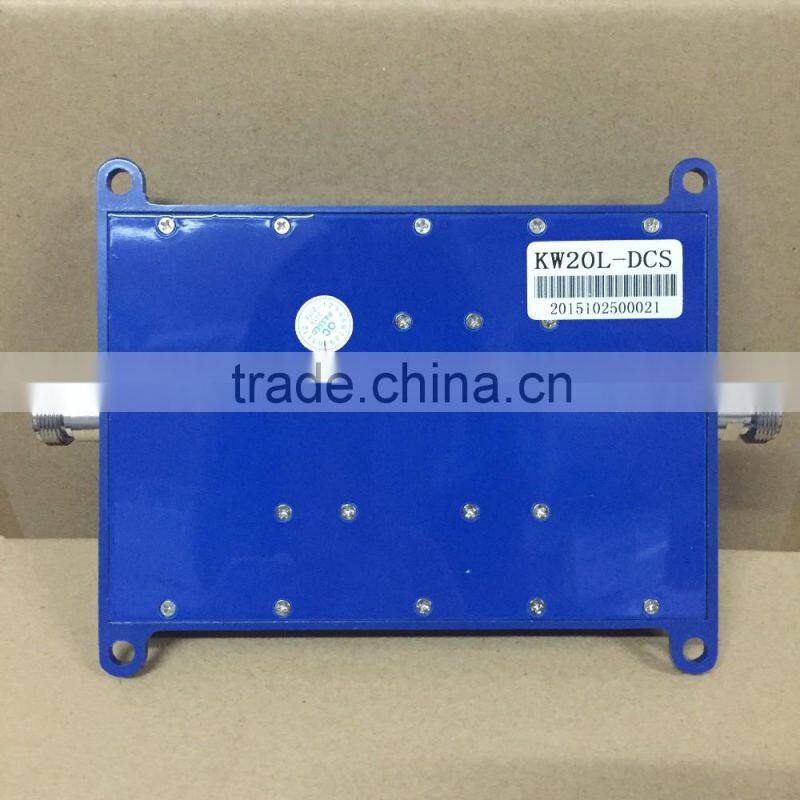

KW20L-DCS mobile signal booster |
||
Parameter data |
Uplink |
Downlink |
|
Frequency Range |
DCS |
1710-1785mhz |
1805-1880mhz |
Output Power |
20±2dBm |
20±2dBm |
|
Gain |
70 ±2 dB |
70±2dB |
|
Bandwidth |
75M |
||
Ripple in Band |
≤5dB |
||
Spurious Emission |
9KHz~1GHz |
≤ -36 dBm |
|
1GHz~12.75GHz |
≤ -30 dBm |
||
VSWR |
≤3 |
||
MTBF |
>50000 hours |
||
Power Supply |
AC:100~240V, 50/ 60Hz;DC:5V 1A |
||
Power Consumption |
< 5W |
||
Impedance |
50 ohm |
||
Mechanical Specification | |||
RF Connector |
N-Female N |
||
Dimensions (D*W*H ) |
140*95*30(mm) |
||
Net weight |
< 0.45Kg |
||
Packing size (D*W*H ) |
250*240*65(mm) |
||
Gross weight |
< 0.7Kg |
||
Installation Type |
Wall Installation |
||
Environment Conditions |
IP40 |
||
Humidity |
< 90% |
||
Operating Temperature |
-10°C ~ 55°C |
||
