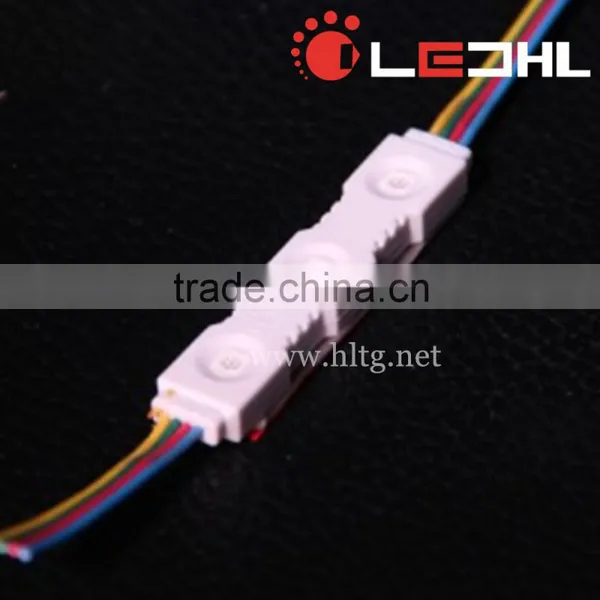

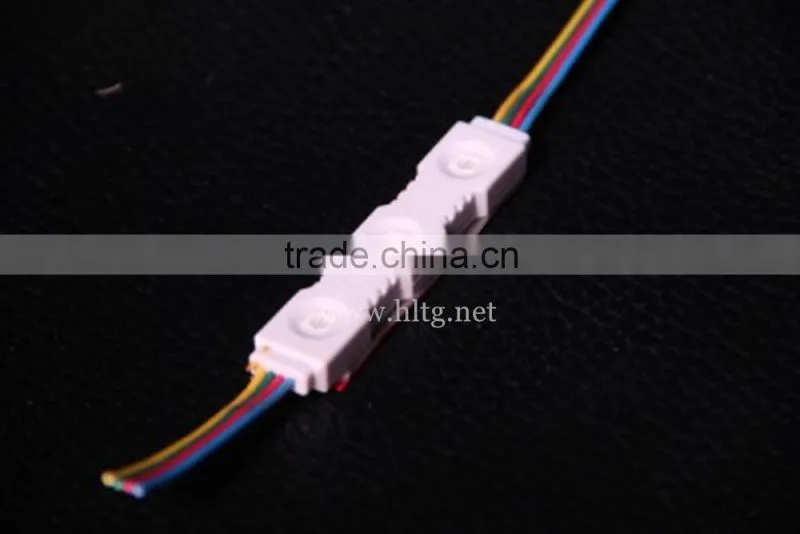

Help CenterInjection RGB LED Module 0.72W Shenzhen Factory Pixel Led Module DC12V 120 Degree for Back Light Sign
Related Products
-
Injection 3leds 5050 Led Module 12v Epistar Chip / Back Light Led Module With 120 Degree 5 Years WarrantyUS$ 0.37 - 0.37MOQ: 1000 Pieces -
Project LED Module 5630 Epistar Chip / High Brightness 4LEDs 5730 2W 200lm LED Light ModuleUS$ 0.45 - 0.45MOQ: 1000 Pieces
-
LED Module 5630 DC12V Constant Voltage Module Led Light 140lm IP65 Waterproof Use for Outdoor AdvertisingUS$ 0.39 - 0.39MOQ: 1000 Pieces
-
Injection Molding LED Module 12V 5050 0.72W 60lm With 5 Years Warranty LED Light ModuleUS$ 0.30 - 0.30MOQ: 1000 Pieces
-
Blue 4 LEDs SMD2835 Injection Molding LED Module Yellow Color With 2.4W 200lm 160 Degree Lens 5 Years WarrantyUS$ 0.43 - 0.43MOQ: 1000 Pieces
Product Introduction
(1) 0.24W/piece
(2) Use Taiwan SMD5050 original brand chipset
(3) Color: RGB
(4) Consumption: 0.72W
(5) DC12V input
(6) IP level: IP65
(7) 20pcs as a series
(8) Working temperature : -20~50 degree
(9) Packing : 100pcs / bag , 10bags / Carton
(10) Color: Warmwhite, White, Cool white,Red, Yellow, Green, Blue supported
(11) Offer ODM service and also the high brightness customrized strip for the project
(12) Easy installation : self adhersive
(13) Extended life : more than 50,000 hours
(14) Evironmental friendly : with CE / RoHS certificate, more than 60% more energy efficient than Neon
(15) Safe application : Low voltage DC12V, safe and stable, free maitenance
Product Specification
Model: HL-MC05RGB
LED Type: 3LEDs SMD5050 Epistar
LED Quantity: 3LEDs
Emitting Color: RGB
Input Voltage: DC12V
Beam Angle: 120°
IP Level: IP65
Warranty: 5 years
Certification: CE-RoHS
Electrial Characteristics: Current Dissipation: 60mA
Power Consumption: 0.72W
Standard quantity of a series: 20pcs/series
Working Input Voltage: DC12V
Construction: LED Source: 3xSMD5050 Epistar
PCB: FR-4 double-layered
Housing Material: AlGalnP
Lead Wire: AWG18
3M Adhesive tapes
Thermal: Working Temperature: -20°-50°C
Storage Temperature: -30°-60°C
Lumen Efficiency(lm): RGB
Paking Information: 3000pcs/ctn, 52x34x32cm, 18.64KG/ctn
Application: Large Scale channel letters
Flex faced cabinet illumination
Duplex signage light illumination
Signage and illuminationed advertising with depth 60-200mm
Product Details
RGB Model:

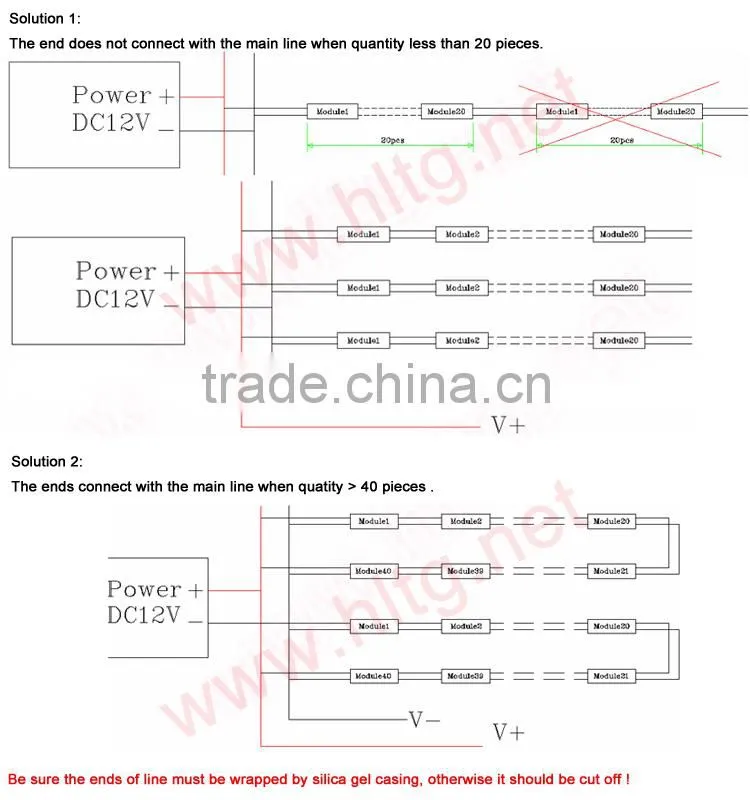

Installation:

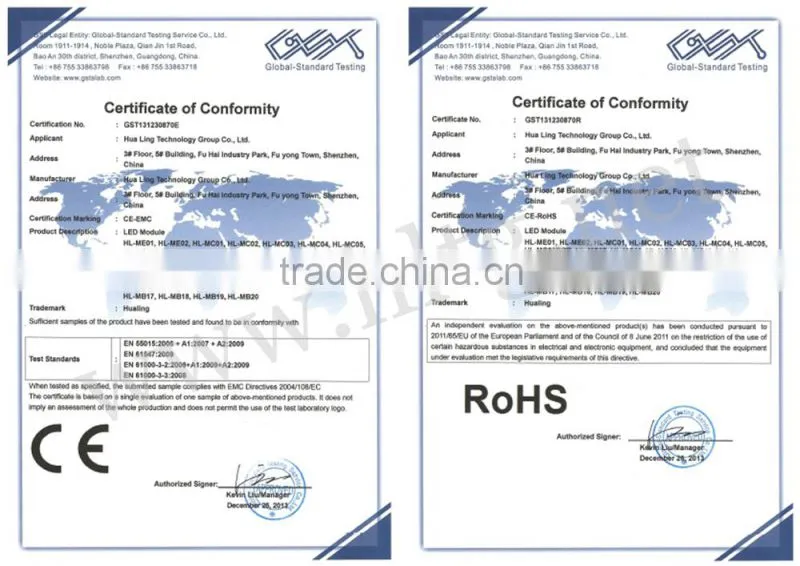

Certification:

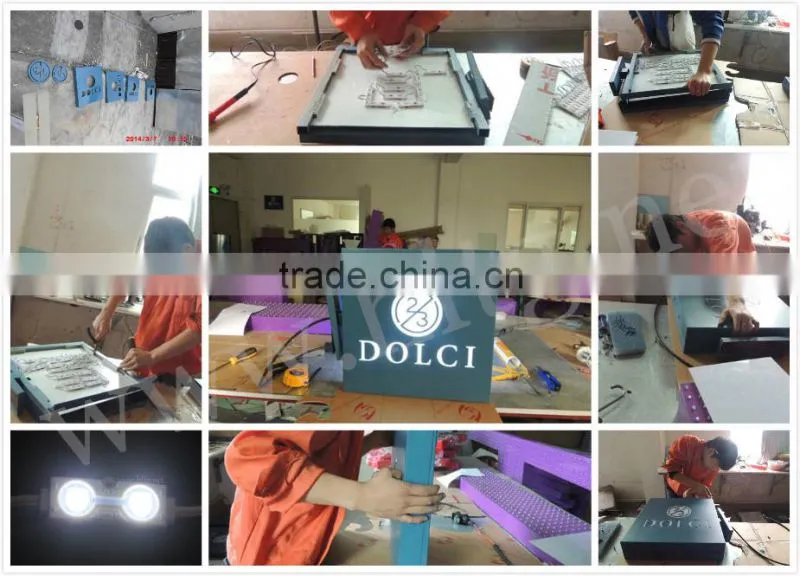

Application Project:
Company Profile:
