Injection 3leds 5050 Led Module 12v Epistar Chip / Back Light Led Module With 120 Degree 5 Years Warranty

Injection 3leds 5050 Led Module 12v Epistar Chip / Back Light Led Module With 120 Degree 5 Years Warranty thumbnail-1
Injection 3leds 5050 Led Module 12v Epistar Chip / Back Light Led Module With 120 Degree 5 Years Warranty thumbnail-2
Injection 3leds 5050 Led Module 12v Epistar Chip / Back Light Led Module With 120 Degree 5 Years Warranty thumbnail-3

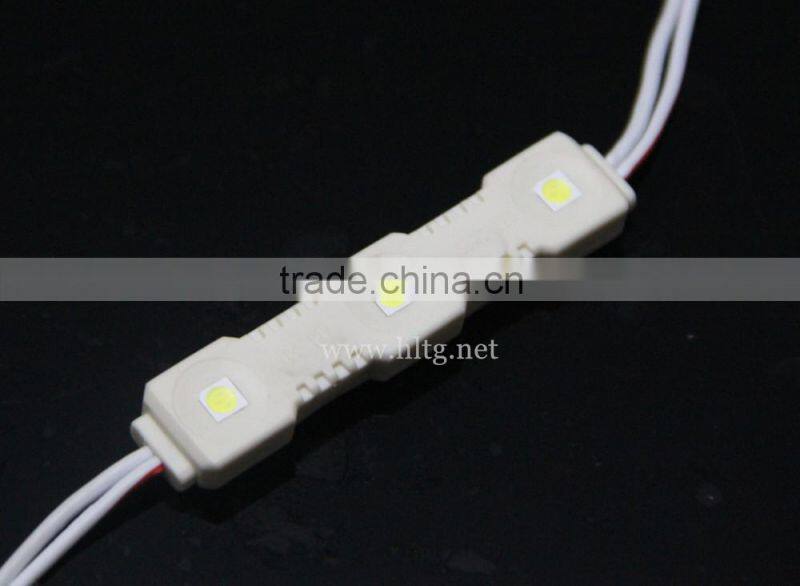

Injection 3leds 5050 Led Module 12v Epistar Chip / Back Light Led Module With 120 Degree 5 Years Warranty photo-1

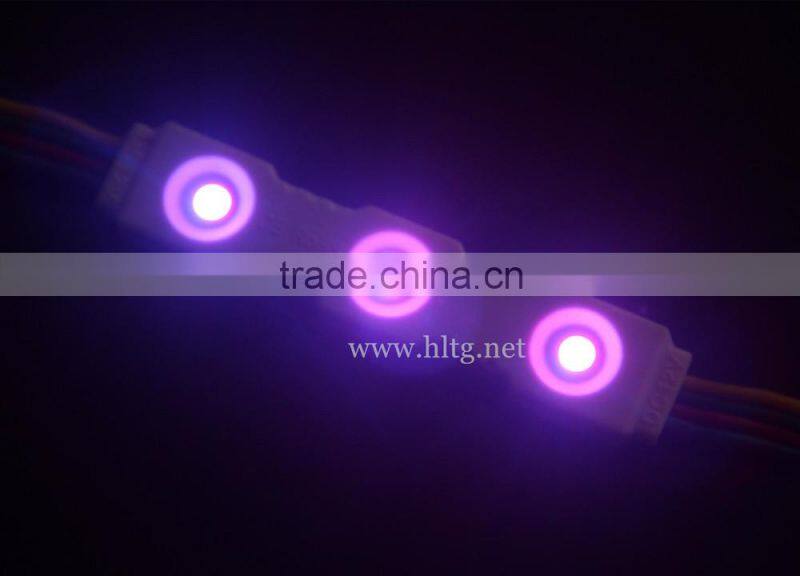

Injection 3leds 5050 Led Module 12v Epistar Chip / Back Light Led Module With 120 Degree 5 Years Warranty photo-2

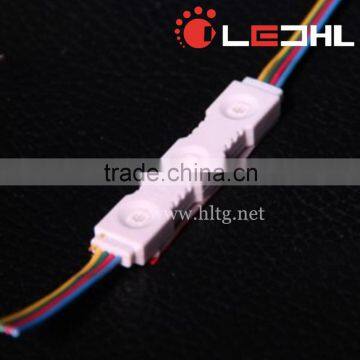

Injection 3leds 5050 Led Module 12v Epistar Chip / Back Light Led Module With 120 Degree 5 Years Warranty photo-3
US$ 0.37 - 0.37 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Model Number:
HL-MC05
Chip Material:
Other, ABS Injection
Emitting Color:
Cool White
Contact Supplier Request Quote Chat Now
Shenzhen Huayu Lighting Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number HL-MC05
Chip Material Other, ABS Injection
Emitting Color Cool White
Luminous Intensity 10000
Luminous Flux(lm) 60lm
Optical Attenuation(%) 1
Power Other, 0.72W
Power Dissipation 0.72w
Color Rendering Index(Ra) 80
Color Temperature 8000-9000K
Operating Temperature(℃) -20, 50
Storage Temperature(℃) -30, 80
Place of Origin Guangdong, China
Brand Name iledhl
Certification CE, CE

Product Introduction

(1)  0.24W/piece

(2)  Use Taiwan SMD5050 original brand chipset

(3)  Cool White: 8000-9000K

(4)  Consumption: 0.72W

(5)  DC12V input

(6)  IP level: IP65

(7)  20pcs as a series

(8)  Working temperature : -20~50 degree

(9)  Packing : 100pcs / bag , 10bags / Carton

(10) Color: Warmwhite, White, Cool white,Red, Yellow, Green, Blue supported

(11) Offer ODM service and also the high brightness customrized strip for the project

(12) Easy installation : self adhersive

(13) Extended life : more than 50,000 hours

(14) Evironmental friendly : with CE / RoHS certificate, more than 60% more energy efficient than Neon

(15) Safe application : Low voltage DC12V, safe and stable, free maitenance



Product Specification



Model:  HL-MC05

LED Type: 3LEDs SMD5050 Epistar

LED Quantity: 3LEDs

Emitting Color:  Warmwhite, White, Cool white,Red, Yellow, Green, Blue

Input Voltage: DC12V

Beam Angle: 120°

IP Level: IP65

Warranty: 5 years

Certification: CE-RoHS





Electrial Characteristics:    Current Dissipation: 60mA

                                                   Power Consumption: 0.72W

                                                   Standard quantity of a series: 20pcs/series

                                                   Working Input Voltage: DC12V



Construction:    LED Source: 3xSMD5050 Epistar

                              PCB: FR-4 double-layered

                              Housing Material: AlGalnP

                              Lead Wire: AWG18

                              3M Adhesive tapes



Thermal:   Working Temperature: -20°-50°C

                    Storage Temperature: -30°-60°C



Lumen Efficiency(lm): Red -- 18nm ( 620-625nm )

                                           Green -- 32lm (520-530nm)

                                            Blue -- 24lm (465-470nm)

                                            Yellow -- 18lm ( 585-595nm )

                                            Warmwhite -- 60lm (3000-3200K)

                                            White -- 60lm (6000-6500K)

                                            Coolwhite -- 60lm (8000-9000K)



Paking Information:  3000pcs/ctn, 52x34x32cm, 18.64KG/ctn



Application:     Large Scale channel letters

                            Flex faced cabinet illumination

                            Duplex signage light illumination

                            Signage and illuminationed advertising with depth 60-200mm





Product Details

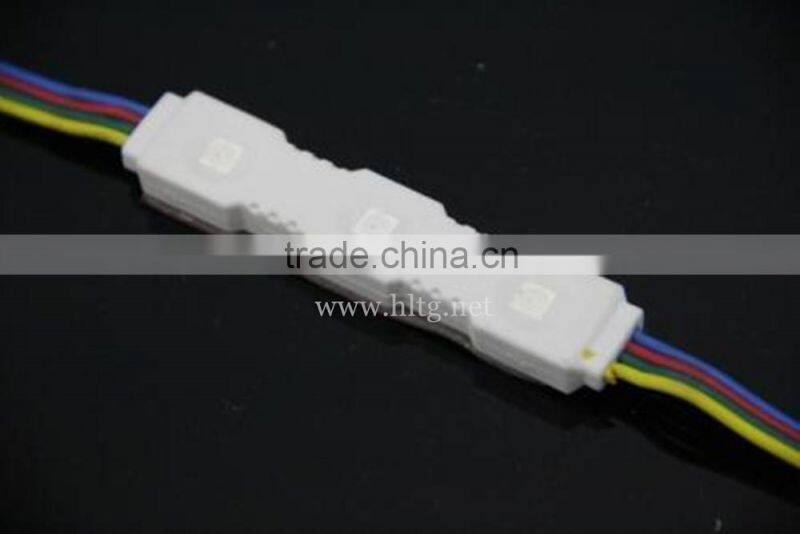

RGB Model:



















Installation:



Certification:





Application Project:







Company Profile:





Hualing Technology Group Co., Ltd, which was founded in March, 2006, located in Guangming New Area, Shenzhen, with convenient traffic and elegant environment.

We are always giving the best support with customer’s requirement and work hard to keep growing.

Business Type: Manufacturer
Main Products:Industrial LED Lighting – LED Street Light, LED Flood Light, LED High Bay Light, LED Tunnel Light, etc.
Commercial LED Lighting – LED Panel Light, LED Tube, LED Spot Light, LED Bulb, LED Ceiling Light, LED Down Light, etc.
Advertising LED Lighting – LED Module, LED Strip, LED Bar, LED Power supply etc.
Location: Shenzhen, Guangdong, China (Mainland)
Year Established:2006
Start Exporting: 2011
Number Of Employees: 51 - 100 People
Factory Area: About 2000 m³
Total Annual Sales Volume: US$2.5 Million - US$5 Million
Main Markets: South America, Eastern Europe, Western Europe, Southeast Asia, Southern Europe
