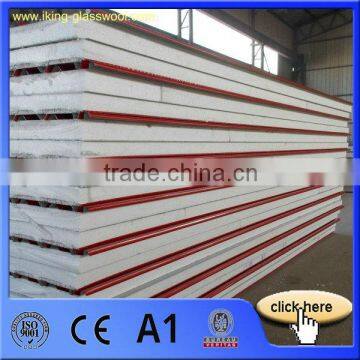

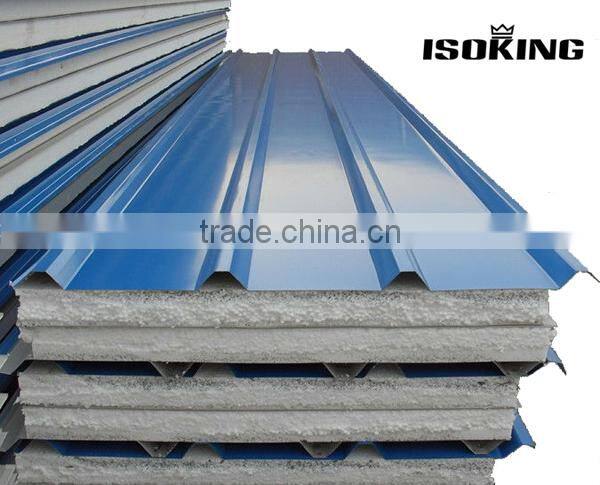

Building Insulation Eps Sandwich Wall Panel:
Related Products:
| | | ||
| | | ||
EPS sandwich panel is a proven construction material well-suited to the extremes. It is a cost-effective, lightweight construction material with excellent insulation properties.
Specification of EPS sandwich panels:
Metal Thickness | 0.20~0.80mm |
Core Thickness | 50/75/100/200mm |
EPS density | 8-20kg/m3 |
Width | Wall sandwich panel:950mm |
Roof sandwich panel: 960mm | |
Length | according to client's request |
Physical and Mechanical Properties:
Item | Unit | Index of Properties | ||
Ⅰ | Ⅱ | Ⅲ | ||
Apparent Density≤ | Kg/m3 | 15.0 | 20.0 | 30.0 |
Compressive Strength(Compressive stress under 10% deformation) ≥ | KPa | 60 | 100 | 150 |
Thermal Coefficient≤ | w/(m.k) | 0.041 | 0.041 | 0.041 |
Water Vapor Permeability Coefficient≤ | Ng/Pa.m.s | 9.5 | 4.5 | 4.5 |
Water-intake Tate≤ | % | 6 | 4 | 2 |
Oxygen Index≥ | % | 30 | 30 | 30 |

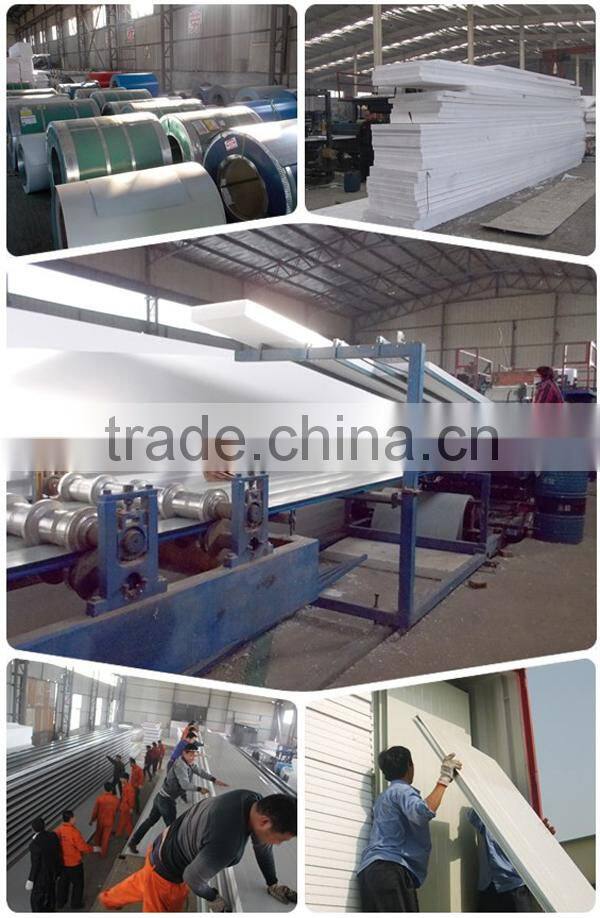

Production Lines:
Advantage:
♦ High load bearing capacity at low weight
♦ Effective and durable thermal insulation
♦ Absolute water and vapour barrier
♦ Air-tightness for controlled environments
♦ Long life, low maintenance
♦ Lightweight, fast and economic construction
♦ Hygienic food grade finish
♦ Most cost effective insulation material available
Application:
1.At Construction Site: the sandwich panels are used to install into the prefab house as the Office, Dormitory,etc;
2. Factory: the sandwich panel are used into build the plant to manufacture;
3. Carport, transportation van board to keep temperature, etc
1) 7*24hours service
2) Reply email in 10hours
3)10 production lines for short delivery time
4) Support visit factory
Why choose us?
Our high performance-price ratio products and best service can bring you:
1) Good margin for your project because of our low price.
2) Good reputation for your company because the high quality of our products.
3) Continuous orders from your clients because of their satisfactions.
Welcome to contact with us, the best price and service will be offered to you forever!
