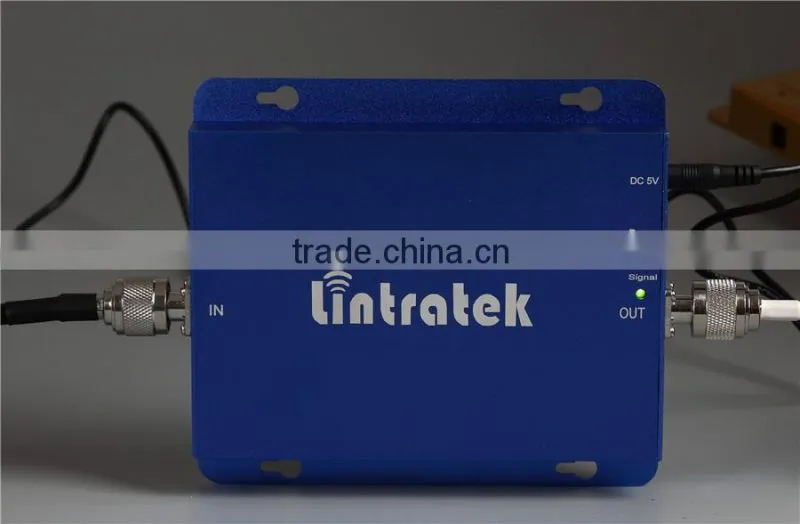

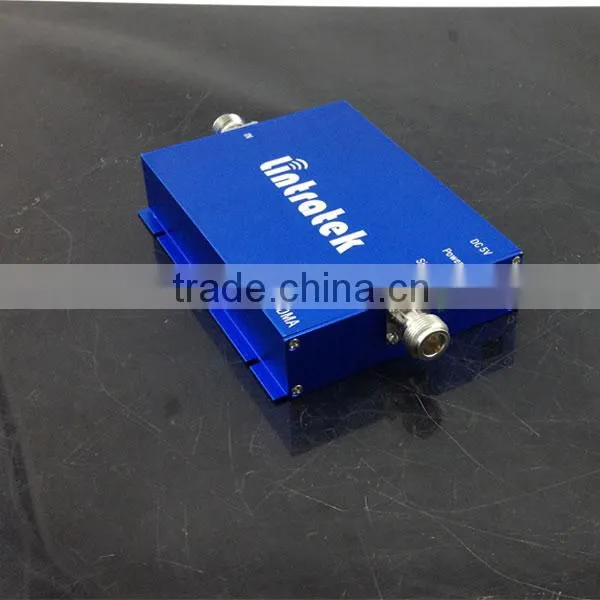

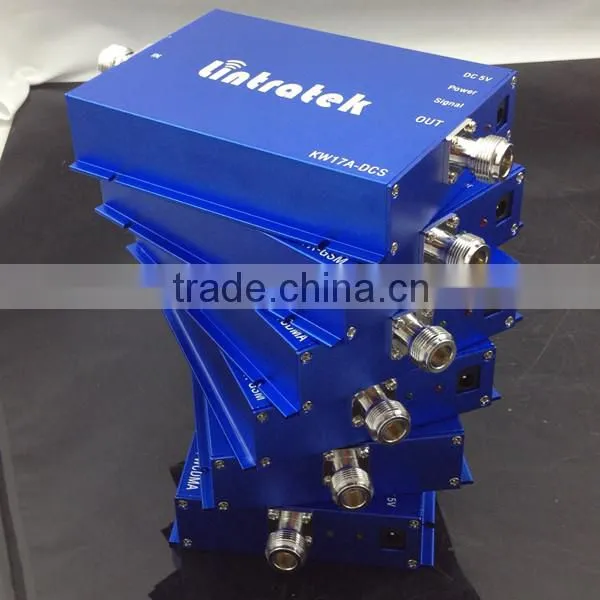

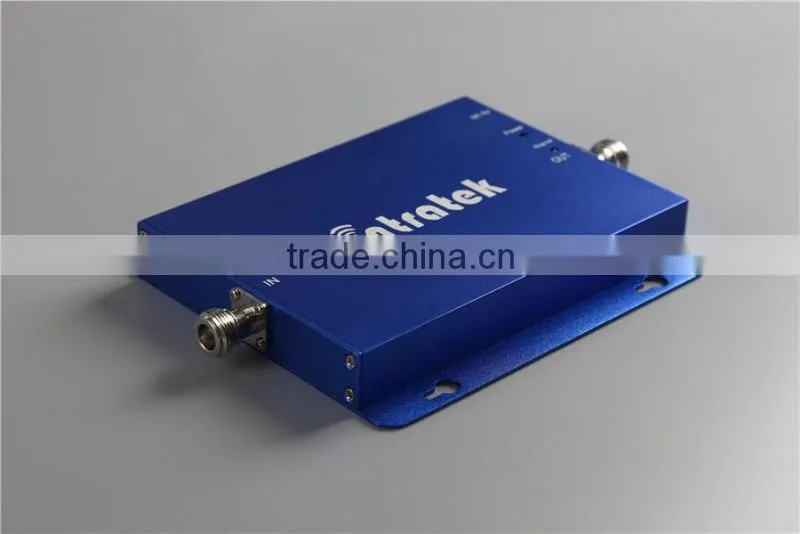

100~300sqm coverage 2100mhz 3g signal repeater cell phone signal amplifier
WHY CHOOSE LINTRATEK?
Lintratek come, to save you from the bad signal!!!
· Excellent Quality
· Exquisite appearance
· High Technology
· Considerate service
Specification for Signal Repeater
| Specifications | |||
| Model No | KW17A-WCDMA 2100mhz 3g signal repeater | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | 1920~1980MHz | 2110~2170MHz |
|
| Output Power | 17±2dBm | 17±2dBm | |
| Gain | 65±2dB | 65 ±2dB | |
| Bandwidth | Wide Band | ||
| Ripple in Band | ≤5dB | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Noise Figure @ max. gain | ≤ 6 dB | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 2A | ||
| Power Comsumption | < 5W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female N | ||
| Cooling | Heatsink Convection cooling | ||
| Dimensions (D x W xH ) | 135*105*26 | ||
| Weight | < 1.2Kg | ||
| Installation Type | Wall Installation 2100mhz 3g signal repeater | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10°C ~ 55°C | ||

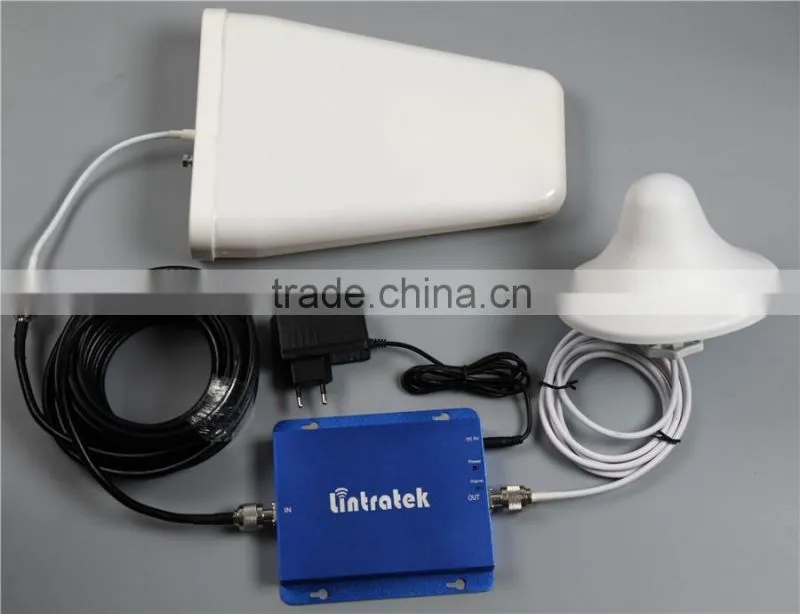

Gsm repeater Full Sets
- · 1 - Outdoor antenna like YAGI antenna or panel antenna
- · 2 - Indoor Omni ceiling antenna
- · 3 – Power adapter
- · 5 - User manual
-
· 6 - 2100mhz 3g signal repeater
- · 7 - 10 meters outdoor cable and 2 meter indoor cable
Signal Repeater Installation (Take KW20L-GD repeater as an example)
Trade process:
After - Sales Service
We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our gsm repeater power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
