Specification:
- 2100MHz signal booster
- Coverage: 300~800sqm
- Reducing drop/off calls.

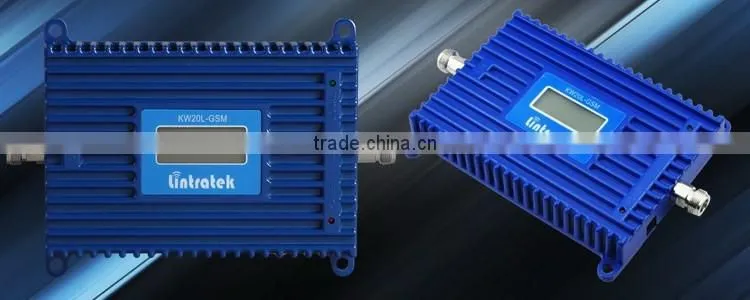

Foshan Lintratek 20dBm/70dB 2100mhz 3g signal repeater
LINTRATEK
· Excellent Quality
· Exquisite appearance
· High Technology
· Considerate service
Specification for Signal Repeater
| Specification | |||
| From: Vita Wong Tel/Whatsapp: +8613229223812 | |||
| Parameter data | Uplink | Downlink | |
| Frequency Range | CDMA & GSM850 | 824~849 MHz | 869 ~ 894 MHz |
| GSM | 890~915 MHz | 935 ~ 960 MHz | |
| EGSM | 880~915 MHz | 925 ~ 960 MHz | |
| DCS | 1710~1785 MHz | 1805 ~ 1880 MHz | |
| PCS | 1850~1910 MHz | 1930 ~ 1990 MHz | |
| AWS | 1710~1755 MHz | 2110 ~ 2155 MHz | |
| WCDMA | 1920~1980 MHz | 2110 ~ 2170 MHz | |
| Output Power | 15 ±2dBm | 20±2dBm | |
| Gain | 65 ±2 dB | 70±2dB | |
| Bandwidth | 25M/25M/35M/75M/60M/45M/60M | ||
| Automatic Gain Control | ≥20dB | ||
| Ripple in Band | CDMA≤5dB,GSM≤5dB,EGSM≤4.5dB,DCS≤6dB, PCS≤5dB,AWS≤6dB,WCDMA≤5dB, |
||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 1A | ||
| Power Comsumption | < 3W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Dimensions (D*W*H ) | 200*110*25(mm) | ||
| Cooling | Heatsink Convection cooling | ||
| Net weight | < 1Kg | ||
| Packing size (D*W*H ) | 250*240*65(mm) | ||
| Gross weight | < 1.2Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ 55℃ | ||

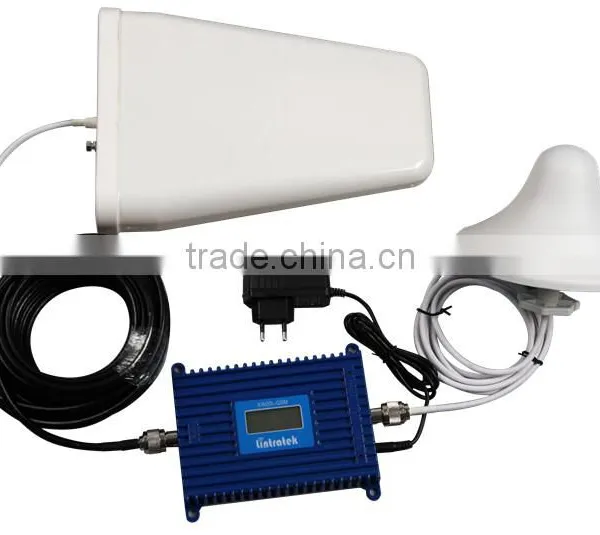

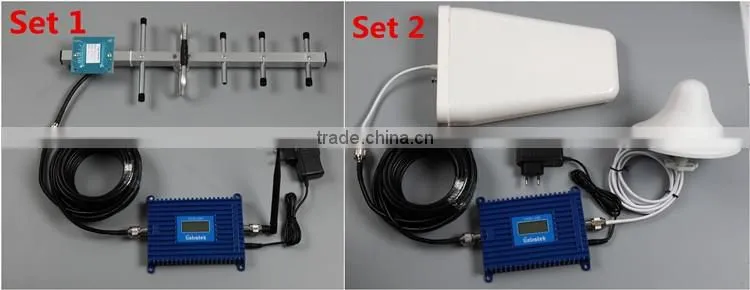

Signal Booster Full Sets
- · 1 - Outdoor antenna like YAGI antenna or panel antenna
- · 2 - Indoor Omni ceiling antenna
- · 3 – Power adapter
- · 5 - User manual
- · 6 - Cell phone repeater
- · 7 - 10 meters outdoor cable and 2 meter indoor cable
Foshan Lintratek 20dBm/70dB 2100mhz 3g signal repeater
Signal Repeater Installation
Foshan Lintratek 20dBm/70dB 2100mhz 3g signal repeater
After - Sales Service
We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
Foshan Lintratek 20dBm/70dB 2100mhz 3g signal repeater
Click to View more Details
850/900/1800/2100/1700/1900/LTE is avaiable
