Window Closer CLN-04 Original Car CANBUS OBD for CHEVROLET, BUICK, CADILLAC

Window Closer CLN-04 Original Car CANBUS OBD for CHEVROLET, BUICK, CADILLAC photo-1
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Battlesnake
Model Number:
CLN-04
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Battlesnake
Model Number CLN-04

Specification:

 Window closer CLN-04 original car CANBUS OBD for CHEVROLET, BUICK, CADILLAC



For CHEVROLET Cruze,New Captiva, BUICK Lacross,Regal, GT,GL8 ,CADILLAC SRX 2012 original cars.



Window closer CLN-04 original car CANBUS OBD for CHEVROLET, BUICK, CADILLAC

Smallest CANBUS OBD original car window closer,  can be controlled the car windows close and open (up and down) by original car remote controllers.



Window closer CLN-04 original car CANBUS OBD for CHEVROLET, BUICK, CADILLAC




Window closer CLN-04 original car CANBUS OBD for CHEVROLET, BUICK, CADILLAC



1.Adopted USA CAN-BUS car dedicated micro computer chip
2. Get the data communication from the CAN net of the car,stable performance
3. Connect with the original OBD of the car, it requires around 1 min. to complete the installation

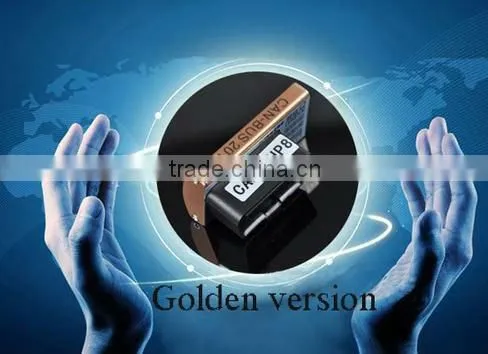

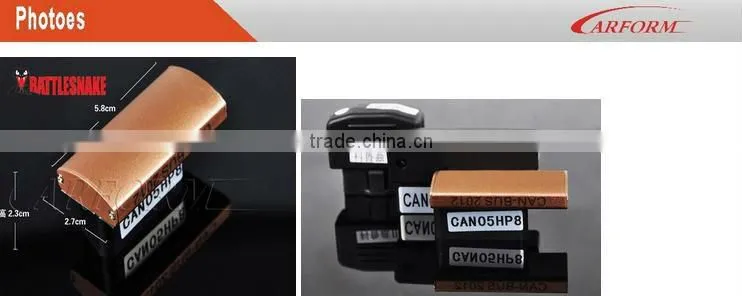

4. Golden color, smallest size





Window closer CLN-04 original car CANBUS OBD for CHEVROLET, BUICK, CADILLAC





Window closer CLN-04 original car CANBUS OBD for CHEVROLET, BUICK, CADILLAC



Technology Parameters of Canbus OBD car window closer:



Operating voltage: 13V-11V
Static current :  8mA
Operating current: 6A
Protection current: 9.5A
Protection time: 6 seconds
Min trigger voltage for central locking & ACC:  9V
Operating temperature: +80°c  to -30°c


Technology Parameters of power window kits:
Operating voltage: 15V-11V
Operating Current:12A
Static current :  3mA
Operating temperature: +80°c  to -30°c



Window closer CLN-04 original car CANBUS OBD for CHEVROLET, BUICK, CADILLAC

Window closer CLN-04 original car CANBUS OBD for CHEVROLET, BUICK, CADILLAC

Window closer CLN-04 original car CANBUS OBD for CHEVROLET, BUICK, CADILLAC

1, 3---7 working days by express if your order is less than 10pcs. If your order more than 100pcs, it takes 7-10 days to prepare well, if the order QTY is more than 500sets, it takes 20-35 days to finish the production, for more QTY, pls check with our sales about the exact delivery time before sent the payment to us.
2-By China Post Air Mail ,usually need 30-50 working days to arrive at buyer’s local post office.



Window closer CLN-04 original car CANBUS OBD for CHEVROLET, BUICK, CADILLAC





Window closer CLN-04 original car CANBUS OBD for CHEVROLET, BUICK, CADILLAC



Window closer CLN-04 original car CANBUS OBD for CHEVROLET, BUICK, CADILLAC

12 months Manufacturer's Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty.

Window closer CLN-04 original car CANBUS OBD for CHEVROLET, BUICK, CADILLAC



 Window closer CLN-04 original car CANBUS OBD for CHEVROLET, BUICK, CADILLAC
