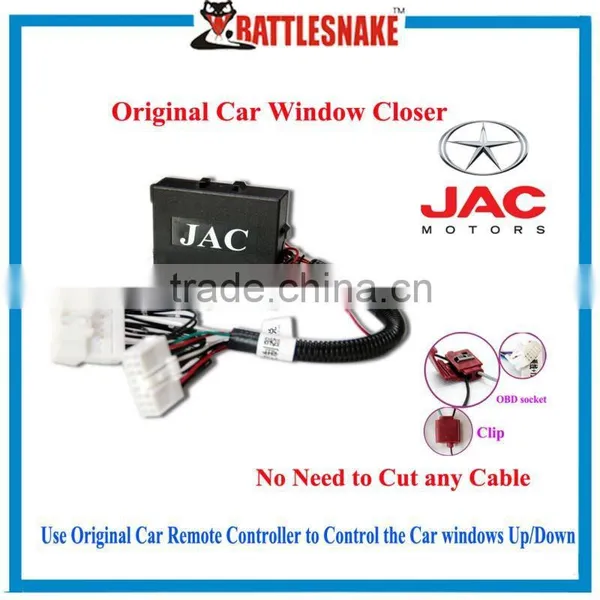

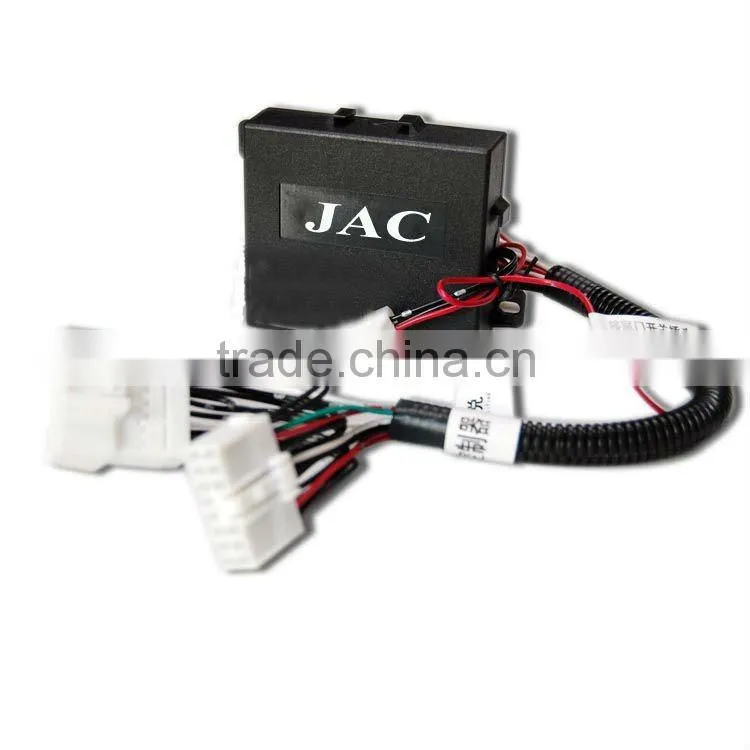

Original JAC car auto power window closer Tongyue Rs Refine
JAC original window closer system with 2 different versions(As per different function):
| Basic model | When press the lock button of the original car remote, all windows will be closed. |
| Deluxe model | 1-When press the lock button of the original car remote, all windows will be closed. 2-Remote to close and open the windows. 3-All windows support the button one time press to close or open the windows. |
Photoes:

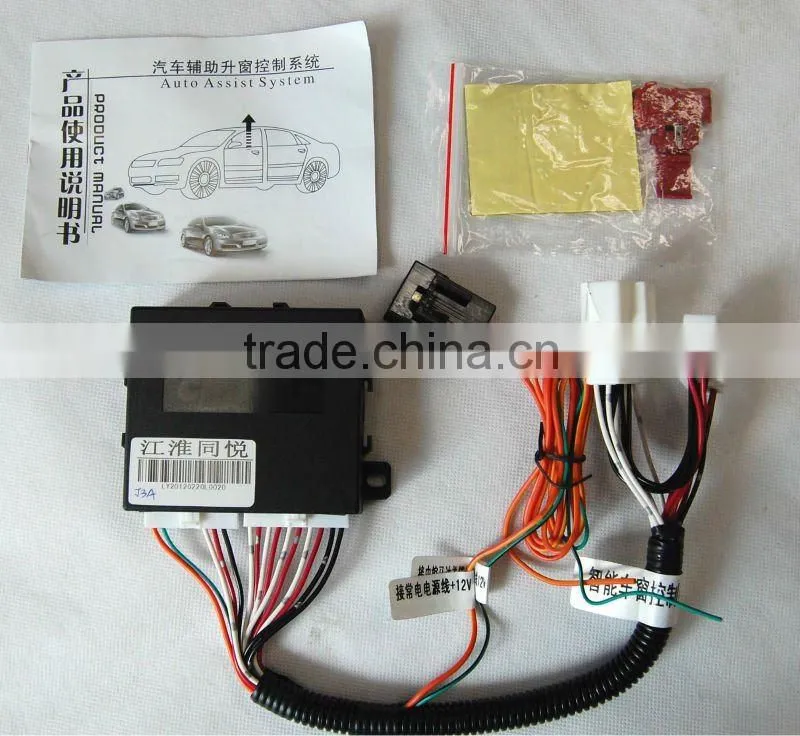

JAC original window closer system with the following items(As per the car type):
| Item No. | Car type | Basic Model | Deluxe Mode | Need to connect the wire (for basic model) | Need to connect the wire (for Deluxe model) |
| CF-WJ81 | JAC old Tongyue,Tongyue RS made in China | Yes | Yes | Need to connect with 2 wire | Need to connect with 3 wires |
| CF-WJ82 | JAC New Tongyue(J3A),Tongyue RS(J3B) made in China | Yes | Yes | Need to connect with 2 wire | Need to connect with 3 wires |
| CF-WJ83 | JAC Heyue(J5),Heyue RS(J6) made in China | Yes | Yes | Need to connect with 2 wire | Need to connect with 3 wires |
| CF-WJ84 | JAC new REFINE | Yes | Yes | Need to connect with 2 wires | Need to connect with 3 wires |
| CF-WJ85 | JAC old REFINE | Yes | Yes | Need to connect with 2 wires | Need to connect with 3 wires |
Advantages:
| Original Car Window Closer |
| Compatible with the original car remotes,press original car remote, four windows can be closed |
| With the original car's CAN data, can be controlled by the original car's CANBUS network, working reliably |
| OBD socket plug and play to the original car, or use some clip to connect the original car cable. No need to cut! |
| Easy for installation, can save 90% time. |
| Jpanese standard cables specialized for the original car manufacture required, High Quality |
VS
| Universal Car Window Closer |
| Use the aftermarket car alarm remote controller |
| Controlled by the relays electric output, short working life, easier destroy the car's circuit. |
| Need to cut the orginal cars cable and connect them one by one |
| Take time to install it |
| Chinese Standard cables. Not suit for original car maufacture required. |
1-No need to cut any wire, just plug the above sockets are ok!
2-Need to connect the power cable by Clips.
Specifications:
Technology Parameters of Original Car Window Closer
| 1 | Operating Voltage | 13V-11V | 3 | Operating Current | 6A |
| 2 | Static Current | 8mA | 4 | Protecting Current | 9.5mA |
| 6 | Acc lowest voltage | 9V | 5 | Protecting time | 6secs |
Technology Parameters of Power Windows
| 1 | Operating Voltage | 15V-11V | 3 | Operating Current | 12A |
| 2 | Static Current | 3mA | 4 | Application temperature | +80 to -20 |
Functions:
This is a new upgrade car window closerwith the original fittings, compatible with the original car's CANBUS data, can be finished the installation in 20 mins. because it get the original car's socket, keep all function as original car's alarm features, can be used the remote controller of the original car.
| 1 | Compatible with the original car's CANBUS communication data, control the car window close. |
| 2 | Use Original Car Remote Control to close the windows . |
Packing details:
| size | quantity | Weight | |
| color box | 17*12*6.5cm | 1pcs | 0.5kgs |
| carton | 35.5*25.5*34cm | 20pcs | 11kgs |
| 20GP container | 28CBM(909cartons) | 18180pcs | 9999kgs |
