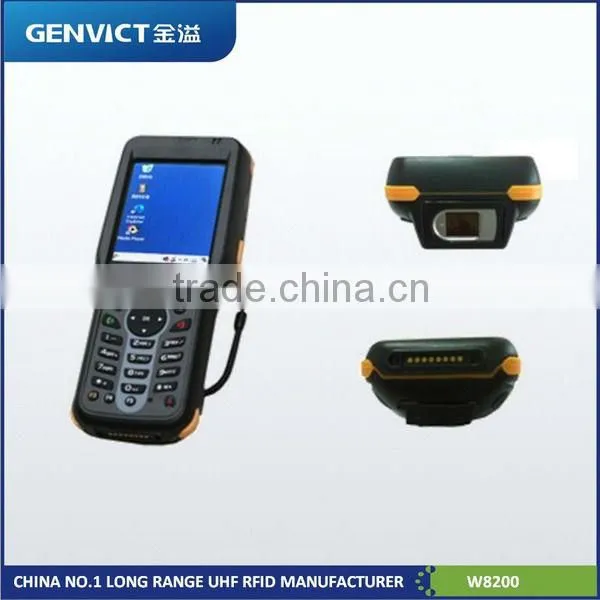

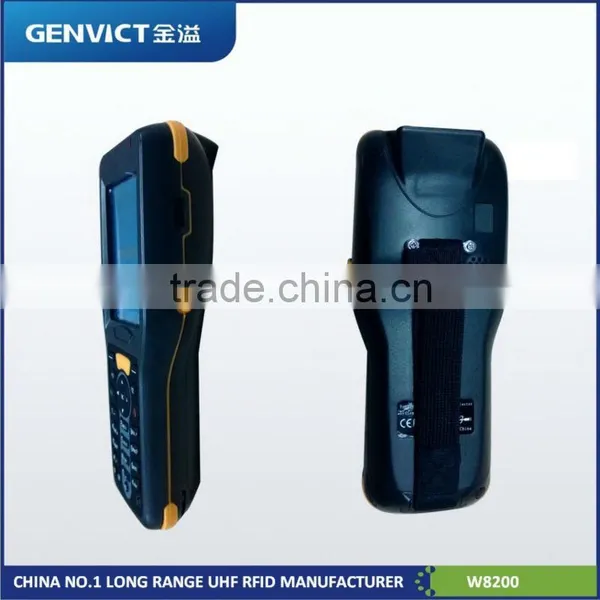

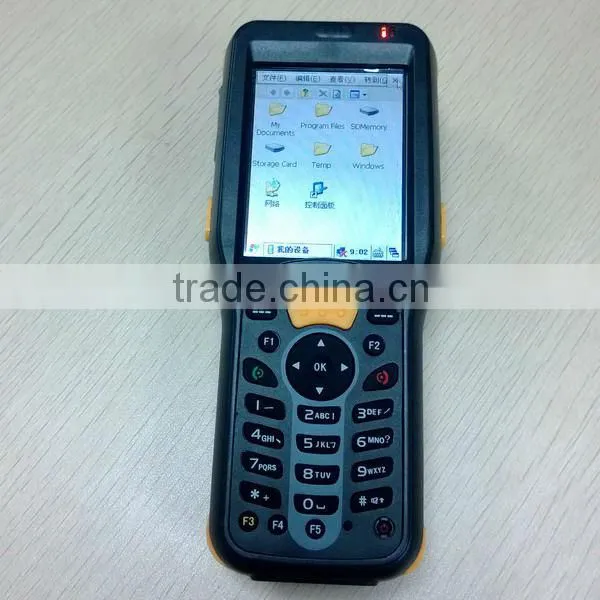

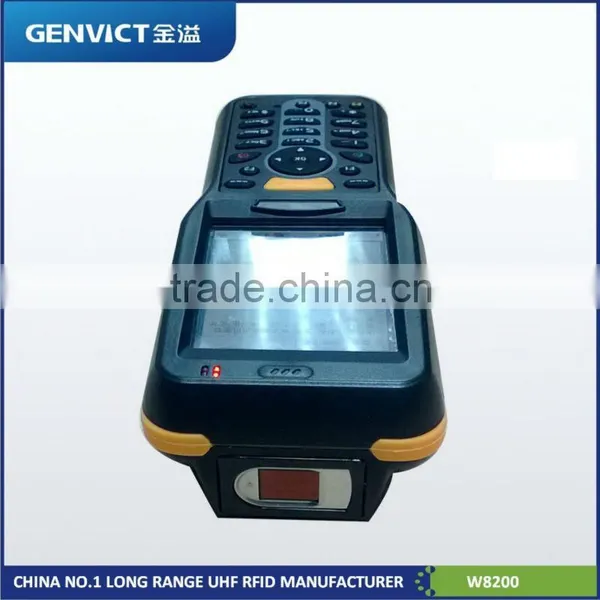

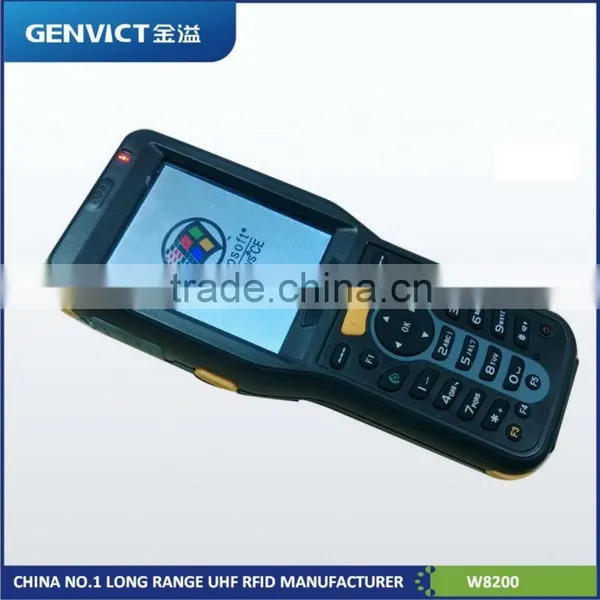

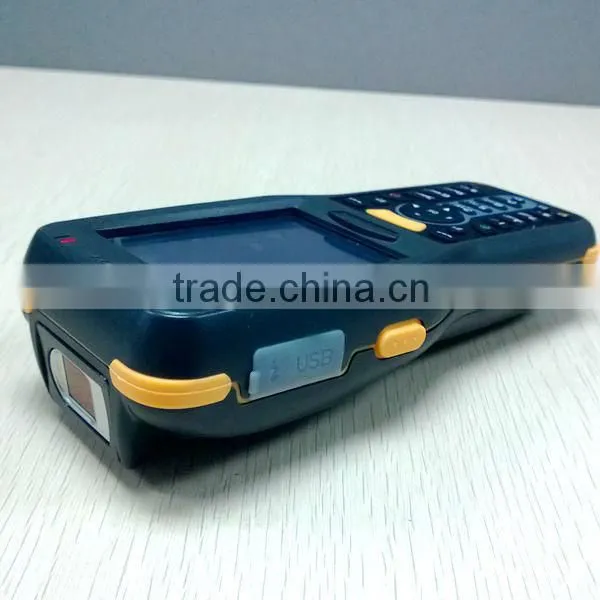

Inductive Fingerprint Scanner RFID Handheld reader

Specifications

Inductive Fingerprint Handheld Scanner
-HF/UHF bulit in,Win CE6.0,IP54 rugged
-FAR<0.001%, Fast speed
-Small and very smart

Inductive Fingerprint Scanner RFID Handheld reader



Introduction & feature:

• Completely independent R&D, self-owned brand Industrial handheld terminal
• Windows CE 6.0 operation system.
• Main functions: Fingerprint scanner, RFID (HF/UHF) WIFI, Bluetooth, GPRS, GPS,  1D  barcode scanner supported or optional
• Biometric identification:   FAR<0.0001% inductive fingerprinter scanner, high speed and precision
• Small and smart appearance design, easy to be operation for long time

China No.1 UHF RFID long Range RFID manufacturer!!!



Application:

• Traffic (Express Way, Parking Lot): ETC (Electronic Toll Collection) , Vehicle Checking, Management
•  Retail (Sales Floor; POS; backroom): Inventory/cycle counting, Automatic replenishment, Receiving/shrink control, Item finding
• Enterprise (Business offices/carpeted spaces), Asset/IT management, File and document tracking, Item finding
• Healthcare(Hospitals; clinics), Asset management (for high value critical assets), Patient tracking,, Item finding
• Manufacturing / Warehousing(Production line; Warehouse aisles and loading docks)
• Logistic / Supply Chain Express; Container tracking Inventory/cycle counting Receiving/shrink control Item finding
• Bank security

Chinese the Best RFID high-tech production equipments!!!







We have very strict inspection process!!!!







Specification:

System
Operation System	Windows CE 6.0
CPU	ARM11processor, dominant frequency 667MHz
Memory Capacity	128MB DDR SDRAM,256MB ROM
Extended Memory	2G/4G/8G/16G/32G MICRO SD
LCD Screen
Size	3.2"
Type	TFT LCD 240*320
LED:	Three-color LED Status
Loudspeaker:	Could be intruded (built-in)
Fingerprint Collection
Sensor Type:	Inductive
Registration time:	<3S
False Reject Rate:	FRR<0.1%
False Accept Rate:	FAR<0.001%
UHF RFID optional
Protocol:	ISO18000-6C/EPC C1Gen2
Frequency:	USA 902-928MHz
Reading Distance:	0-1m
HF RFID optional
Protocol:	ISO18000-6C/EPC C1Gen2 ISO14443/ISO15693
Frequency:	13.56MHz
Reading Distance:	0-10cm
1D Barcode optional
Identify mode:	Laser Scan
Identify depth field:	45mm-850mm
	1D:Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,China post 25,interteaved 2 of 5,ISBN/ISSN.Code93,etc
GPS Location optional
Cold start time:	Within 45 seconds
Location precision:	Within 10 meters
Fingerprint Collection
Sensor Type:	Inductive
Registration time:	<3S
False Reject Rate:	FRR<0.1%
False Accept Rate:	FAR<0.001%
Wi-Fi Communication built-in
Protocol	IEEE 802.11b/g
Distance	100m indoor/300m outdoor
Receiver Sensitivity	-75dBm
Transmitting Power	within 100mW
GPRS optional
GSM Bands	900/1900 MHz
Interface
External port	USB 2.0
Battery parameter
Capacity	3.7V 3000mAh li-polymer battery
Operational environment
Working Temperature	-20 - +50°C
Storage Temperature	-20 - +70°C
Relative Humidity	10%-90% RH  no condensing
Protection Grade	IP54
Physical parameter
Size	180*75*38/43mm
Weight	300 g



Most Professional Technology Support Team 20persons X 8hrs each working day for you!!!

Our Chief engineer often directly serve you for development.



If you still have any RFID application questions, email or call Lucky now. I will give you best answer.
