Specifications

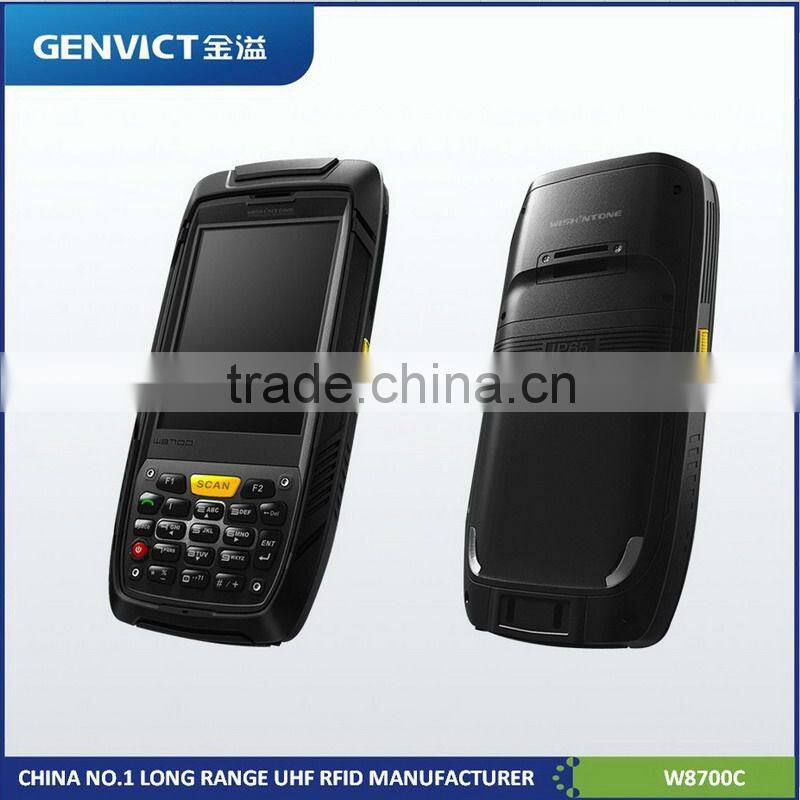

8 main functions: RFID (HF/UHF) , WIFI, Bluetooth, GPRS,GSM, 3G WCDMA, GPS+Beidou location, camera(night vision),1D/2D Barcode SRugged Portable Biometrics Fingerprint Scanner - W8700B
Feature:
- Completely self-owned brand. Independent R&D. Excellent human-computer interaction interface. User-friendly design with handle.
- Industrial handheld terminal, IP65 1.2 drop test passed.
- Windows CE 6.0 and Android 4.0 operation system, Multi-language optional
- 8 main functions: RFID (HF/UHF) , WIFI, Bluetooth, GPRS,GSM, 3G WCDMA, GPS+Beidou location, camera(night vision),1D/2D Barcode Scanner, Biometrics Fingerprint Reader supported and optional.
- Patented 2013 New Breakout device. Performance will be out of your imagination.
- 1-1.5 meters UHF RFID reading distance
- Supports regions based on European RFID frequencies (Europe 865-868MHz ETSI EN 302 208) and US RFID frequencies
Chinese No.1 UHF RFID long Range RFID manufacturer!!!
Application:
- Traffic (Express Way, Parking Lot): ETC (Electronic Toll Collection) , Vehicle Checking, Management
- Retail (Sales Floor; POS; backroom): Inventory/cycle counting, Automatic replenishment, Receiving/shrink control, Item finding
- Enterprise (Business offices/carpeted spaces), Asset/IT management, File and document tracking, Item finding
- Healthcare(Hospitals; clinics), Asset management (for high value critical assets), Patient tracking,, Item finding
- Manufacturing / Warehousing(Production line; Warehouse aisles and loading docks)
- Logistic / Supply Chain Express; Container tracking Inventory/cycle counting Receiving/shrink control Item finding
System | |
Operation System | Windows CE 6.0 |
CPU | ARM11 Samsung CPU, 800MHz |
Memory Capacity | 128MB DDR SDRAM,256MB ROM |
Operation System | Android 4.0 |
CPU | ARM9 Samsung 4412 CPU, quad-core 4*1.4GHz |
Extended Memory | 32G SD |
LCD Screen | |
Size | 3.5" |
Type | Semi-permeable TFT LCD (visual under sunshine outdoor) |
LED: | Three-color LED Status |
Loudspeaker: | Could be intruded (built-in) |
UHF / HF RFID | |
UHF Protocol: | ISO18000-6C/EPC C1Gen2 |
Frequency: | 860-960MHz |
Antenna | 2dBi |
Reading Distance | 1-1.5m |
HF Protocol: | ISO14443A/B, ISO15693 |
Frequency | 13.56MHz |
Reading Distance: | 1-8cm |
1D/2D Barcode | |
Identify mode: | Laser Scan |
Identify depth field: | 45mm-450mm |
Barcode type: | 2D:PDF417,QR Code, Data Matrix, Aztec, Maxiccode. LP code, Chinese-sensible code, etc |
| 1D:Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,China post 25,interteaved 2 of 5,ISBN/ISSN.Code93,etc |
Fingerprint Reader | |
Sensor Type | Inductance |
Registration time | <3s |
| Rate | FAR<0.001%,FRR<0.1% |
GPS Location | |
Cold start time: | Within 45 seconds |
Location precision: | Within 10 meters |
Image Acquisition | |
Pixel: | 3.2M pixel auto-focused |
Night Vision Image Acquisition | |
Pixel | 100,000,0 pixel |
Night Vision Range | 3-5 meters |
Wi-Fi Communication | |
Protocol | IEEE 802.11b/g |
Distance | 100m indoor/300m outdoor |
Bluetooth Communication | |
Protocol | Support versions 2.0 |
GPRS/GSM/CDMA/3G WCDMA | |
GSM Bands | 850/900/1800/1900/2100MHz |
Interface | |
External port | USB 2.0, RS232 |
Extend port | 1pcs SD/MMC card slot,1pcs SIM card slot,1pcs PSAM card slot |
Battery parameter | |
Capacity | 3.7V 4000mAh li-polymer battery |
Operational environment | |
Working Temperature | -30 - +60°C |
Storage Temperature | -40 - +85°C |
Relative Humidity | 5%-95% RH no condensing |
Protection Grade | IP65 |
Drop Test: | 1.2 meter free fall into concrete |
Physical parameter | |
Size | 160mm*77mm*30mm |
Weight | about 400-500 g |
Parts | |
Cable | USB cable and adaptor |
Charge | Adaptor and battery |
