Specifications
2m UHF RFID Handheld Reader - Passive Portable Teminal-Win CE, Android
-1.5m drop, IP65
-Barcode scanner,GPS,BT,camera,GPRS

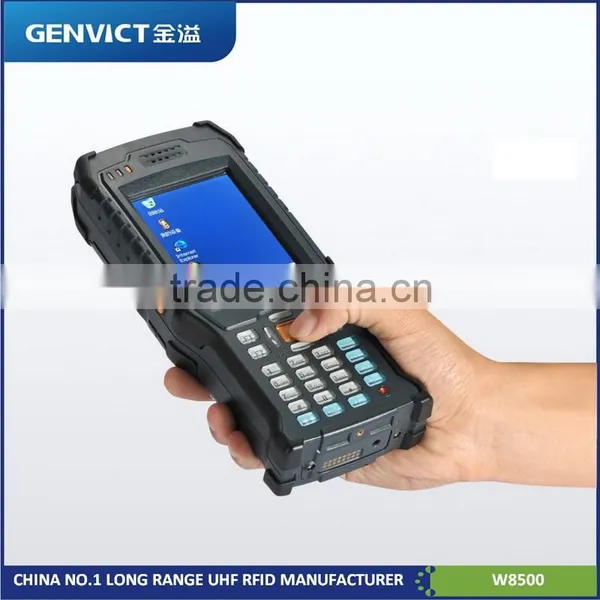

2m UHF RFID Handheld Reader - Passive Portable Teminal
INSTRODUCTION & FEATURE:
u Completely self-owned brand. Independent R&D. Industrial handheld terminal with Windows CE 6.0 operation system. User-friendly design with handle.
u Full functions: RFID (HF/UHF) WIFI, Bluetooth, GPRS, GPS, camera supported and optional.
u Russian, English, Chinese languages optional
u Stable 1-2 meters reading distance,1.5m drop test
u Supports regions based on European RFID frequencies (Europe 865-868MHz ETSI EN 302 208) and US RFID frequencies
Chinese No.1 UHF RFID Short Range RFID manufacturer!!!
Application:
- Traffic (Express Way, Parking Lot): ETC (Electronic Toll Collection) , Vehicle Checking, Management
- Retail (Sales Floor; POS; backroom): Inventory/cycle counting, Automatic replenishment, Receiving/shrink control, Item finding
- Enterprise (Business offices/carpeted spaces), Asset/IT management, File and document tracking, Item finding
- Healthcare(Hospitals; clinics), Asset management (for high value critical assets), Patient tracking,, Item finding
- Manufacturing / Warehousing(Production line; Warehouse aisles and loading docks)
- Logistic / Supply Chain Express; Container tracking Inventory/cycle counting Receiving/shrink control Item finding
Chinese the Best RFID high-tech production equipments!!!
We have very strict inspection process!!!!
Specification:
System | |
Operation System | Windows CE 6.0 |
CPU | ARM11processor, dominant frequency 800MHz |
Memory Capacity | 128MB DDR SDRAM,256MB ROM |
Extended Memory | 2G/4G/8G/16G/32G SD |
LCD Screen | |
Size | 3.5" |
Type | Semi-permeable TFT LCD (visual under sunshine outdoor) |
LED: | Three-color LED Status |
Loudspeaker: | Could be intruded (built-in) |
UHF RFID built-in | |
Protocol: | ISO18000-6C/EPC C1Gen2 |
Frequency: | USA 902-928MHzFCC part 15 |
| Europe 865-868MHz ETSI EN 302 208 |
| China 920-925MHz |
| Japan 952-954MHz |
| Other country frequency customization optional |
Antenna: | Circular 2dBi |
Reading Distance: | 1-2m |
1D/2D Barcode optional | |
Identify mode: | Laser Scan |
Identify depth field: | 45mm-450mm |
Barcode type: | 2D:PDF417,QR Code, Data Matrix, Aztec, Maxiccde. LP code, Chinese-sensible code, etc |
| 1D:Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,China post 25,interteaved 2 of 5,ISBN/ISSN.Code93,etc |
GPS Location optional | |
Cold start time: | Within 45 seconds |
Location precision: | Within 10 meters |
Image Acquisition optional | |
Pixel: | 3.2M pixel built-in AF function |
Night Vision Image Acquisition optional | |
Pixel | 100,000,0 pixel |
Night Vision Range | 3-5 meters |
Wi-Fi Communication built-in | |
Protocol | IEEE 802.11b/g |
Distance | 100m indoor/300m outdoor |
Receiver Sensitivity | -75dBm |
Transmitting Power | within 100mW |
Bluetooth Communication optional | |
Protocol | Support versions 2.0 |
GPRS/GSM/CDMA optional | |
GSM Bands | 850/900/1800/1900 MHz |
Interface | |
External port | USB 2.0, RS232, RJ45adaptor |
Extend port | 1pcs SD/MMC card slot,1pcs SIM card slot,1pcs PSAM card slot |
Battery parameter | |
Capacity | 7.4V 2000mAh li-polymer battery |
Operational environment | |
Working Temperature | -30 - +60°C |
Storage Temperature | -40 - +85°C |
Relative Humidity | 5%-95% RH no condensing |
Protection Grade | IP65 |
Drop Test: | 1.5 m free fall into concrete |
Physical parameter | |
Size | 200*84*40mm |
Hand Shank Length | 110mm |
Weight | 650 g including hand shank |

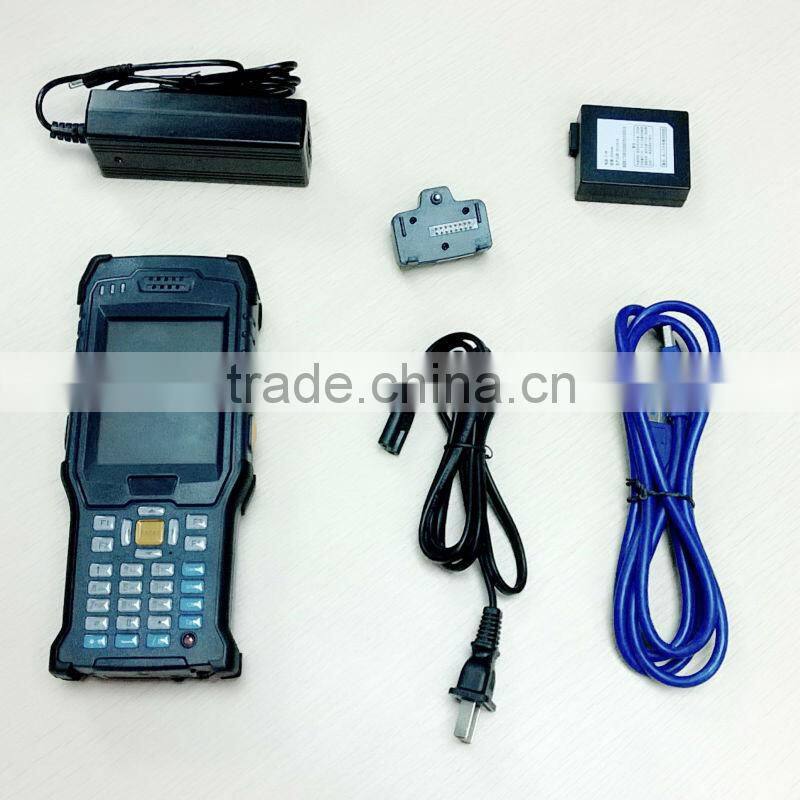

Parts | |
Cable | USB cable and adaptor |
Charge | Adaptor and battery |
Most Professional Technology Support Team 20persons X 8hrs each working day for you!!!
Our Chief engineer often directly serve you for development.
If you still have any RFID application questions, email or call Rodan now. I will give you best answer.
