Specifications

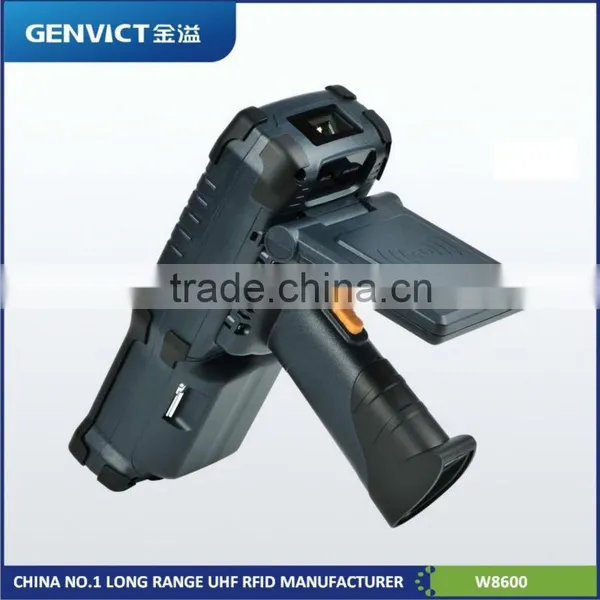

Handheld RFID Mobile Computer with OR code scanner-Win CE, Android,1.2m drop,IP65 rugged
-7-25m UHF RFID distance
Rugged Handheld Mobile Computer with QR code scanner
Introduction & feature:
- Completely independent R&D, self-owned brand Industrial handheld terminal
- Windows CE 6.0 or Android 4.0 operation system. User-friendly design with handle.
- 7 main functions: RFID (HF/UHF) WIFI, Bluetooth, GPRS, GPS, camera, 1D or 2D barcode scanner supported or optional
- Multi-language optional
- The No.1 long range RFID technology in China. Up to 5-12meters reading distance(20-25m distance customized service available
- Supports regions based on Europe frequencies (Europe 865-868MHz ETSI EN 302 208) ,USA frequency(902-928MHz), China Standard
Chinese No.1 UHF RFID long Range RFID manufacturer!!!
Application:
- Traffic (Express Way, Parking Lot): ETC (Electronic Toll Collection) , Vehicle Checking, Management
- Retail (Sales Floor; POS; backroom): Inventory/cycle counting, Automatic replenishment, Receiving/shrink control, Item finding
- Enterprise (Business offices/carpeted spaces), Asset/IT management, File and document tracking, Item finding
- Healthcare(Hospitals; clinics), Asset management (for high value critical assets), Patient tracking,, Item finding
- Manufacturing / Warehousing(Production line; Warehouse aisles and loading docks)
- Logistic / Supply Chain Express; Container tracking Inventory/cycle counting Receiving/shrink control Item finding

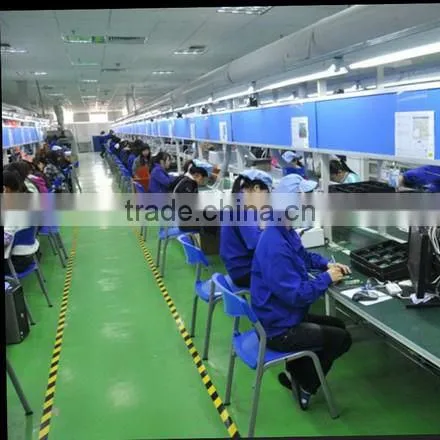

Chinese the Best RFID high-tech production equipments!!!

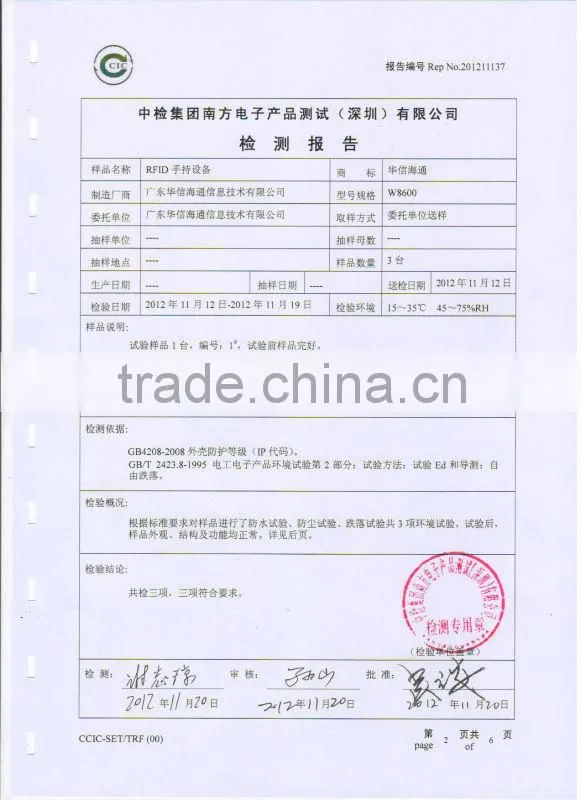

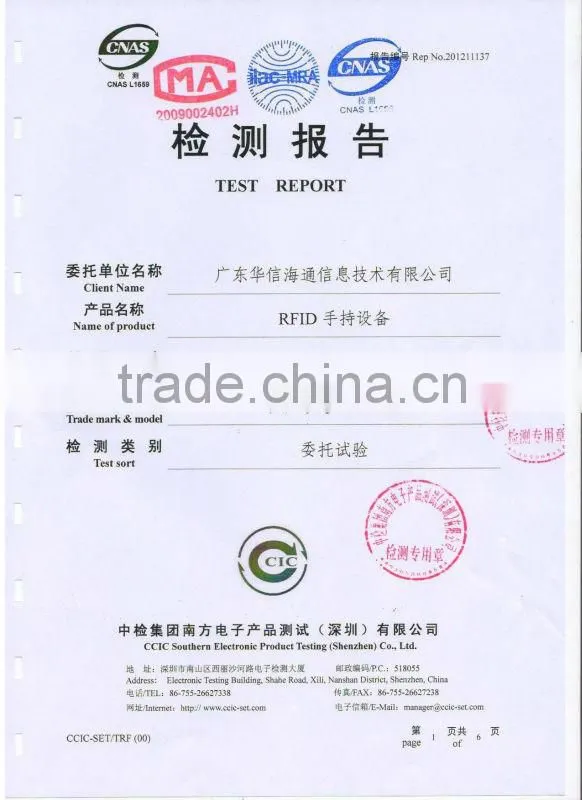

We have very strict inspection process!!!!
Specification:
System | |
Operation System |
Windows CE 6.0 |
CPU |
ARM11processor, dominant frequency 800MHz |
Memory Capacity |
128MB DDR SDRAM,256MB ROM |
Extended Memory |
2G/4G/8G/16G/32G SD |
LCD Screen | |
Size |
3.5" |
Type |
Semi-permeable TFT LCD (visual under sunshine outdoor) |
LED: |
Three-color LED Status |
Loudspeaker: |
Could be intruded (built-in) |
UHF RFID built-in | |
Protocol: |
ISO18000-6C/EPC C1Gen2 |
Frequency: |
USA 902-928MHzFCC part 15 |
|
Europe 865-868MHz ETSI EN 302 208 |
|
China 920-925MHz |
|
Japan 952-954MHz |
|
Other country frequency customization optional |
Antenna: |
Circular 4dBi |
Reading Distance: |
1-12m (20-25m could be customized) |
1D/2D Barcode optional | |
Identify mode: |
Laser Scan |
Identify depth field: |
45mm-450mm |
Barcode type: |
2D:PDF417,QR Code, Data Matrix, Aztec, Maxiccde. LP code, Chinese-sensible code, etc |
|
1D:Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,China post 25,interteaved 2 of 5,ISBN/ISSN.Code93,etc |
GPS Location optional | |
Cold start time: |
Within 45 seconds |
Location precision: |
Within 10 meters |
Image Acquisition optional | |
Pixel: |
3.2M pixel built-in AF function |
Night Vision Image Acquisition optional | |
Pixel |
100,000,0 pixel |
Night Vision Range |
3-5 meters |
Wi-Fi Communication built-in | |
Protocol |
IEEE 802.11b/g |
Distance |
100m indoor/300m outdoor |
Receiver Sensitivity |
-75dBm |
Transmitting Power |
within 100mW |
Bluetooth Communication optional | |
Protocol |
Support versions 2.0 |
GPRS/GSM/CDMA optional | |
GSM Bands |
850/900/1800/1900 MHz |
Interface | |
External port |
USB 2.0, RS232, RJ45adaptor |
Extend port |
1pcs SD/MMC card slot,1pcs SIM card slot,1pcs PSAM card slot |
Battery parameter | |
Capacity |
7.4V 3500mAh li-polymer battery |
Operational environment | |
Working Temperature |
-30 - +60°C |
Storage Temperature |
-40 - +85°C |
Relative Humidity |
5%-95% RH no condensing |
Protection Grade |
IP65 |
Drop Test: |
1.2 mr free fall into concrete |
Physical parameter | |
Size |
200*84*40mm |
Hand Shank Length |
110mm |
Weight |
850 g including hand shank |

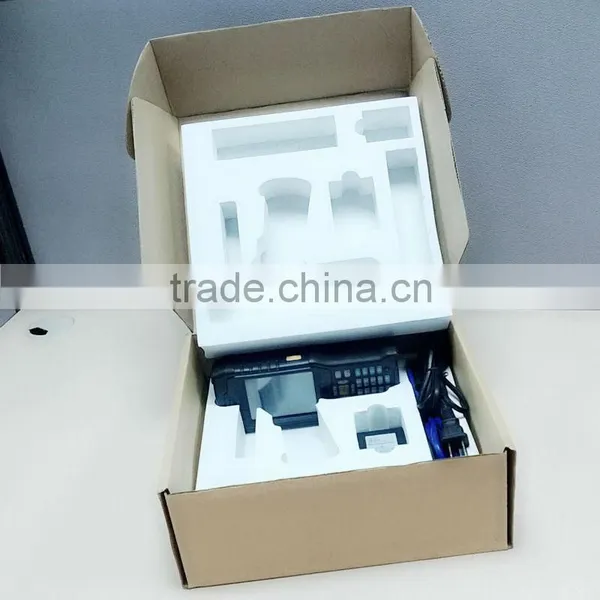

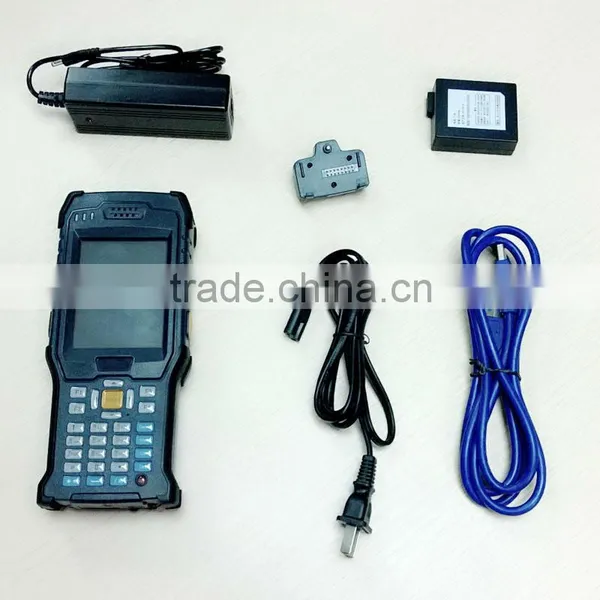

Parts | |
Cable |
USB cable and adaptor |

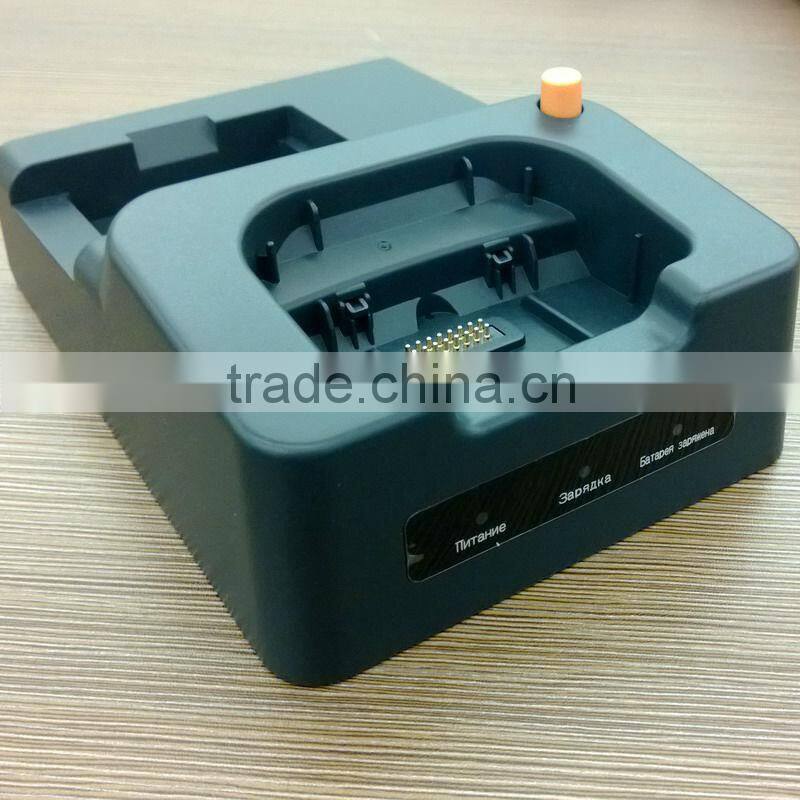

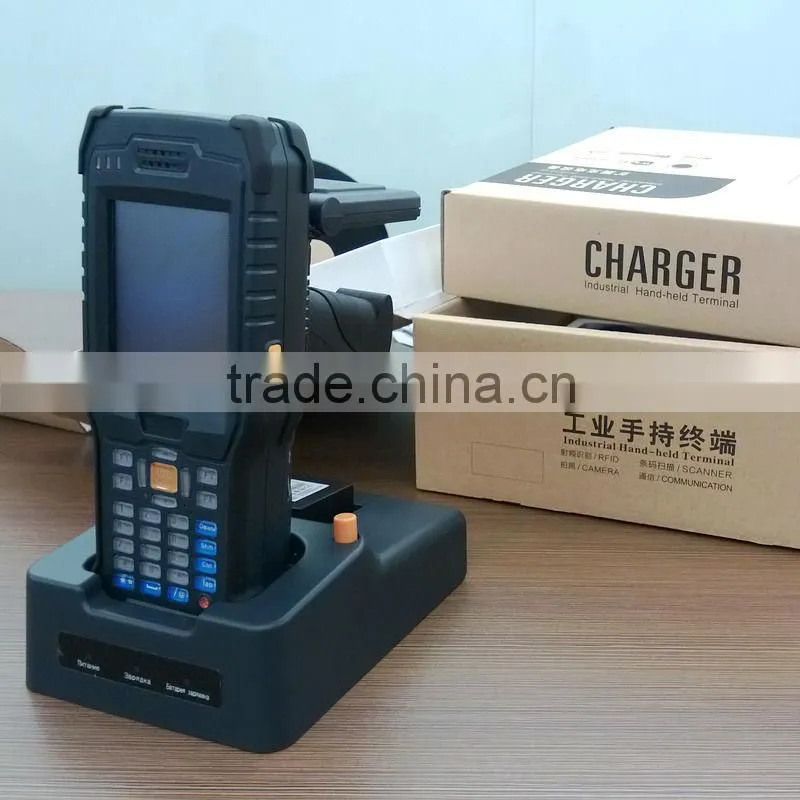

Charge |
Adaptor and battery |
Most Professional Technology Support Team 20persons X 8hrs each working day for you!!!
Our Chief engineer often directly serve you for development.
If you still have any RFID application questions, email or call Lucky now. I will give you best answer.
