ultrasonic cleaner for charge air coolers ship engines 1800x1000 BK-12000price Quality Choice

Strong Wooden Case, Suitable shipping Case or container(Large scale)
shipping info :0.45CBM

Specifications

1.Ultrasonic cleaner with high power transducer,
2.Cleaning equipment,large tank capacity
3.Various application
4.Degreasing

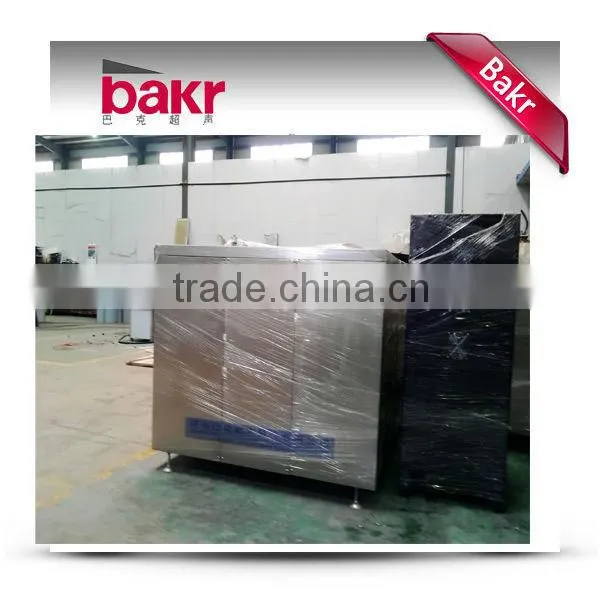

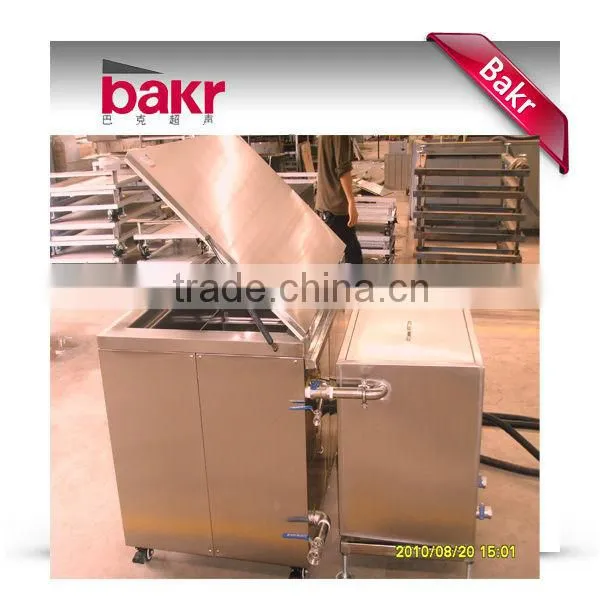

 ultrasonic cleaner for charge air coolers ship engines 1800x1000 BK-12000price



Ultrasonic cleaner series are mainly used in laboratory ,medical and dental clinics,electronic workshops,also can be applied to semi-conductor silica chip,optical glass,Jewelry,Watches straps and bands,glasses,dentures,toothbrushes,tableware,hardware,plastic ceramic parts.



Ultrasonic Energy as a Cleaning System

Ultrasonic cleaning occurs when sound waves are focused through a cleaning solution, creating an effect

called "cavitation". Cavitation is the rapid formation and collapse of countless tiny cavities (or bubbles),

produced by alternating high and low pressure waves within the detergent solution. During the low pressure phase,

these bubbles grow from microscopic size until, during the high pressure phase, they are compressed and implode.

This powerful energy is localized at the microscopic level, making the cleaning process safe for parts.



1, Bakr is the first one to use full-bridge IGBT high-power integration modules-Germany Siemens to control power source,good protection against high temperature,high pressure and overheating,makes the cleaner perfect.

2,Withstand high temperature.it can reach up to 80°C, Siemens modules is of high   pressure resistance,as transistor and filed effect tube can be easily be broken down by current under high voltage,not only affecting the normal function but also disturbing the transducer's frequency,Siemens can avoid this.

3, Siemens module control power is higher than other components; Bakr`s control circuit adopts the most advanced power adjustment according to different components.

4,Adopting original Germany CeramTec piezoelectric ceramic chip,high-precision CNC machine equipment and accurate test methods ensure Bakr high quality.And tank adopts expoted 2mmSUS304 stainless steel.

5, Good outlook, low defective rate, easy operation and professional style.





Model Specification	BKU900	BKU-1800	BK-1800	BK-2400	BK3600	BK-4800	BK-6000	BK-7200	BK-10000	BK-12000
Ultrasonic Power	900W	1.8KW	1.8KW	2.8KW	3.6KW	5.2KW	7.2KW	8.0KW	14.4KW	21.6KW
Heating Power	1KW	4KW	4KW	6KW	8KW	9KW	12KW	16KW	20KW or steam	32KW or steam
Voltage	380V	380V	380V	380V	380V	380V	380V	380V	380V	380V
Tank Size(mm) (length×width×height)	400*300*300	700*400*350	600*480*450	750*550*480	1000*550*560	1200*650*650	1450*720*730	1500*800*800	1700*900*800	2200*1200*1000
Product Size(mm) (length×width×height)	560*460*600	1000*750*700	760*770*680	910*850*770	1160*850*870	1400*1030*980	1650*1190*1100	1700*1280*1150	1960*1450*1150	2500*1800*1350
Ultrasonic direction	Down side	Down side	Three sides	Three sides	Three sices	Three sides	Three sides	Three sides	Three sides	Three sides
Have dregs tank or not	have	have	have	have	have	have	have	have	have	have
Have overflow device or not	without	without	have	have	have	have	have	have	have	have
