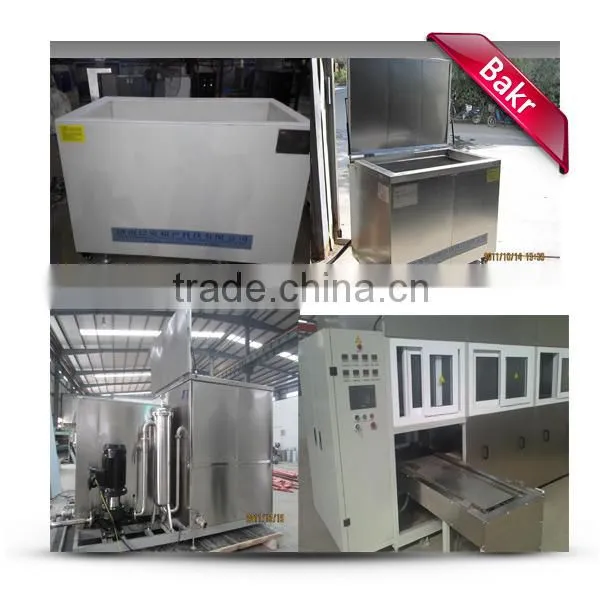

supersonic wave degreasing washing tank
theory:
An ultrasonic cleaner is a cleaning device that uses ultrasound (usually from 20–400 kHz) and an appropriate cleaning solvent (sometimes ordinary tap water) to clean delicate items. The ultrasound can be used with just water, but use of a solvent appropriate for the item to be cleaned along with the soiling enhances the effect. Cleaning normally lasts between three and six minutes, but can also exceed 20 minutes, depending on the object to be cleaned.
Series of ultrasonic machine
Model NO. |
Tank dimension (mm) |
Ultrasonic power(k w) |
Ultrasonic direction |
Heat power (k w ) |
Voltage |
Ultrasonic Frequencies(kHz) |
||
length |
width |
depth |
||||||
B k-1800 |
600 |
480 |
450 |
1.8 |
3 sides |
4 |
220v or 380v |
28/40 |
B k-2400 |
750 |
550 |
480 |
2.8 |
3 sides |
6 |
220v or 380v |
28/40 |
B K-3600 |
1000 |
550 |
560 |
3.6 |
3 sides |
9 |
220v or 380v |
28/40 |
B K-4800 |
1200 |
650 |
650 |
5.2 |
3 sides |
12 |
220v or 380v |
28/40 |
B K-6000 |
1450 |
720 |
730 |
7.2 |
3 sides |
15 |
220v or 380v |
28/40 |
B K-7200 |
1500 |
800 |
800 |
8 |
3 sides |
18 |
220V or 380v |
28/40 |
B K-10000 |
1700 |
900 |
800 |
10.8 |
3 sides |
20 |
220v or 380v |
28/40 |
B K-12000 |
2200 |
1200 |
1000 |
21.6 |
3 sides |
32 |
220v or 380v |
28/40 |
Feature:
1. quickly and stable cleaning ,low breakdown ,good quality with factory price, professional testing
2.clear circuit,top quality steel made for body, cover and base
3. Digital timer and heating control,Adjustable frequency
4.Stainless steel basket, with 500kgs load weight
5. Powerful transducer, clear circuit,auto water level control inspection
6.high-power integrated module, resistant above 80°C temperature
7.High efficiency and keep cleaning parts precision
8. Reduce labour costs,save dollars on chemicals and replacement
9. high effective, low costs , PLC control, LCD contact screen
10. cleanness-degree high, no damage to the clean objects surface
11.original German CeramTec transducer,above 98% output ultrasonic power
12.Quality assure 1 year,welcome customized
Applications:
* Oil and charcoal removal before turning dark during heat treatment.
* Cleaning before electroplating.
* For services of automobile and motorcycle.
* Cleaning test tube and breaker in laboratory.
* For jewel, jade and stone processing.
* Cleaning all kinds of circuit plates.
* For family to clean glasses, jewel, watches, seals, artificial tooth, and toothbrush, etc.
FAQ
Q-1, How to maintain ultrasonic cleaners effectively?
A: 1. Continuous working time should not be more than four hours.
2. To avoid collision or violent vibration against the machine.
3. Cleaning fluid should be precipitated, filtrated or replaced in time.
4. To keep away from heat-source.
5. To be strictly prohibited the conductive liquid from air intake at the top of the ultrasonic control cabinet.
Q-2, How to choose ultrasonic cleaning agent?
A: There are generally two kinds of ultrasonic cleaning agent, chemical cleaning agent and water-based cleaning agent. Cleaning agent is chemical action while ultrasonic cleaners are physical action. Cleaning objects can be throughly cleaned when using both of them. Please choose the right cleaning agent according to different requirements.
Q-3, How to avoid damaging the work piece during cleaning?
A:1. To use correct ultrasonic frequency and ultrasonic power.
2.To choose suitable ultrasonic cleaning agent.
3.To choose reasonable tooling basket and cleaning methods.
services:
1. For failure or damage occurring during the warranty period, the device under normal conditions of use. We are responsible for the repair or replacement.
2. We supply the service sending professionals installation and commissioning on customer site if customer need. The cost need to be discussed.
3. We supply the service training operators online or in our plant ( transportation and accommodation costs not included).
4. After the warranty, we only charge the damage components cost and freight cost, if need service on customer site, customer pay for the transportation and accommodation costs.
5. Fast response will be in 12 hours once receive customers' complain.
