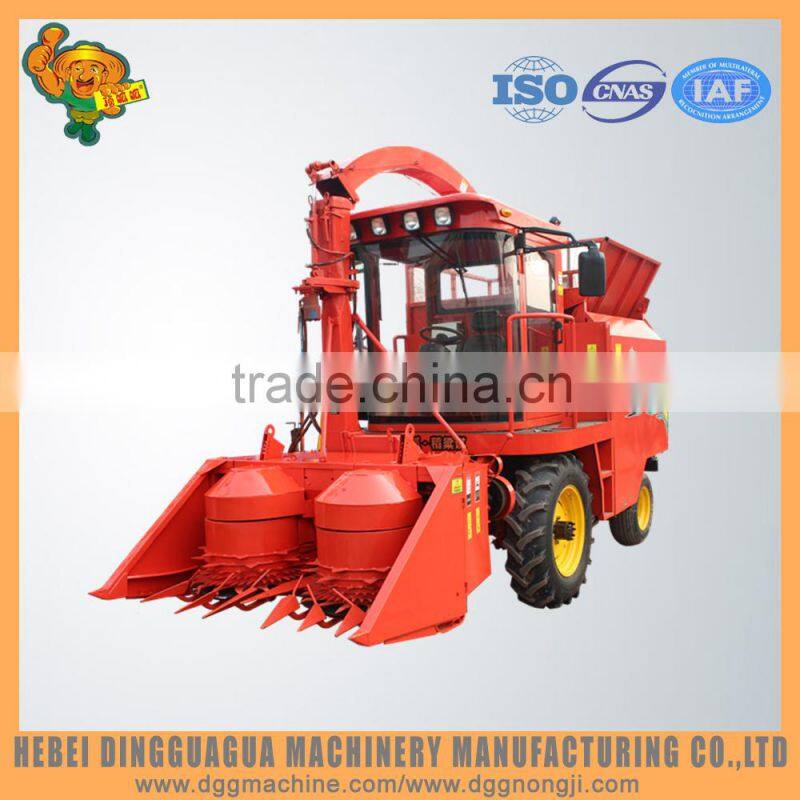

4QZ-1800 self-propelled silage machine forage harvester for corn
1. The design of double discs header feeds all the crops uniformly into drum, which can cut all the stalks within the working width(not row by row), to improve the yield rate.
2. Adopted upright feeding roller, upright chaff cutter, which is simple structure and stable performance, not only cutting off the straw cuticle, but also retaining the nutrients,
3. They are equipped with YTO inline 4-cylinder with 140 hp turbo engine, efficient and high-powered.
4. The new cab with 270 degree wide field of vision and simple operating system makes it easy to drive.
5. Equipment with storage containers of forage makes forages recycle and harvest more convenient.
6. Big track and short wheelbase make it convenient and flexible to bend and turn
7. High efficiency, low price, and low fuel consumption, make this machine become more and more small and middle size pasture’s first choice.
Specifications:
Item |
Unit |
Specification |
Model |
4QZ-1800 |
|
Overall dimension (length, width, height) |
mm |
5000*1800*2900 |
Net weight |
kg |
4500 |
Engine power |
hp |
140 |
Mainshaft speed of cutting device |
r/min |
1300 |
Header width |
mm |
1800 |
Header up-down scope |
mm |
0-400 |
Cutting device Structure |
upright |
|
Throwing drum turning angle |
° |
360 |
Rotor diameter of cutting device |
mm |
800 |
Cutting length |
mm |
Adjust the quantity of the saws |
Throwing height |
mm |
4300 |
Throwing distance |
mm |
≥3000 |
Walking velocity |
km/h |
1-10 |
Working efficiency |
t/h |
≥29 |
