(Q35/Q36/Q76)surface treatment,turntable shot blasting machine for sale
- 15 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Supports multi-hook customization of Pumingwei hook-type shot blasting machine surface metal rust removal equipment
- tumble rubber belt shot blasting machine for foundry plant crawler shot blaster
- smaller casting parts surface treatment crawler shot blasting machine
- Q326 Q324 Q3210 tumble belt shot blasting machine crawler belt shot blasting machine
- Tumble belt shot blasting machine for nuts and bolts surface treatment
- Tumbler belt shot blasting abrator machine wheel crawler shot blaster
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | ROVAN |
Model Number: | Q35/Q36/Q76 | Feature: | Critical Cleaning / Residue Free, Non-Ionic, Non-Toxic | Fuel: | Electric |
Certification: | CE | Use: | Burnishing, Container / Bottle Cleaning, Deflashing, Degreasing, Descaling / Stripping | Cleaning Process: | Other, steel sand |
Cleaning Type: | Clean-In-Place (CIP) | Industry Used: | Other, casting/forging/machinery | Material: | Other, steel/iron |
Power(W): | selected | Dimension(L*W*H): | selected | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

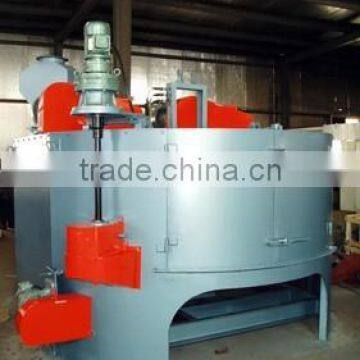

turntable shot blasting machine
turntable shot blast machineQ35Q36Q76
1.This machine mainly used in cleaning and strengthening the surface of the castings, and used in removing oxide and welding dregs, it is widely suited for the field of oil casting,forging,machinery,iron,and steel industry.

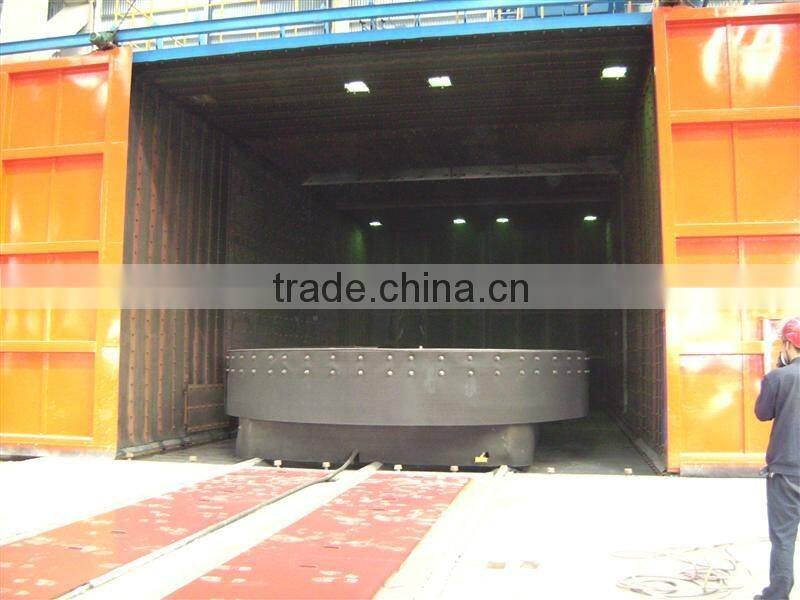

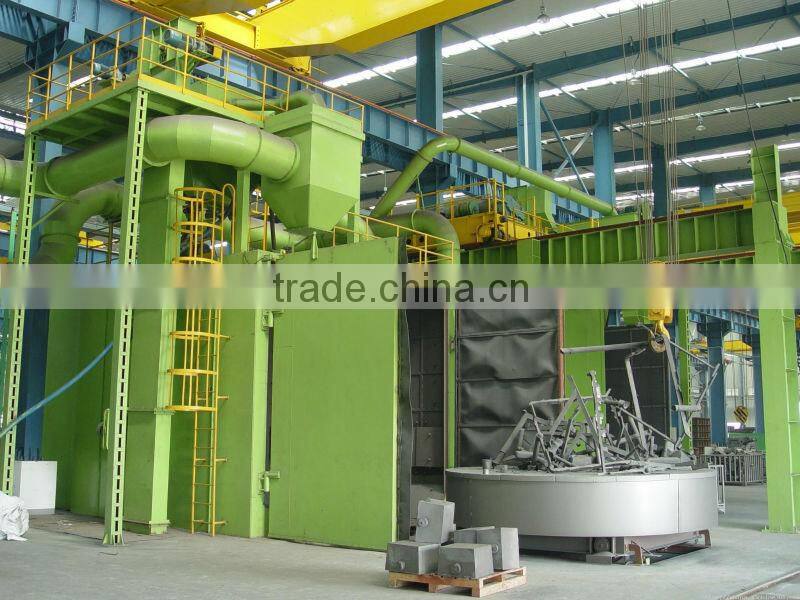

2.Turntable Type Shot Blasting Machine hold workpieces with turn table which could rotate in the chamber and could get through it easily. It is used to clean big size casting pieces.
3.This machine usually works with a air blast machine to made partially amendment shot-blasting for complete blasting. The air blast machine could also blow the dust and abrasives on the surface with pressed air.
Technical parameter:
Type | Q35 series turntable shot blast machine | Q36 series trolley shot blast machine | |||
Model | Q3512 | Q3525 | Q365C | Q3610 | Q3620 |
Dimension of workpiece(mm) | 600*250*250 | 1000*500*250 | 2500*1300 | 2500*1500*280 | 4000*3000*700 |
Max weight of workpiece(kg) | 400 | 1000 | 5000 | 10000 | 20000 |
Blast volume(kg/min) | 200 | 2*250 | 2*250 | 4*250 | 4*250 |
Lifting capacity(t/h) | 15 | 30 | 40 | 60 | 75 |
Separating capacity(t/h) | 350 | 150 | 40 | 60 | 75 |
Ventilation capacity(m³/h) | 2400 | 6200 | 13200 | 240000 | 21000 |
Power(excluding dedust)(kw) | 17.3 | 35.2 | 39.2 | 188.45 | 185.25 |
Outline dimension(mm) | 1500*3450*3780 | 2200*3500*4300 | 900*4200*9290 | 14900*500*8700 | 16900*6540*10020 |
Type | Q76 series turntable shot blast machine | |||
Model | Q765C | Q7610 | Q7620 | Q7630 |
Dimension of workpiece(mm) | 2000*1000 | 2500*1500*280 | 4000*3000*700 | 4000*2000 |
Max weight of workpiece(kg) | 5000 | 10000 | 20000 | 30000 |
Blast volume(kg/min) | 2*250 | 3*250 | 4*250 | 4*250 |
Lifting capacity(t/h) | 30 | 45 | 60 | 60 |
Separating capacity(t/h) | 30 | 45 | 60 | 60 |
Ventilation capacity(m³/h) | 11000 | 15000 | 21500 | 21500 |
Power(excluding dedust)(kw) | 35.8 | 188.45 | 183.35 | 83.2 |
Outline dimension(mm) | 9000*5200*9290 | 14900*5200*6100 | 16900*540*10028 | 9168*7680*10874 |
packaging:normal cases by sea
delivery: 30-55days
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 11 years,
competitive with good quantity.
7. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges are
usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products
to be finished in high quality and stable feature. Welcome to contact us or visit our company.
Qingdao Rovan Machinery Co.,Ltd was established in 2001,China south Korea joint venture enterprise intergrated scientific research,design,manufacture,debugging installation consulting service professional equipment manufacturing enterprises.
Our mainly products including hook type shot blasting machine, tumble belt type shot blasting machine, inner and outer walls of steel pipe shot blasting machine,H-beam steel shot blasting machine, turntable type shot blasting machine ,trolley type shot blasting machine,wire rods shot blasting machine and so on.
we also get good comments from domestic and abroad user of foundry plant, forging plant, heat treatment shop, steel structure plant, container manufacturer, and shipyard and so on. We can design and manufacture different machines according to customers' requirement.OEM service are available here.
kindly confirmed the fllowing information before purchasing
1.what's the workpiece will be cleaning
2.what's the weight of the workpieces
3.what's the quantity one day
