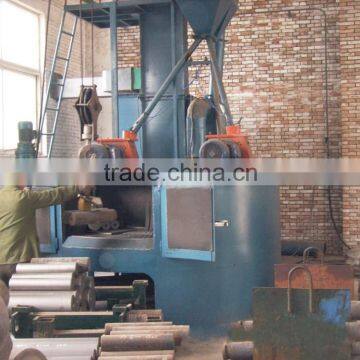

Help Center01 Q35 Series Turntable Rotary Type Shot/Sand Blasting Polishing Machine
Related Products
-
01 Loop Chain Type Shot Blasting Machine for Steel Bottle CleaningUS$ 5,000 - 50,000MOQ: 1 Set -
01 Forging Parts Turntable Type Shot/Abrasive Blast Cleaning MachineUS$ 5,000 - 50,000MOQ: 1 Set
-
01 Trollry Type Turntable Shot/Sand Blast Machine Manufacturer for Forging PartsUS$ 5,000 - 50,000MOQ: 1 Set
-
Rotary Table Sandblasting Machine, Turntable Rust Cleaning SandblasterUS$ 5,000 - 50,000MOQ: 1 Set
-
02 Iron Rust Remover, Rotating Table Sandblasting MachineUS$ 5,000 - 50,000MOQ: 1 Set
Turntable blasting polishing machine
Shot blasting chamber is lined with wearable protection board , and clamped with the protective cap. It is convenient to
disassembly and replacement. Protection plates adopt lap joint type to protect.
This machine mainly used in cleaning and strengthening the surface of the castings, and used in removing oxide and welding
dregs ,it is widely suitable for the field of oil casting, forging,machinery, iron and steel industry.
Applications
Rust and heat scale removal
Paint stripping
Surface texturing
Reparation for painting, bonding and plating
Corrosion removal
Deburring, deflashing
Cleaning
Cosmetic finishing
Features
Extremely compact design, minimum floor space required
Totally self contained, * includes dust collector, separator, cartridge filtration system
No special foundations required, no extra ducting needed
Clam shell‘ door design allows easy loading with truck or crane
Full safety interlocks
Automatic in operation
Low noise levels
Further production enhancing features on certain models
Heavy duty construction for the most demanding environment
Technique parameter
| type | Q3512 | Q3525 |
| Size of workpiece cleaned(mm) | 600*250*250 | 1000*500*250 |
| maxmum weight of workpiece(kg) | 400 | 1000 |
| shot blast rate(kg/min) | 200 | 2*250 |
| lifting capacity of hoist(t/h) | 15 | 30 |
| saparating capacity ofseparator(t/h) | 350 | 150 |
| ventilation capacity(m³/h) | 2400 | 6200 |
| power(excluding dedusting)(kw) | 17.3 | 35.2 |
| demension(mm) | 1500*3450*3780 | 2200*3500*4300 |
About us
Qingdao Rovan Machinery Co.,Ltd was established in 2001, Asia's largest shot blasting machine supplier, do foreign trade
export for ten years,mainly produces shot blasting machine, shot peening equipment, resin sand equipment, sand plant
equipmet,dust collector and conditioning equipment, V law molding line etc.
Technical advantages
With new product design,development,prototype,debug capabilities,provide users with the best technical solutions in the shortest
time,and delivery in high quality.In the shot blasting,sand casting,shape own professional technicist to leading technology work.
Trade Terms:
1. Payment:
(1)Telegraphic Transfer(30% advance payment, balance before shipment).
(2)Telegraphic Transfer(30% advance payment, balance against copy of documents).
(3)Letter of Credit: at sight.
2. Lead Time: 2 weeks after confirmed order
3. Delivery way: by sea
Application:
surface treatment
machined part
style design
Service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years,
competitive with good quantity.
7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
If you want to buy shot blasting machine, could you tell me the answers as follow?Please indicate the following details:
1) What kind of workpiece will you clean? Material?2) The size of it, length, width and height of maximum workpiece? Length, width and height of minimum workpiece?
3) How heavy is each workpiece? Especially the weight of maximum workpiece?4) How many tons will you clean for each month or each day?
After getting your informations, the detailed technical parameters will be sent to you for your reference. Note:As we are an
integrated company, we sell our products direct to customers without any extra agent charges. Hence, our price is relatively
lower than others. Moreover, we are using the most advanced equipment and technology in order to produce high quality
and more professional.
