Hot Sale 300 Watt Solar Panel

Hot Sale 300 Watt Solar Panel thumbnail-1
Hot Sale 300 Watt Solar Panel photo-1
US$ 0.65 - 0.71 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
cap
Model Number:
LMM
Contact Supplier Request Quote Chat Now
Guangzhou CAP Solar New Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name cap
Model Number LMM
Specification Normal
Application Industrial
Output Voltage (V) 12
Load Power (W) 300
Solar Power (W) 300
Work Time (h) 8

Specifications

300 watt solar panel
1) high efficency
2) easy to install
3) stand heavy rain and snow
4) lower price

300 watt solar panel

1) high efficency

2) easy to install

3) stand heavy rain and snow

4) lower price

DATA:

Solar Panel Data Sheet
Description of Specification Configuration Units Model
LMI-300P
General Data
Maximum Power Pm(W) Watts 300W
Watt Tolerance    % ±3
Application     DC24V
Storage & Operating Temperature   Deg .C -45~85
Standard Test Conditions:Cell Temperature:25 Deg. C,Irradiance:1kW/m2,Air Mass: 1.5
Voltage & Ampereage
Maximum System Voltage   Volts 1000VDC
Maximum Operating Voltage Vmp Volts 37.8
Maximum Operating Current Imp Amps 7.94
Open Circuit Voltage Voc Volts 45.2
Short Circuit Current Isc Amps 8.51
Solar Cell
Cell Type and Diameter      Polycrystalline,156mm×156mm
Number of Cells  In Series   72(6×12)
Temperatures Coefficients
Temp Coefficent of Isc Tk Isc % per deg.C 0.05
Temp Coefficent of Voc Tk Voc % per deg.C -0.34
Temp Coefficient of Pmax Tk Pmax % per deg.C -0.45
Normal Op. Cell Temp (NOCT)   deg.C 45±2
Materials & Accessories Data (All Certified by CE and TUV)
Junction Box      IP65 rated
Output Cable:Wire Diameter :4mm2 Length mm 900
Type of Cable Connector     MC Plug Type IV
Frame:Aluminum Alloy     Anodized
Front Glass:Low Iron,High Transmisson,Tempered glass Thickness   3.2mm
Cell Encapsulation Material EVA mm 0.5mm
Backsheet Cover Material TPT mm 0.3mm
Quality Warranty (Output Power)
  Power Production 90% Years 10
80% Years 25
Manufacturing    Years 5
Dimensions, Packing & Loading
Dimensions:Length×Width×Height   mm 1950×995×50
Weight   kg 25
Loading Capacity in Container
  Pieces / Container   40' 396pcs
Pieces / Container   40'H 495pcs


Warranty:We gurantee that Power output will be at least 90% after ten years and more than 80% after twenty-five years. We ensure that our panels' life is 25years or more, and our warranty is 5 years.

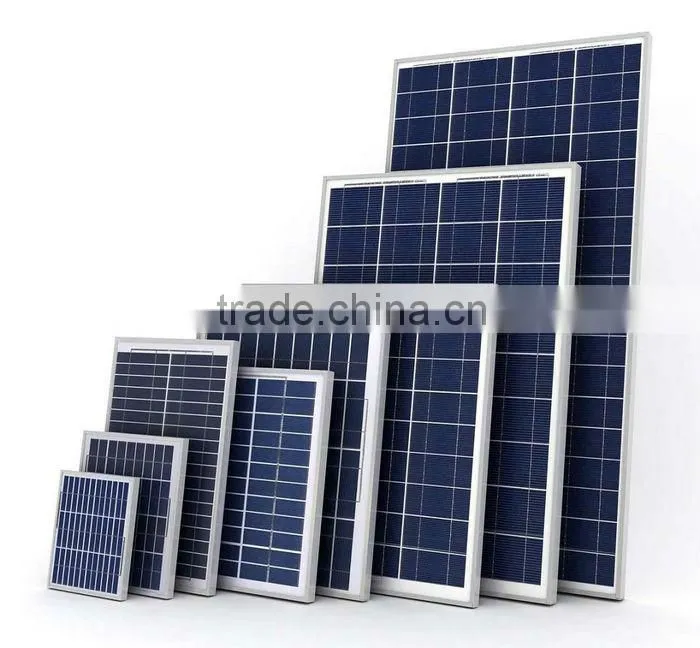

hot sale 300 watt solar panel

Any question pls feel free to contact me.

Skype :capsolar4

Mobile:+86 136 97413612
