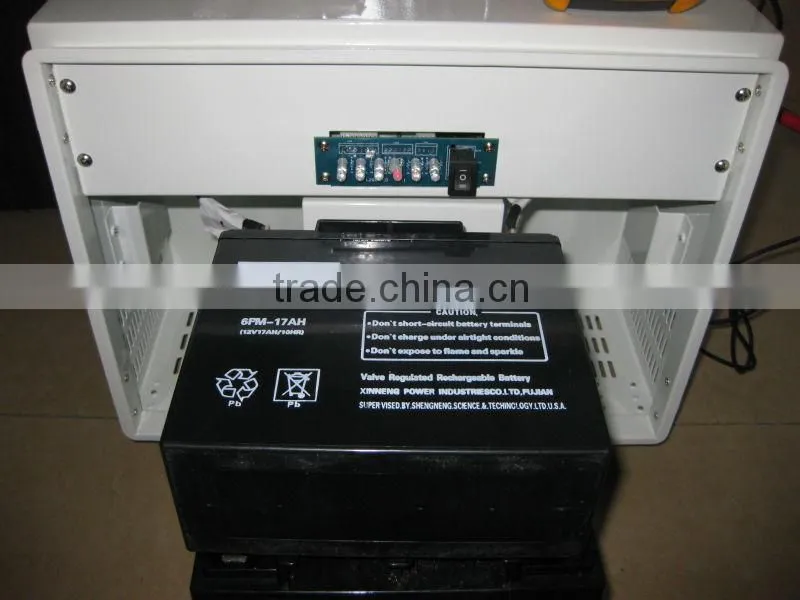

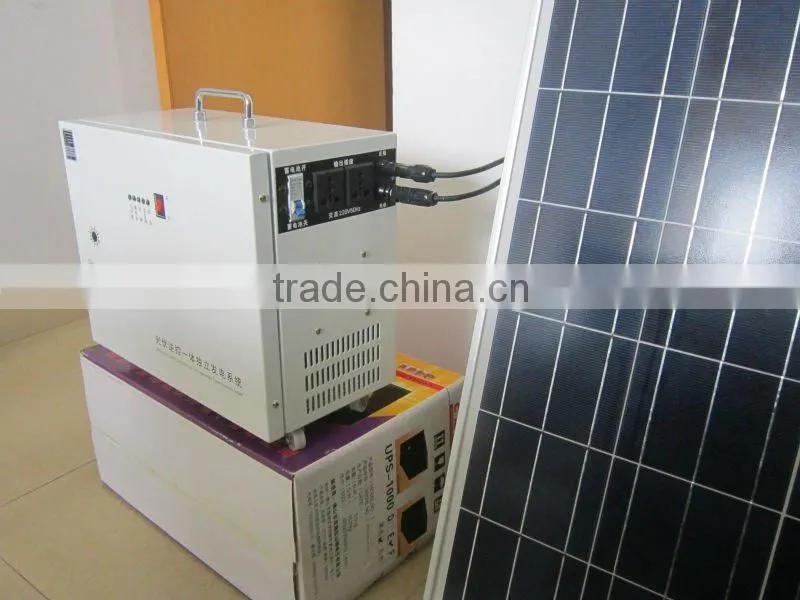

word /solar power system 3000VA protable one include inverter ,controller,battery,solar panel Quality Choice
- 3000 Piece / Pieces per Month
- GuangZhou
- T/T L/C D/P D/A Credit Card PayPal
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CAP | Model Number: | portable solar systems |
Output Power: | Other, 3000W | Output Type: | Single | Size: | 435*345*200mm3 |
Weight: | 22Kg | Input Voltage: | 12V/24V/48V | Output Voltage: | AC100V-120V AC 220V-240V |
Type: | Other, portable solar system | Output Frequency: | 50Hz | Output Current: | Load |
Product Description
portable home solar system
Specifications
This is a complete solar system for home or for trip. It is easy to carry and very convenient.
Solar Controller Inverter Battery all in one machinery. It can use directory after connecting with solar panel, and produce electric power.
MODEL | 100w | 350w | 600w | 1000w | 2000w | 3000w | |
Power Levels crated at nominal inputs | 100w | 350w | 600w | 1000w | 2000w | 3000w | |
Output Voltage | 100VAC 110VAC 120VAC 220VAC 230VAC 240VAC | ||||||
Phase | Single phase | ||||||
Voltage Waveform | Pure Sine Wave | ||||||
Power Factor | 0.6 | ||||||
Output Frequency(Synchronized to Mains) | Auto Select for 50/60Hz | ||||||
Regulation (Nominal) | 10%-18% | ||||||
Regulation(Battery mode) | ±0.1HZ | ||||||
Transfer time | 8ms Typical | ||||||
INPUT | |||||||
Nominal Voltage | 110V/120V Selectable | 220V/230V/240V Selectable | |||||
Phase | Single | ||||||
Voltage range | 90 - 145VAC or 170-280VAC ( Narrow Range ) | ||||||
50-145VAC / 90-280VAC (Wide Range) | |||||||
BATTERY | |||||||
Charger Current | 500VA/300W/12VDC:10 Amp + / - 1Amp;1000VA/600W/12VDC/:10Amp + / - 1Amp; 2000VA/1200W/12VDC:10 Amp + / - 1Amp | ||||||
Overcharge Protection | 500VA/300W: 15V +/- 0.3V charger stops and fault | ||||||
1000VA/600W:15V +/- 0.6V charger stops and fault | |||||||
2000VA/1200W: 30V +/- 0.6V charger stops and fault | |||||||
EFFICIENCY | |||||||
AC to AC | >95% |
DC to AC | >80% | ||
INDICATOR | |||
AC Mode | Green LED lighting | ||
Battery Mode | Yellow LED lighting | ||
Battery Charging Mode | Green LED flashing every 2 seconds | ||
Overload | Red LED flashing every 0.5 second | ||
Fault | Red LED lighting | ||
AUDIBLE ALARM | |||
Low Battery at Battery Mode | Sounding every 2 seconds | ||
Overload | Sounding every 0.5 second | ||
Fault | Continuously sounding | ||
Protection | |||
Full Protection | Deep Discharge, Overcharge, and Overload protection | ||
ENVIRONMENTAL AND SAFETY | |||
Operating Temperature | Up to 1500 meters:0 °C to 40°C (32°F to 104°F) | ||
Transit/storage Temp. | 15°C below zero to 50°C (5°F to 131°F) | ||
Relative Humidity | 0 - 90% non condensing | ||
power | 100w 350w 600w 1000w | 2000w 3000w | |
Size | 435*345*200mm | 515*445*380mm | |
Weight | 12kg | 18kg | |
Packing size | 600*350*210mm | 700*525*498mm | |
Gross weight | 17kg | 25kg |
