High Frequency Pure Sine Wave High Effeciency Inverter & WIND Controller Hybrid With LCD Dispaly

High Frequency Pure Sine Wave High Effeciency Inverter & WIND Controller Hybrid With LCD Dispaly thumbnail-1
High Frequency Pure Sine Wave High Effeciency Inverter & WIND Controller Hybrid With LCD Dispaly thumbnail-2
High Frequency Pure Sine Wave High Effeciency Inverter & WIND Controller Hybrid With LCD Dispaly thumbnail-3
High Frequency Pure Sine Wave High Effeciency Inverter & WIND Controller Hybrid With LCD Dispaly thumbnail-4
High Frequency Pure Sine Wave High Effeciency Inverter & WIND Controller Hybrid With LCD Dispaly thumbnail-5
High Frequency Pure Sine Wave High Effeciency Inverter & WIND Controller Hybrid With LCD Dispaly photo-1
High Frequency Pure Sine Wave High Effeciency Inverter & WIND Controller Hybrid With LCD Dispaly photo-2
High Frequency Pure Sine Wave High Effeciency Inverter & WIND Controller Hybrid With LCD Dispaly photo-3
High Frequency Pure Sine Wave High Effeciency Inverter & WIND Controller Hybrid With LCD Dispaly photo-4
High Frequency Pure Sine Wave High Effeciency Inverter & WIND Controller Hybrid With LCD Dispaly photo-5
US$ 94 - 226 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CAP
Model Number:
LMI-30
Contact Supplier Request Quote Chat Now
Guangzhou CAP Solar New Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CAP
Model Number LMI-30
Output Power Other, 4000VA
Output Type Single
Size 238*126*95mm
Weight 9.5kg
Input Voltage 48v
Output Voltage 220v
Type DC/AC Inverters
Output Frequency 50Hz/60Hz
Output Current 20A

high frequency pure sine wave high effeciency inverter & controller hybrid with  LCD dispaly

Specification:



NOTE: Inverters demand high current from the low voltage DC Energy Source, like a battery for instance, and due to this fact should NOT be connected to

the load output terminals of charge controllers (normally used in PV systems, for instance).

 Inverters have to be connected directly to the battery poles as indicated in this Manual.
1. Features
This power inverter represents the most advanced DC to AC conversion technology. It comes with a number of outstanding features, such as:
(1) Pure sine wave output (THD < 3%@ linear load).
(2) An intelligent solar charge controller and battery management system.
(3) High frequency technology, light and small.
lInput & output completely insulated design.
lHigh efficiency: max 90% Capable of driving inductive & capacitive loads from the
start moment.
l LED indicators display all operation status.

Tech data:





Model

LMI-1

LMI-3

LMI-5

LMI-10

LMI-15

LMI-20

LMI-30

LMI-40

LMI-50

LMI-60

Power Rating (W)

100

300

500

1000

1500

2000

3000

4000

5000

6000

Battery Voltage (V)

12/24

12/24/48

24/48

24/48

Solar

Panel

Maximum Voltage (V)

25/50

50

100

100

Solar

Panel

Maximum Current (A)

20

40

60

70

Solar

Panel

MPPT Function

user option

Inverter

Output

Voltage (V)

220±3%

Inverter

Output

Frequency (Hz)

50±0.5

Inverter

Output

Wave Form

pure sine wave

Inverter

Output

THD (%)

≤ 3% for linear load,<5% for nonlinear load ,all of them in full load condition

Inverter

Output

Dynamic Response

Time (ms)

<10

Inverter

Output

Efficiency (%)

Max 90%

Inverter

Output

Overload Capacity

overload 120% or short circuit automatically shut off the inverter, 1 second after automatic restart the inverter

Line complementary Input

220V/50Hz/60Hz

Line complementary output

DC priority design ,when battery voltage is too low, the inverter output is turned by line bypass output to load

User option

DC

Output

USB Power Supply

User option

DC

Output

12V DC Power Supply

Operating Temperature(°C)

-40 — +50

Type of Cooling

temperature control forced ventilation

Relative Humidity (%)

0-90% non-condensate

Indication LED Indicator

solar panel (blue), battery normal (yellow , when battery capacity left 10% ,the yellow LED will flash ), battery

failure(red), power start (green/red ,if you use manned ,the green LED light ,if you use atomic ,the red LED light ),

inverter normal (yellow), line normal (green)

Protection Function

output overload and short circuit, battery low voltage and over charging protection, solar panel Polarity reverse

connect protection, overheating protection, lightning protection

Cooling

By automatic control fan cooling

Physical Size (LW×H)(cm)

14*9*3

23.8*12.6*9.5

45*25*11.3

63*25*13.8

Net Weight (Kg)

0.3

2.3

2.6

2.8

4.5

4.9

6.8

7.5

8.5

9

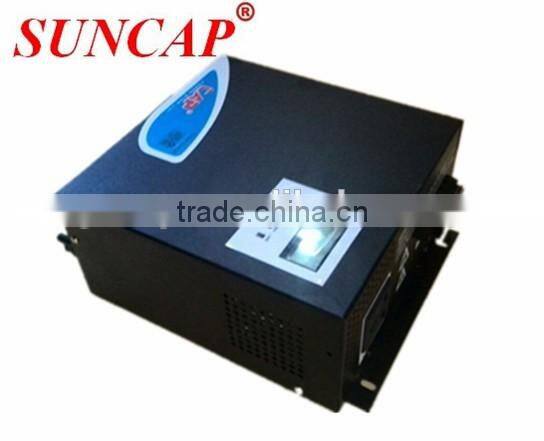

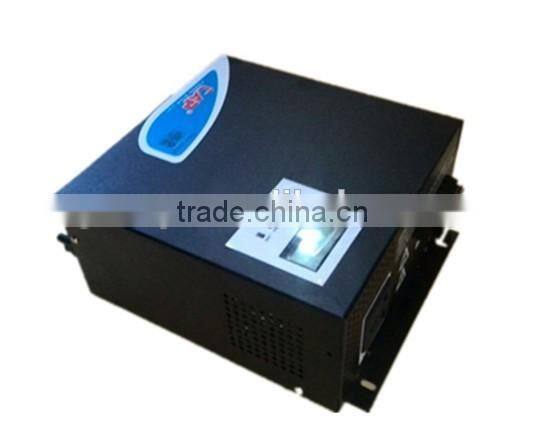

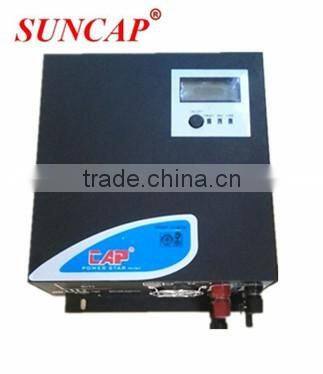

 high frequency pure sine wave high effeciency inverter & WIND controller hybrid with LCD dispalyhigh frequency pure sine wave high effeciency inverter & WIND controller hybrid with LCD dispalyhigh frequency pure sine wave high effeciency inverter & WIND controller hybrid with LCD dispaly
