Specifications
1.LED display2,inverter,controller,battery three in one
3,protection of over-load, short-circuit
4,protable solar system

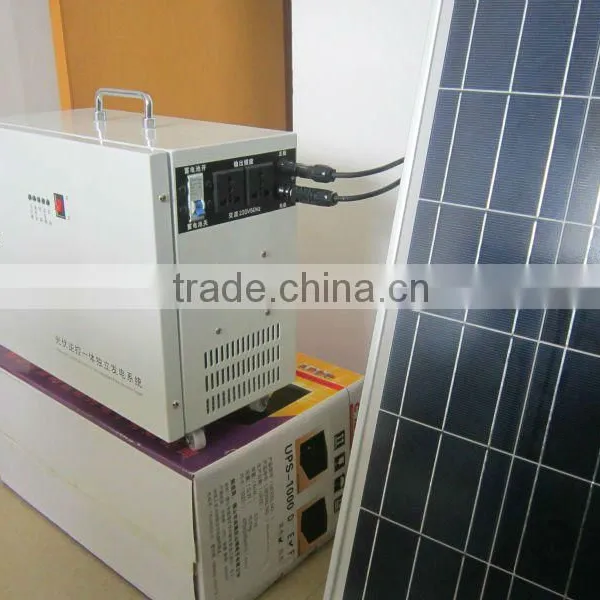

solar system inverter controller and battery three in one
Characteristics:
1. Modified sine wave output
2. Electricity - Battery automatic conversion
3. Different choice of input voltage range
4. High-frequency digital technology, MCU control, more stable capablity
5. High efficiency rate of DC - AC conversion, minimize energy loss
6.Tower design, can both stand up and lay down, can be placed flexibly
7. Equiped with super-charger, the maximum electricity can reach 8 A, and can charge for batteries with electricity over 100 AH
8.Intelligent charge control, can ensure the effective charging,but can not avoid excessive charging
9. Ultra-load protection
10. Restoration of electricity, automatically activated
11. Offline-charging functions (when the utility comes to normal, even if it is not turned on, the machine can still charge the battery)
12. Multi-functional LED indicator light and alarm device
2.Specification
MODEL |
115V Models |
230V Models |
OUTPUT | ||
Power Levels crated at nominal inputs |
500VA/300W;1000VA/600W;2000VA/1200W |
500VA/300W;1000VA/600W;2000VA/1200W |
Output Voltage |
120V |
230V |
Phase |
Singthree phase |
|
Voltage Waveform |
Pure Sine Wave |
|
Power Factor |
0.6 |
|
Output Frequency(Synchronized to Mains) |
Auto Select for 50/60Hz |
|
Regulation (Nominal) |
10%-18% |
|
Regulation(Battery mode) |
±0.1HZ |
|
Transfer time |
8ms Typical |
|
INPUT | ||
Nominal Voltage |
110V/120V Selectable |
220V/230V/240V Selectable |
Phase |
Single |
|
Voltage range |
90 - 145VAC or 170-280VAC ( Narrow Range ) |
|
50-145VAC / 90-280VAC (Wide Range) | ||
BATTERY | ||
Charger Current |
500VA/300W/12VDC:10 Amp + / -
1Amp;1000VA/600W/12VDC/:10Amp + / -
1Amp; 2000VA/1200W/24VDC:10 Amp + / - 1Amp |
|
Overcharge Protection |
500VA/300W: 15V +/- 0.3V charger stops and fault |
|
1000VA/600W:15V +/- 0.6V charger stops and fault | ||
2000VA/1200W: 30V +/- 0.6V charger stops and fault | ||
EFFICIENCY | ||
AC to AC |
>95% |
|
DC to AC |
>80% |
|
INDICATOR | ||
AC Mode |
Green LED lighting |
|
Battery Mode |
Yellow LED lighting |
|
Battery Charging Mode |
Green LED flashing every 2 seconds |
|
Overload |
Red LED flashing every 0.5 second |
|
Fault |
Red LED lighting |
|
AUDIBLE ALARM | ||
Low Battery at Battery Mode |
Sounding every 2 seconds |
|
Overload |
Sounding every 0.5 second |
|
Fault |
Continously sounding |
|
Protection | ||
Full Rrotection |
Deep Discharge, Overcharge, and Overload protection |
|
ENVIRONMENTAL AND SAFETY | ||
Operating Temperature |
Up to 1500 meters:0 °C to 40°C (32°F to 104°F) |
|
Transit/storage Temp. |
15°C below zero to 50°C (5°F to 131°F) |
|
Relative Humidity |
0 - 90% non condensing |
|
Quality control system |
ISO 9001:2000, ISO 14002-2004 |
|
PHYSICAL | ||
Appearance |
224 x 255 x 80 |
|
500VA / 300W: 1.8kg ;1000VA /600W :2.0kg ; 2000VA / 1200W :2.5kg | ||
414*311*560(3pcs) | ||
500VA / 300W:7.4kg ; | ||
any questions pls feel free to contact me
Skype:capsolar4
