Specifications
1.Combination of high efficicncy solar panel2.Certifications TUV Intercert, CE
3.Proven materials,tempered front glass.

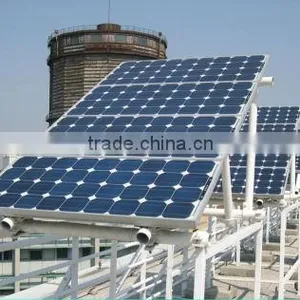

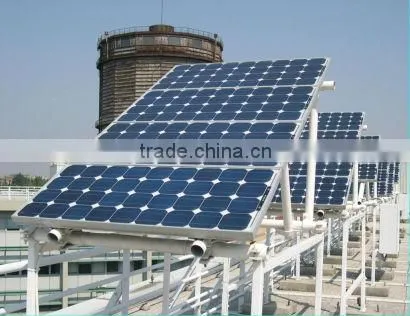

42w mono solar panel
Characteristics
1,High and stable conversion efficienly based on over 4 years professional experience
2 ,High reliability with guaranteed +/-10% output power tolerance
3,Proven materials,tempered front glass,and a sturdy anodized aluminum frame allow modules to operate reliably in multiple mountily configurations
4,Combination of high efficicncy and attractive appearance
Quality and Safety
1,25 year 80%,10 year 90% power warranty 3 year power warranty
2,ISO9001:2000 (Quality Management system) certified factory
3,Product Quality warranty & products Liability Insurance to guarantee and user' benefits
4,Certifications TUV Intercert, CE Temperature Coefficients
Temperature Coefficients
NOCT |
45+/-2°C |
|
Voltage temperature coefficient(Voc) |
-0.36%/°C |
|
Current temperature coefficient(Isc) |
+0.033%/°C |
|
Power temperature coefficient(Pmpp) |
-0.44%/°C |
|
Minimum power tolerance |
+/-10% |
(NOCT:Nominal Operating cell Temperature)
Mechanical Data
Solar Cells |
Mono-crystalline 125*125mm |
Front Glass |
3.2mm tempered |
Junction Box |
IP 65 rated |
Output Cables |
900mm length cable/compliable with MC 3 or MC 4 connectors |
Frame |
Anodized aluminium |
Technical specifications
Model |
OYD26W |
OYD30W |
OYD32W |
OYD38W |
OYD42W |
Nominal peak power(Wp) |
26W |
30W |
32W |
38W |
42W |
Nominal voltage(Vmp) |
17.2V |
17.2V |
17.2V |
17.2V |
17.2V |
Nominal current(Imp) |
1.51A |
1.74A |
1.86A |
2.20A |
2.33A |
Open circuit voltage(Voc) |
21.6V |
21.6V |
21.6V |
21.6V |
21.6V |
Short circuit current(Isc) |
1.72A |
1.93A |
2.06A |
2.51A |
2.65A |
Module efficiency |
10.2% |
11.7% |
12.3% |
11.3% |
11.9% |
Weight |
4kg |
4kg |
4kg |
4kg |
4kg |
Dimensions(mm) |
638*276*25 |
634*534*35 |
|||
If you have any questions feel free to contact me .
Skype: capsolar4
