US$ 219 - 614 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
cap
Model Number:
1000w, solar power system
Contact Supplier Request Quote Chat Now
Guangzhou CAP Solar New Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name cap
Model Number 1000w, solar power system
Specification Normal
Application Home
Output Voltage (V) 24v
Work Time (h) 12hous

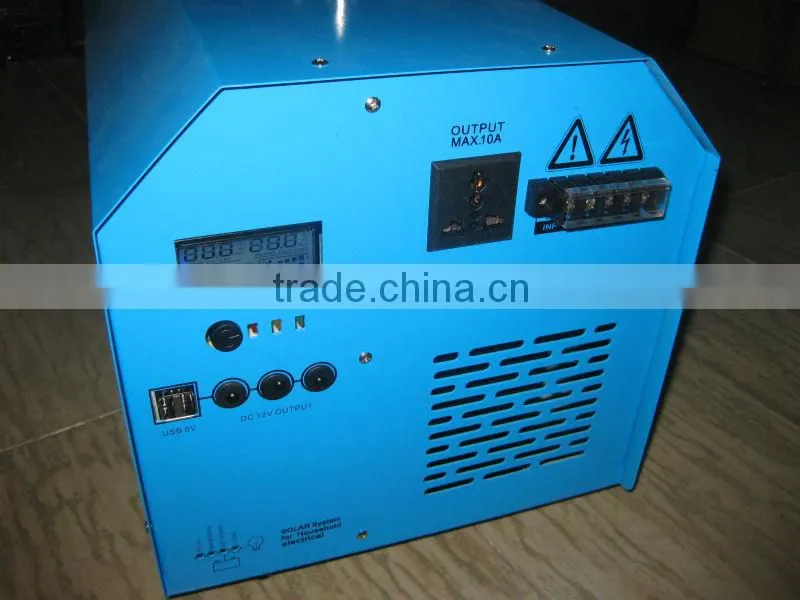

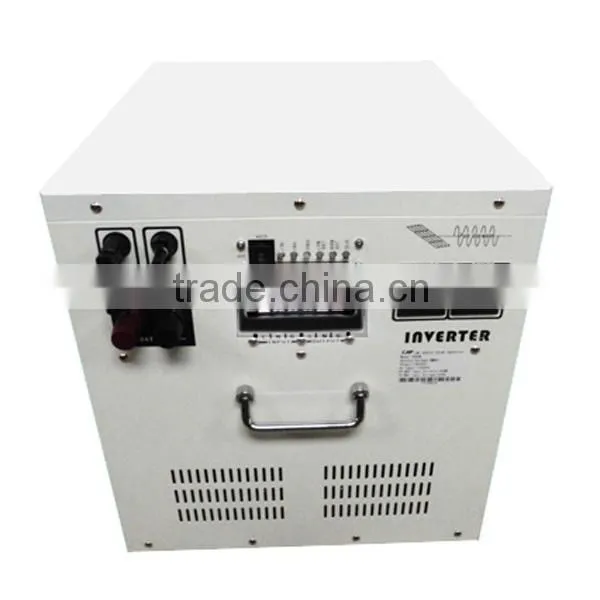

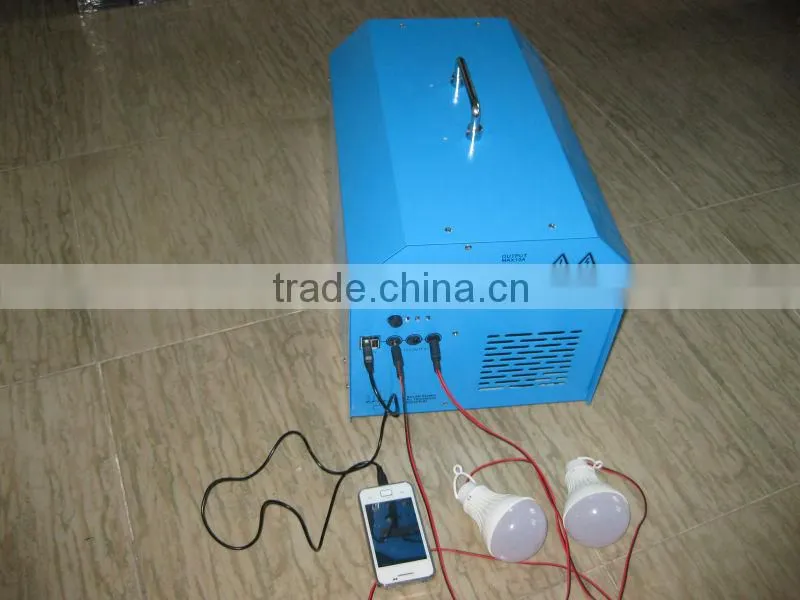

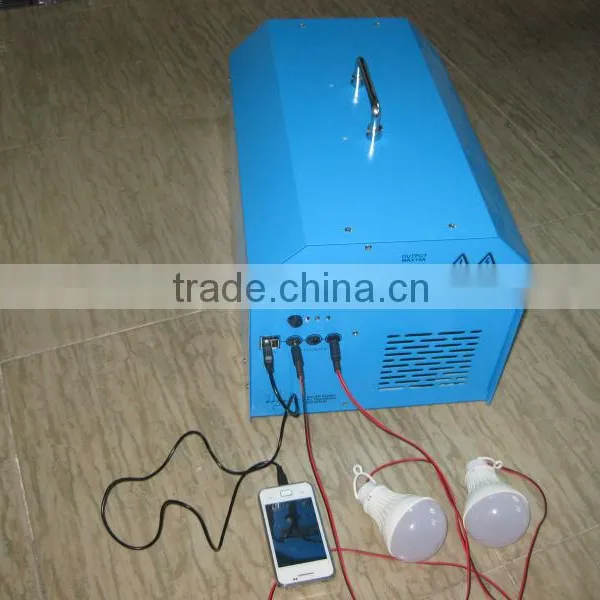

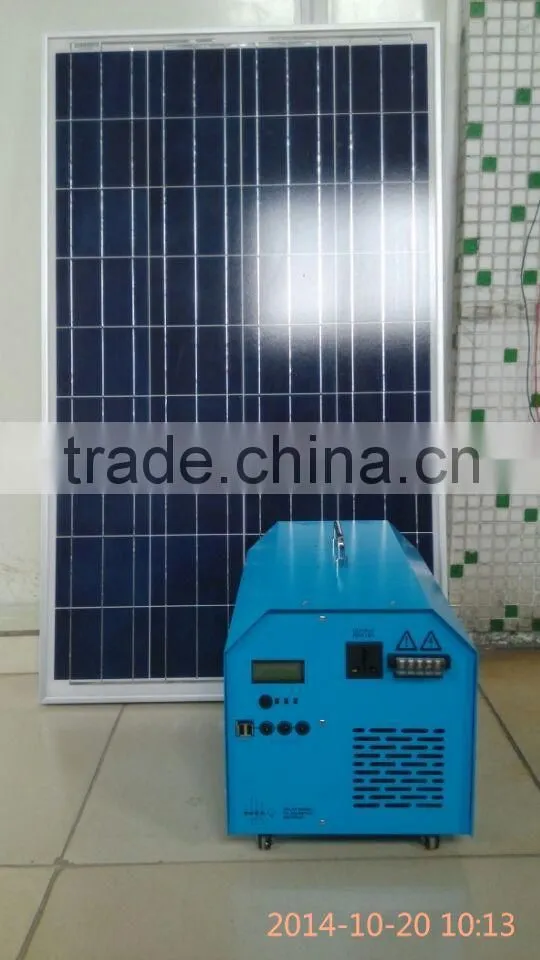

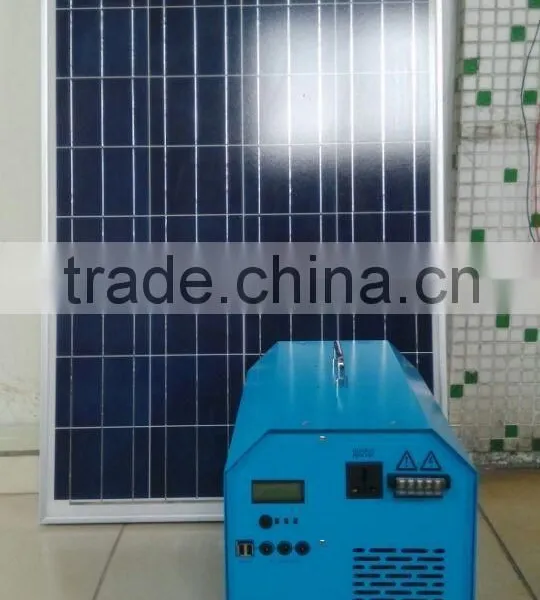

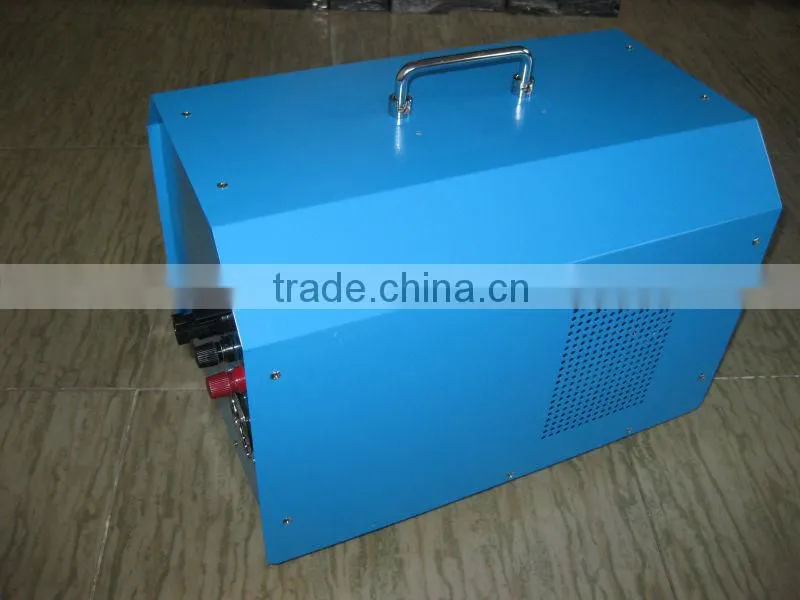

   home solar power system off grid solar power system

1. Modified sine wave output

2. Electricity - Battery automatic conversion
3. Different choice of input voltage range
4. High-frequency digital technology, MCU control, more stable capablity
5. High efficiecy rate of DC - AC conversion, minimize energy loss
6.Tower design, can both stand up and lay down, can be placed flexibly
7. Equiped with super-charger, the maximum electricity can reach 8 A, and can charge for batteries with electricity over 100 AH
8.Intelligent charge control, can ensure the effective charging,but can not avoid excessive charging
9. Ultra-load protection
10. Restoration of electricity, automatically activated
11. Offline-charging functions (when the utility comes to normal, even if it is not turned on, the machine can still charge the battery)
12. Multi-functional LED indicator light and alarm device







MODEL

110V Models

220V Models





OUTPUT





Power Levels crated at nominal inputs

500VA/300W;1000VA/600W;2000VA/1200W

500VA/300W;1000VA/600W;2000VA/1200W





Output Voltage

120V

230V





Phase

Singthree phase





Voltage Waveform

Pure Sine Wave





Power Factor

0.6





Output Frequency(Synchronized to Mains)

Auto Select for 50/60Hz





Regulation (Nominal)

10%-18%





Regulation(Battery mode)

±0.1HZ





Transfer time

8ms Typical





 INPUT





Nominal Voltage

110V/120V Selectable

220V/230V/240V Selectable





Phase

Single





Voltage range

90 - 145VAC or 170-280VAC ( Narrow Range )





50-145VAC / 90-280VAC (Wide Range)





BATTERY





Charger Current

500VA/300W/12VDC:10 Amp + / - 1Amp;1000VA/600W/12VDC/:10Amp + / - 1Amp; 2000VA/1200W/24VDC:10 Amp + / - 1Amp











Overcharge Protection

500VA/300W: 15V +/- 0.3V charger stops and fault



1000VA/600W:15V +/- 0.6V charger stops and fault









2000VA/1200W: 30V +/- 0.6V charger stops and fault









EFFICIENCY







AC to AC

>95%









DC to AC

 >80%









INDICATOR







AC Mode

Green LED lighting









Battery Mode

Yellow LED lighting









Battery Charging Mode

Green LED flashing every 2 seconds









 Overload

Red LED flashing every 0.5 second









Fault

Red LED lighting









AUDIBLE ALARM







Low Battery at Battery Mode

Sounding every 2 seconds









Overload

Sounding every 0.5 second









Fault

Continously sounding









Protection







Full Rrotection

Deep Discharge, Overcharge, and Overload protection









ENVIRONMENTAL AND SAFETY







Operating Temperature

Up to 1500 meters:0 °C to 40°C (32°F to 104°F)









Transit/storage Temp.

15°C below zero to 50°C (5°F to 131°F)









Relative Humidity

0 - 90% non condensing









Quality control system

ISO 9001:2000, ISO 14002-2004









PHYSICAL







Appearance

Size(mm)L x W x H

224 x 255 x 80









Weight(Kg)

500VA / 300W: 1.8kg ;1000VA /600W :2.0kg ;  2000VA / 1200W :2.5kg









Carton BOX(mm)L x W x H

414*311*560(3pcs)









 Gross Weight Weight(Kg)

500VA / 300W:7.4kg ;












Switch time

8ms(NARROW)

LED indicators

Utility mode

Green light

Battery mode

Yellow light

Over-load/fault
