Help CenterMono Solar Panel
Related Products
-
250w High Quality pv Solar Panel With Long Life for Home UseNegotiableMOQ: 10 Watts -
300w Poly Solar Panel Manufacturers in ChinaNegotiableMOQ: 10 Watts
-
Polycrystalline and Monocrystalline Solar Panel for Home Use 3w~300w CheaperNegotiableMOQ: 10 Watts
-
Polycrystalline Solar Panel for Solar System 65w 80w 100w 150w 200w 250w 300wNegotiableMOQ: 10 Watts
-
Portable Solar Panel System 1000w 2000w Use for Refrigerators and Air-conditioning Quality ChoiceNegotiableMOQ: 1 Piece
Specifications
Mono solar panelRapid delivery
High quality&low cost
High efficiency & high stability
solar panel
1) high efficency
2) easy to install
3) stand heavy rain and snow
4) lower price
| Model Number | CY-275 | CY-280 | CY-285 | CY-290 | CY-295 | CY-300 | |
| Maximum Power as per STC | Pmax(W) | 275 | 280 | 285 | 290 | 295 | 300 |
| Power Tolerance | % | ± 3% | |||||
| Maximum Power Voltage | Vm(V) | 36.43 | 36.56 | 36.72 | 36.79 | 36.93 | 37.15 |
| Maximum Power Current | Im(A) | 7.55 | 7.66 | 7.77 | 7.89 | 7.99 | 8.08 |
| Open Circuit Voltage | Voc(V) | 43.7 | 42.92 | 44.06 | 44.21 | 44.35 | 44.5 |
| Short Circuit Current | Isc(A) | 8.1 | 8.17 | 8.23 | 8.33 | 8.41 | 8.72 |
| Maximum System Voltage | VDC | 1000 | |||||
| Cell Efficiency | % | 15.8 | 16.1 | 16.4 | 16.7 | 17.0 | 17.3 |
| Module Efficiency | % | 14.2 | 14.5 | 14.7 | 15.0 | 15.2 | 15.5 |
| Cells per Module | Pcs | 72 | |||||
| Cell Type | Monocrystalline silicon | ||||||
| Cell Size | mm | 156 x 156 | |||||
| Bypass Diodes | Pcs | 12Amp, 6 pcs | |||||
| Max. Series Fuse Rating | A | 15A | |||||
| Temperature coefficient of Isc | % | 0.05 | |||||
| Temperature coefficient of Voc | % | -0.35 | |||||
| Temperature coefficient of power | % | -0.47 | |||||
| NOCT- Nominal operating cell temperature | 47 ± 2 degree | ||||||
| Operating Temperature | from -40 to +85 degree | ||||||
| MECHANICAL CHARACTERISTICS | |||||||
| Dimensions | mm | 1950x 990 x 50 | |||||
| Weight | Kg | 23.5 | |||||
| Type of Junction Box | TUV certified, IP65 | ||||||
| Cable Type, Diameter | TUV certified, 4mm 2, 90 cm in length | ||||||
| Connector | compatible to Type 4 (MC4) | ||||||
| Tempered Glass | 3.2 mm, high transmission, low iron | ||||||

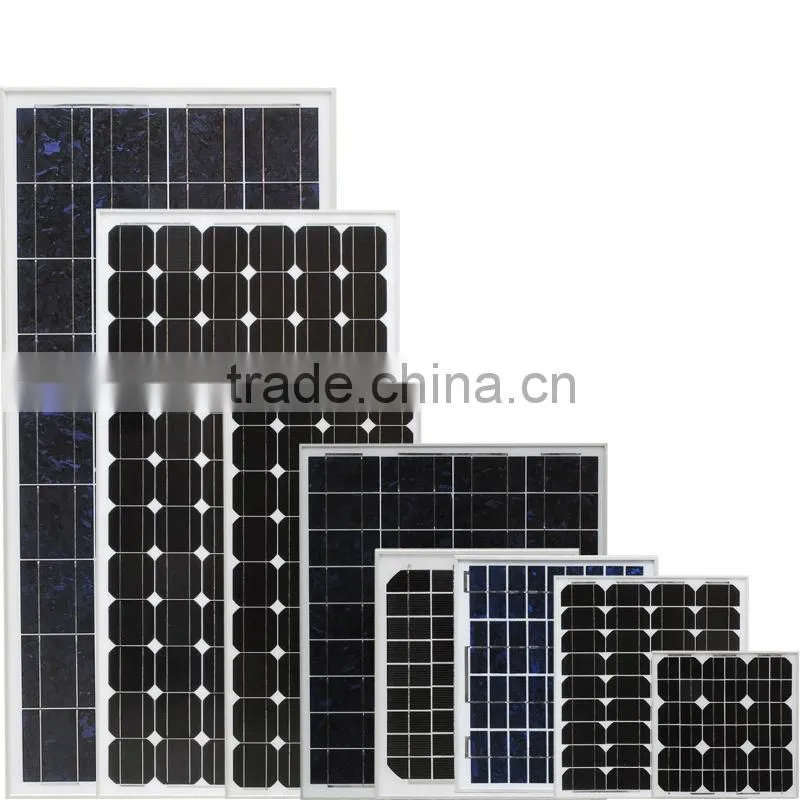

mono solar panel:
poly solar panel

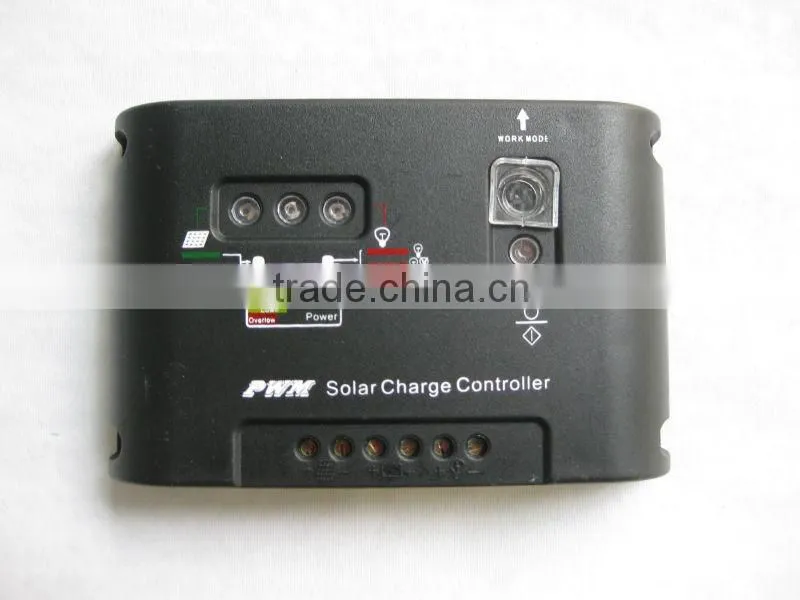

solar charge controller
We use the carton and inside use the foma to protect the solar panel.
usually we suggest coustomer to make the wooden frame.
Q:when i order,when u can send them to me?
A:after confirm the payment,we can send u the sample in 2 days. in quantity order,we 8-15days we can send the goods to u.
Q:will u lie to me?get the money and do not send the goods?
A:we are the factory,company,we do the business more than 10 years,and if over the delivery time have no any reason from us for delay,then u can complaint us on alibaba,and we will get the punishment from alibaba,then u can get your money back,and we will loss more than u had paid for us. so do not worry about we do not send the goods.
Any question pls feel free to contact me
Skype:capsolar4
Moblie:0086 -136-9741-3612
Wechat: kglin2008
Whatsapp: +86 13697413612
