12v 10w to 300w Poly Solar Panel Mono Solar Panel

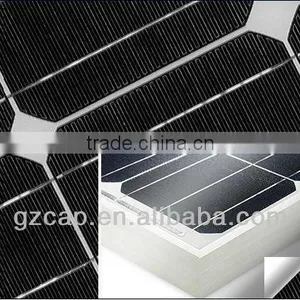

12v 10w to 300w Poly Solar Panel Mono Solar Panel thumbnail-1

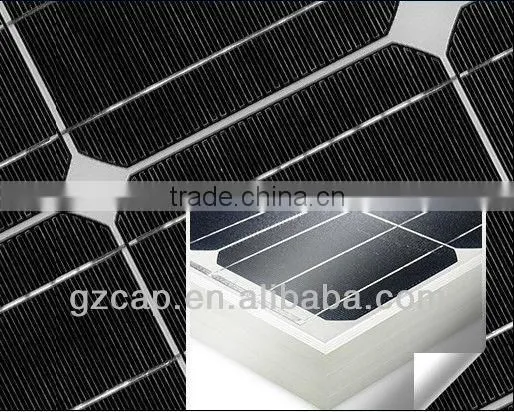

12v 10w to 300w Poly Solar Panel Mono Solar Panel photo-1
US$ 6 - 240 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CAP
Model Number:
5w-300w
Contact Supplier Request Quote Chat Now
Guangzhou CAP Solar New Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guang zhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CAP
Model Number 5w-300w
Specification Normal
Application Home
Output Voltage (V) 220v
Load Power (W) 300w
Solar Power (W) 50hz or 60 hz

Specifications

1) High reliability with guaranteed +/-3% output power
tolerance
2)The modules can withstand high wind-pressure

Solar Panel



1.High reliabiliy with guaranteed ± 3% output power tolerance.

2.The modules can withstand high wind-pressure, snow loads and extreme temperatures

3.Bypass diodes to minimize power loss with shading

4.High and stable conversion efficency to ensure the highest quality







Series

HL-A-190

Item

HL-A-185A

Max wattage

(Pm (w)

185W

Working voltage

Vm (v)

36.5V

Working currency

Im ( A )

5.05A

Voc (v )

Voc (v)

45.4V

Isc (A)

Isc (A)

5.41A

Chip dimensions

mm

(125×125)

Chip quantity



72

Testing standard



Standard situation AM1.5 1000W/ 25



Model  Peak Power Pm(W)  Maximum Power Voltage     Vm(V)  Maximum Power Current     Im(A) Open Circuit Voltage (Voc)V  Short Circuit Current Isc(A) 1580
CY-TD03-6 3 9 0.34 10.62 0.36 240*165*25
CY-TD05-6 5 9 0.56 10.62 0.61 270*235*25
CY -TD10 10 18 0.55 21.24 0.6 350*290*25
CY -TD15 15 18 0.84 21.24 0.91 420*350*25
CY -TD20 20 18 1.12 21.24 1.22 535*350*35
CY -TD25 25 18 1.39 21.24 1.52 525*445*35
CY -TD30 30 18 1.67 21.24 1.83 535*515*35
CY -TD35 35 18 1.95 21.24 2.13 625*535*35
CY -TD40 40 18 2.23 21.24 2.45 625*535*35
CY -TD50 50 18 2.78 21.24 3.05 805*535*35
CY -TD55 55 18 3.06 21.24 3.36 805*535*35
CY -TD60 60 18 3.34 21.24 3.66 805*535*35
CY -TD70 70 18 3.89 21.24 4.27 1190*540*35
CY -TD75 75 18 4.17 21.24 4.58 1190*540*35
CY -TD80 80 18 4.45 21.24 4.88 1190*540*35
CY -TD85 85 18 4.73 21.24 5.19 1190*540*35
CY -TD100 100 18 5.56 21.24 6.1 1060*805*35
CY -TD120 120 18 6.67 21.24 7.33 1060*805*35
CY -TD130 130 18 7.23 21.24 7.9 1480*680*35
CY -TD150 150 36 4.17 42.48 4.58 1580*805*50
CY -TD160 160 36 4.45 42.48 4.88 1580*805*50
CY -TD165 165 36 4.59 42.48 5.04 1580*805*50
CY -TD170 170 36 4.73 42.48 5.19 1580*805*50
CY -TD175 175 36 4.86 42.48 5.34 1580*805*50
CY -TD180 180 36 5.00 42.48 5.5 1580*805*50
CY -TD190 190 46.46 4.09 57.12 4.41 1580*1050*50
CY -TD200 200 46.46 4.30 57.12 4.65 1580*1050*50
CY -TD210 210 46.46 4.52 57.12 4.88 1580*1050*50
CY -TD220 220 46.46 4.09 57.12 4.41 1580*1050*50
CY -TD230 230 36 6.39 42.48 7.02 1950*995*50
CY -TD250 250 36 6.95 42.48 7.64 1950*995*50
CY -TD260 260 36 7.23 42.48 7.94 1950*995*50
CY -TD280 280 36 7.78 42.48 8.55 1950*995*50

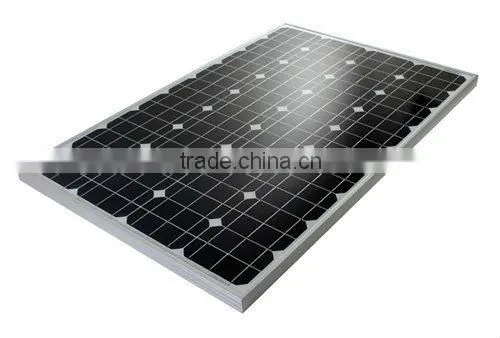

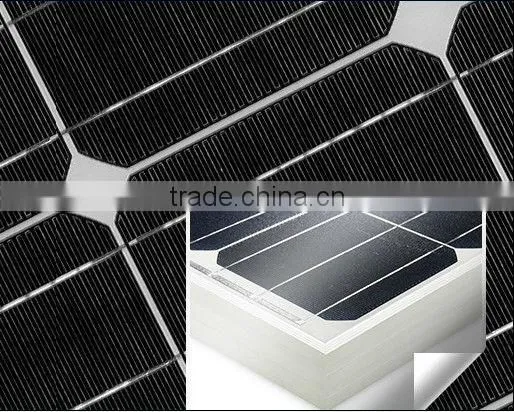

 12v 10w to 300w poly solar panel mono solar panel12v 10w to 300w poly solar panel mono solar panel12v 10w to 300w poly solar panel mono solar panel
