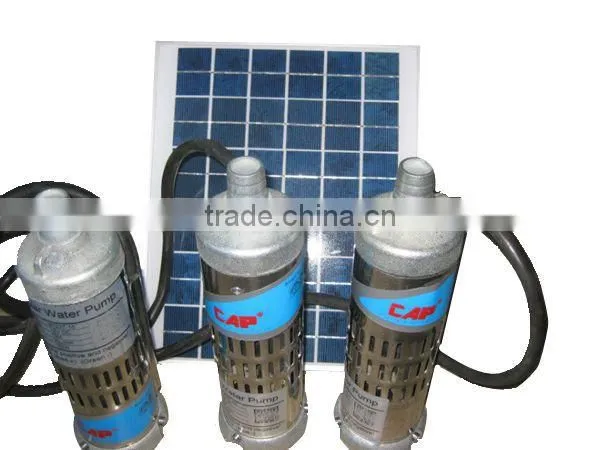

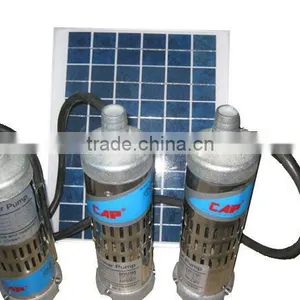

SOLAR Water Pump Specifications 12V 24V 48V

Feature:

a)Range of work volt: 10v-20v(3T series) ,38v-96v(10T&20T series)

b)Inbuilt mppt tracking,can improve 45% work efficiency.

c)Over volt and low volt protection,the pump will stop when the over volt and low volt,ten minus self-testing for once,will auto restart when the volt recover.

d)The dc solar pump can connect the solar panel direct,do not need the solar inverter and controller.

e)Pass CE certificate

Remind: the solar pump can not work lack of water situation,

3T series solar pump

flow

water inlet

    water outlet

level of protection

rotate speed

3m3/hour

76 mm

25mm

IP68

  3000 /rpm

12V

 Model

head of delivery

power load

dimension

cable length

(M)

(W)

(mm)

(M)

M123T-10

10

132

300*76

2

M123T-20

20

264

450*76

5

M123T-30

30

396

600*76

5

24V

M243T-10

10

192

300*76

2

M243T-20

20

384

450*76

5

M243T-30

30

576

600*76

5

M243T-40

40

768

760*76

5

M243T-50

50

960

910*76

5

M243T-60

60

1152

1060*76

5

M243T-70

70

1344

1210*76

5

M243T-80

80

1536

1360*76

5

M243T-90

90

1728

1520*76

5

M243T-100

100

1920

1670*76

5

10T Series solar pump

flow

water inlet

   water outlet

level of protection

rotate speed

10m3/hour

140 mm

62 mm

IP68

3000 /rpm

Model

head of delivery

power load

 volt

cable length

(M)

(W)

  (V)

  (M)

M4810T-10

10

480

48

2

M4810T-20

20

960

48

5

M4810T-30

30

1440

48

5

M4810T-60

60

2880

48

5

M4810T-90

90

4320

48

5

M4810T-120

120

5760

48

5

20T Series solar pump

flow

water inlet

  water outlet

level of protection

rotate speed

Model

head of delivery

power load

 volt

cable length

(M)

(W)

  (V)

  (M)

M4820T-10

10

720

48

2

M4820T-20

20

1440

48

5

M4820T-40

40

2880

48

5

M4820T-60

60

4320

48

5

M4820T-80

80

5760

48

5

M4820T-100

100

7200

48

5
