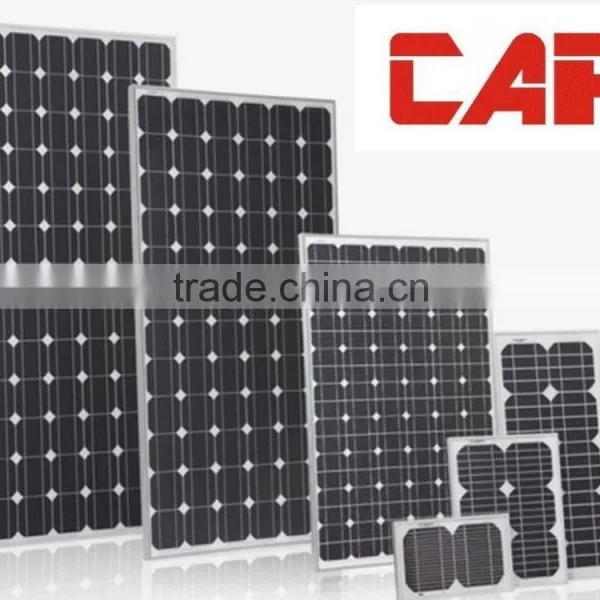

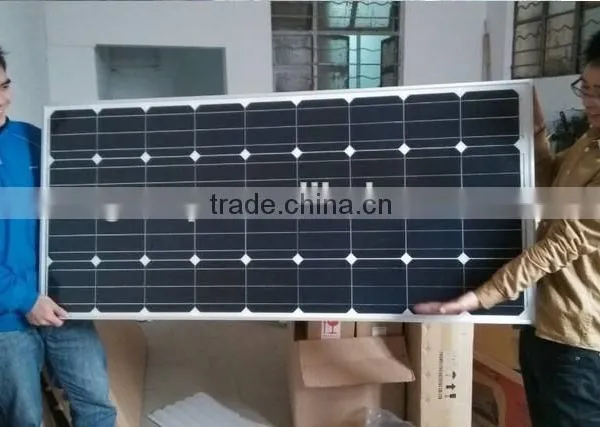

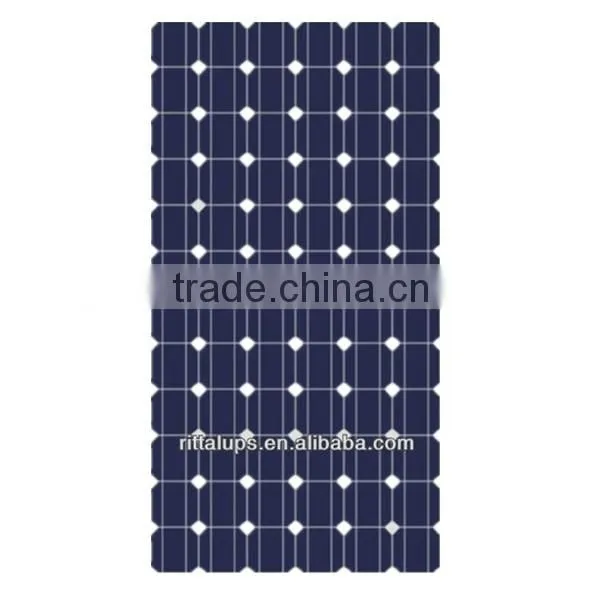

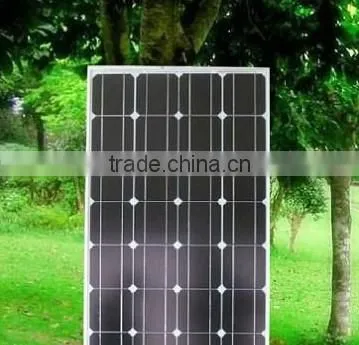

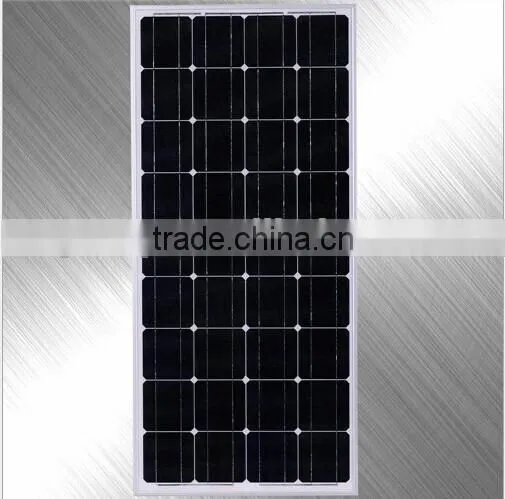

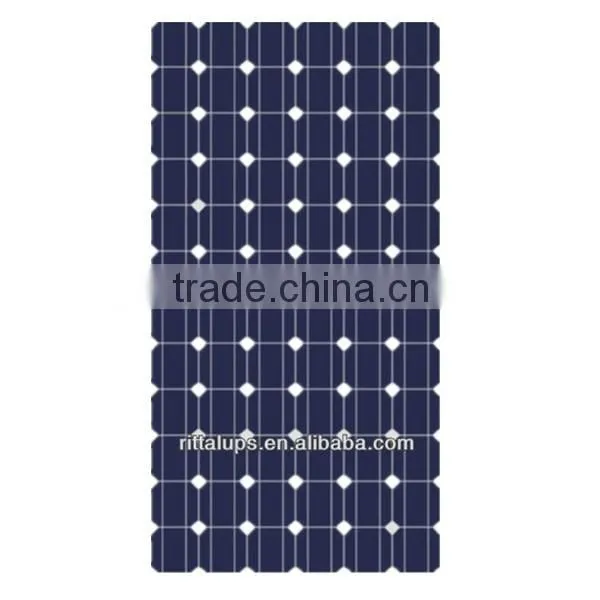

China supplier solar panel 3w~300w
Features:
1. High efficient solar cells ensure high performance and more power under same condition.
2. High reliability with guaranteed +3% output power tolerance;
3. 3.2mm high-transparent low-iron toughened glass, EVA laminate and water-proof TPT yield long life modules while enhancing cell performance.
4. Stable, heavy duty anodized aluminum frames with convenient mounting-access, for high wind pressure and snow load.
5. Bypass diodes to avoid hot-spot effect.
6. The backside of frames is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame through and freeze or even bend the frame in cold season.
7. Comply with standard.
8.Produced under systemic quality control covering all processes and factors.
Performance Assurance:
1) 5 years warranty for PV module, materials and corresponding fittings;
2) 90% output of rated power after 10 years;
3) 80% output of rated power after 25 years under Standard Test Conditions;
Other Products and OEM
Our related products: solar panel system, solar street light, solar lamn lamp, solar yard light. Please visit our company page for more on info. We offer OEM service too, contact us for further info.
Specification:
Module Type |
100w |
150w |
200w |
250w |
300w |
|
Maximum Power at ST(Pmax)W |
100wp |
150wp |
200wp |
250wp |
300wp |
|
Maximum Power Voltage(Vmp)V |
36/18 |
36/18 |
36/18 |
30.8v |
36/18 |
|
Maximum Power Current(Imp)A |
2.77/5.55 |
4.16/8.33 |
5.55/11.1 |
8.11A |
8.33/16.66 |
|
Open Circuit Voltage(Voc)V |
39.5/19.05 |
39.3/19.4 |
39.6/19.5 |
36.2V |
39.6/19.8 |
|
Short Circuit Current(Isc)A |
3.04/6.09 |
4.58/9.16 |
6.1/12.2 |
8.7A |
9.16/18.33 |
Cell Efficiency(%) |
18.60% |
18.10% |
18.60% |
17.80% |
18.10% |
|
Module Efficiency(%) |
17.70% |
17.20% |
17.70% |
17.10% |
17.20% |
|
Operating Temperature°C |
-40°C to +85°C |
-40°C to +85°C |
-40°C to +85°C |
-40°C to +85°C |
-40°C to +85°C |
|
Maximum system voltage |
1000V(IEC)DC |
1000V(IEC)DC |
1000V(IEC)DC |
1000V(IEC)DC |
1000V(IEC)DC |
|
Power tolerance |
+-3% |
+-3% |
+-3% |
+-3% |
+-3% |
|
Temperature coefficients of Pmax |
-0.45%/°C |
-0.45%/°C |
-0.45%/°C |
-0.45%/°C |
-0.45%/°C |
|
Temperature coefficients of Voc |
-0.27%/°C |
-0.27%/°C |
-0.27%/°C |
-0.27%/°C |
-0.27%/°C |
|
Temperature coefficients of Isc |
0.05%/°C |
0.05%/°C |
0.05%/°C |
0.05%/°C |
0.05%/°C |
Weight(kg) |
8 |
11 |
14 |
20 |
25.5 |
|
Number of cell(pcs) |
4*9 |
4*9 |
6*10 |
6*12 |
6*12 |
Dimensions(mm) |
1194*534*35/30 |
1580*808*50/35 |
1471*670*40/35 |
1640*992*50 |
1920*100*50 |
