Electrical Release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift

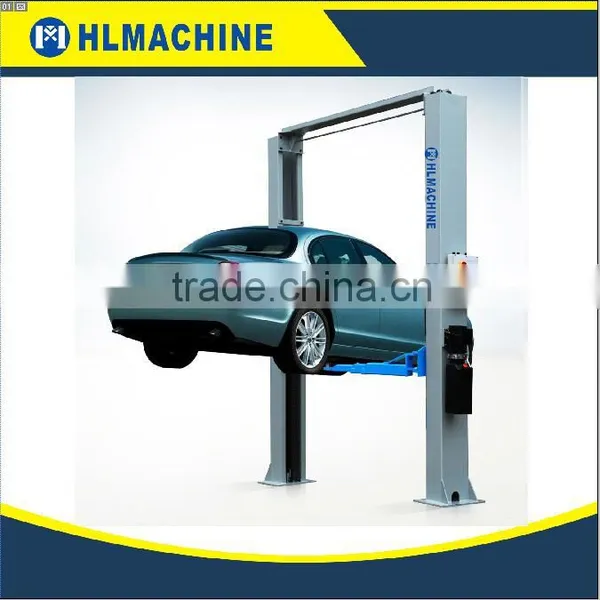

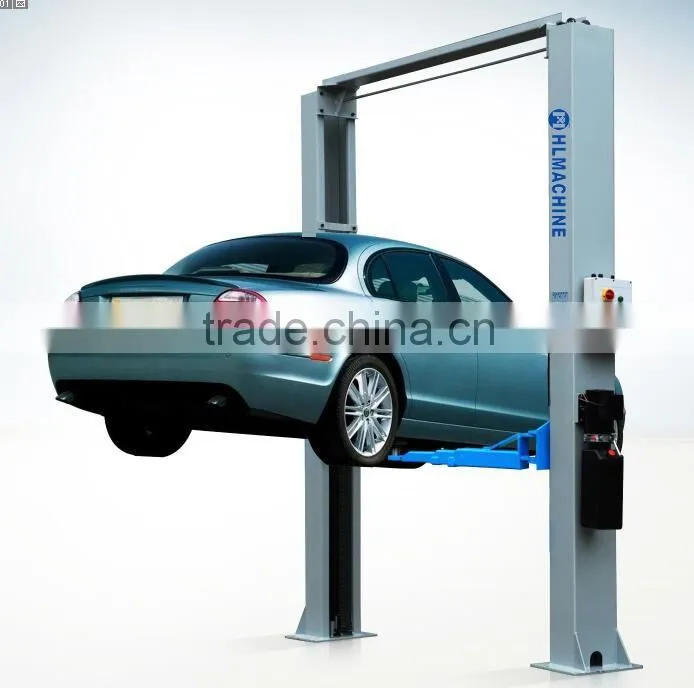

Electrical Release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift photo-1
Electrical Release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift photo-2
Electrical Release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift photo-3
Electrical Release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift photo-4
Electrical Release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift photo-5
Electrical Release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Design:
Two Post
Type:
Double Cylinder Hydraulic Lift
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou port Zhuhai port
Delivery Detail:
Delivery time depends on order quantity.
Design Two Post
Type Double Cylinder Hydraulic Lift
Certification CE
Lifting Capacity 4000kg
Lifting Height(mm) 1850mm
Overall Width(mm) 3300mm
Place of Origin Guangdong, China
Brand Name MONHEN
Model Number HL-M2-9CAT/HL-M2-10CT/HL-M2-11CT
Warranty 1 Years

Technical Details and the advantages:



1) Stable lifting system with double hydraulic cylinder drive.



2) Double insurance lock protection device.



3) Chain lifting system.



4) Wire rope steady system.



5) The power device can be mounted on either side of the lifting machine.



6) Distance between columns is spacious.



7) Easy to use with 220v and 380v optional power choice.



electrical release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift

Product Description:

1) Adjustable lifting adaptor.



2) 120% dynamic and 150% static loading test.



3) IP54 ABS control box with 24v operation voltage.



4) Preset rated loading pressure avoid overloading.



5) Inside width 2720mm suitable for wide vehicles like SUV, MPV etc.



6) With multifunctional hydraulic valve board, can be released when power down.



7) Lifting height 1850mm, suitable for different operators.



8) Professional powder coating.



9) Rubber pad door protection and toe protection.



10) Explosion-proof valve.

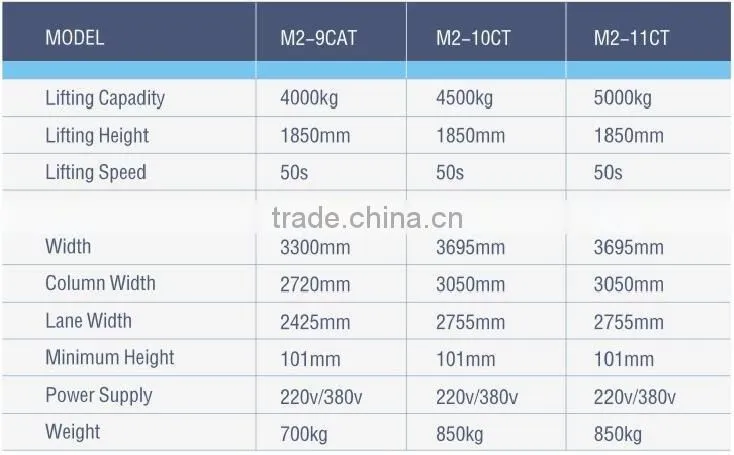

Dimension Diagram :

electrical release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift



Design Sketches:

electrical release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Liftelectrical release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift



Detailed Images

electrical release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift

        High-performance hydraulic pump station                              Crash-proof cushions and ribs

electrical release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift

                                    Two tray                                                                                            Three tray

electrical release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift

Plate extension arm lock: safe and easy

operation with double insurance protection device.



Packaging & Delivery

electrical release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift



Factory Show

electrical release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift



Our products on car maintenance point:

electrical release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift

CE Cerfication:

electrical release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift

Our other main products:

electrical release Car Lift Two Post Car Lift Double Cylinder Hydraulic Auto Lift Mobile Auto Lift



Thanks for your reading, if you have any questions or want more informations, please feel free to contact us.

Mobile/whatsapp: + 86 18820763611

Skype: Johnywen123
