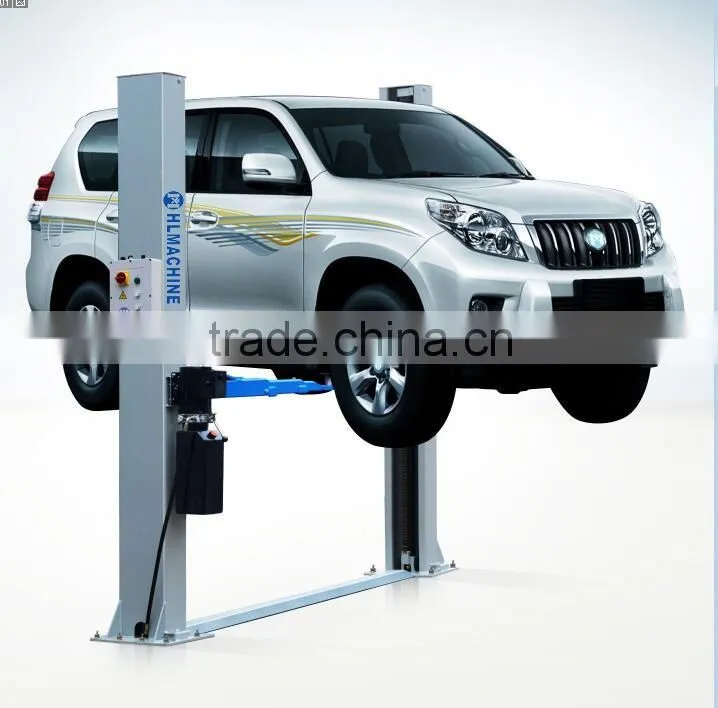

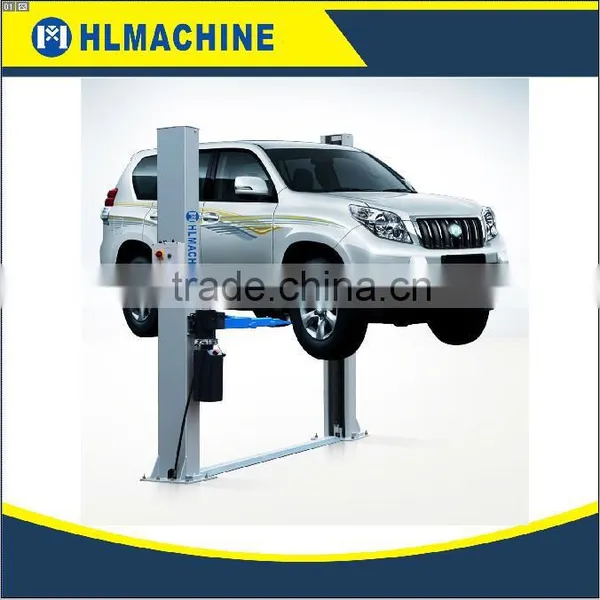

Two Post Automobile Mobile Double Cylinder Hydraulic Lift
- 200 Carton / Cartons per Month
- Guangzhou port Zhuhai port
- T/T L/C D/P D/A
Product Details
Design: | Two Post | Type: | Double Cylinder Hydraulic Lift | Certification: | CE |
Lifting Capacity: | 4000kg | Lifting Height(mm): | 1850mm | Overall Width(mm): | 3300MM~3695MM |
Place of Origin: | Guangdong, China | Brand Name: | Heli | Model Number: | HL-M2-9T/HL-M2-10T/HL-M2-11T |
Warranty: | 1 Years |
Product Description
Technical Details and the advantages:
1) Stable lifting system with double hydraulic cylinder drive.
2) Double insurance lock protection device.
3) Chain lifting system.
4) Wire rope steady system.
5) The power device can be mounted on either side of the lifting machine.
6) Distance between columns is spacious.
7) Easy to use with 220v and 380v optional power choice.
Product Description:
1) Adjustable lifting adaptor.
2) 120% dynamic and 150% static loading test.
3) IP54 ABS control box with 24v operation voltage.
4) Preset rated loading pressure avoid overloading.
5) Inside width 2720mm suitable for wide vehicles like SUV, MPV etc.
6) With multifunctional hydraulic valve board, can be released when power down.
7) Lifting height 1850mm, suitable for different operators.
8) Professional powder coating.
9) Rubber pad door protection and toe protection.
10) Explosion-proof valve.

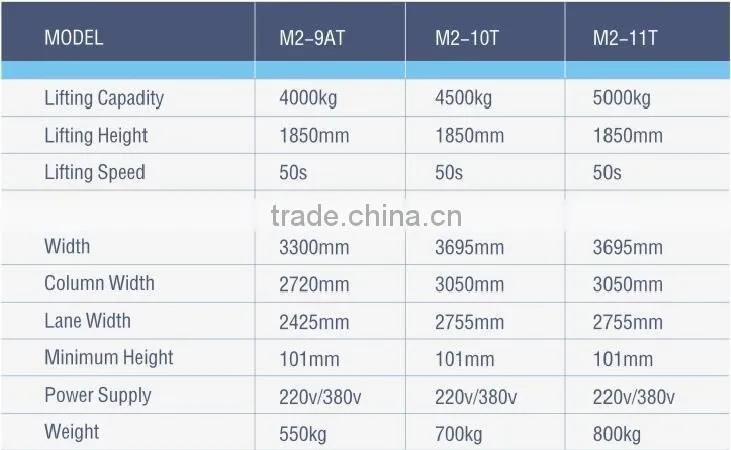

Dimension Diagram :
Design Sketches:
Detailed Images
High-performance hydraulic pump station Crash-proof cushions and ribs
Two tray Three tray
Plate extension arm lock: safe and easy
operation with double insurance protection device.
Packaging & Delivery
Factory Show
Our products on car maintenance point:
CE Cerfication:
Our other main products:
Thanks for your reading, if you have any questions or want more informations, please feel free to contact us.
Mobile/whatsapp/wechats: + 86 18820763611
Skype: Johnywen123
