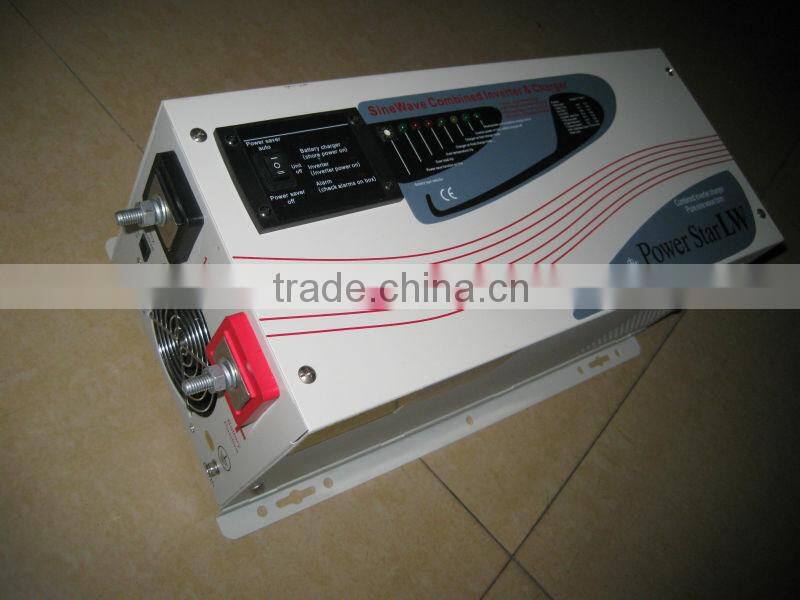

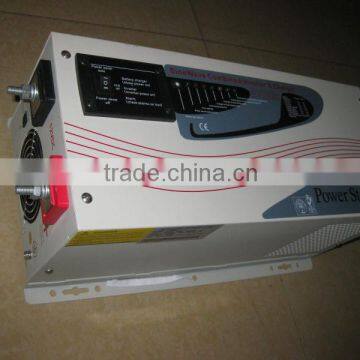

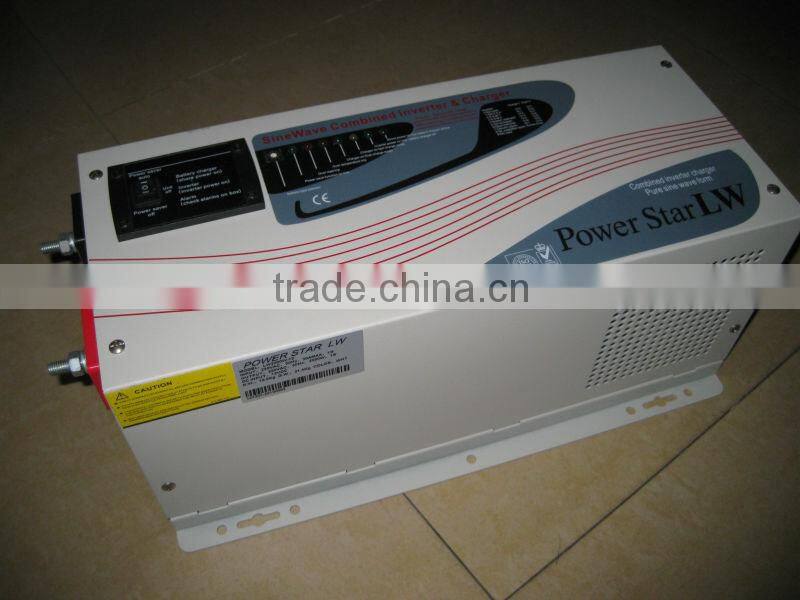

4000w 5000w 6000w off Grid Solar Inveter DC to AC Solar Inverter Low Frequency Quality Choice

4000w 5000w 6000w off Grid Solar Inveter DC to AC Solar Inverter Low Frequency Quality Choice thumbnail-1
4000w 5000w 6000w off Grid Solar Inveter DC to AC Solar Inverter Low Frequency Quality Choice photo-1
US$ 150 - 450 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CAP
Model Number:
5000W
Contact Supplier Request Quote Chat Now
Guangzhou CAP Solar New Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CAP
Model Number 5000W
Output Power 1 - 200KW
Output Type Single
Size 598x218x179
Weight 40
Input Voltage 24v 48v
Output Voltage 220V
Type DC/DC Converters
Output Frequency 50hz/60hz

Specifications

1,Pure sine wave output
2,Available for sensitive load
3.safe for high voltage

4kw 5kw 6kw Pure sine wave low frequency off gird solar power inverter

Range: 1kw 2kw 3kw 4kw 5kw 6kw  DC input: 12v 24v 48v



Features:

  • Pure sine wave output, available for sensitive load
  • Fast and powerful charger with 30A and 70A
  • Accept generator’s energy output
  • High power factor
  • Automatically transfer between battery and line modes
  • Microprocessor control guarantees high reliability
  • Bypass without battery connected
  • Remote control function



Protection against:

  • Over load, over temperature, over charging, low battery
  • Reverse connection(optional by hard connector)
  • blackouts





Technical Specifications:



Model No.

10001(2)

20001(2,4)

30001(2,4)

40002(4)

50002(4)

60002(4)
Nominal Power

1000W

2000W

3000W

4000W

5000W

6000W
AC Input
Phase & waveform Single phase & sinewave
Voltage 120VAC/230VAC
Acceptable Voltage 194-243VAC164-243VAC(wide mode)
Line Low Transfer 85V±4%/184(154 wide mode±4%)
Line Low Return 95V±4%/194(164 wide mode±4%)
Line high Transfer 135V±4%/253±4%
Line high Return 127V±4%/243±4%
Frequency 50Hz or 60Hz (auto sensing)
Line Low Transfer 47Hz for 50Hz,57Hz for 60Hz
Line high Transfer 55Hz for 50Hz,65Hz for 60Hz
Output
Phase & waveform Single phase & sinewave(bypass mode sync to input)
Voltage 230VAC(bypass mode sync to input)
Voltage Regulation ±10%rms(bypass mode sync to input)
Frequency 50Hz±0.3Hz(bypass mode sync to input)
Crest Power 3 times of ratings
Short Circuit Protection Yes,shutdown after 10 minutes
Power Factor 0.9-1.0
DC Input
Battery Voltage

12V/24V

12V/24V/48V

24V/48V
Minimum Start Voltage 10V for 12V,20V for 24V,40V for 48V
Low Battery Alarm 10.5V for 12V,21V for 24V,42V for 48V
Low Battery Transfer 10V for 12V,20V for 24V,40V for 48V
High Voltage Alarm 16V for 12V,32V for 24V,64V for 48V
Max Charging Current 70A35A
Over Charge Voltage 15.7V for 12V,31.4V for 24V,62.8V for 48V
Transfer Efficiency
line Mode >95%
Battery Mode >88%
power saver Available when the load is less than 25 Watts
Indicators
7-LED Display From the right to the left,LED1 line mode (green lighting),LED2 inverter mode
(green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged
(green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded
shutdown(red lighting),LED7 Saving Mode(green lighting)
3-LED Display Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting)
Switch selector

Saving Mode is on/off when push the switch forwards/backwards,   keeping it horisontal is
turning the inverter off.
Audible Alarm Sounding when the heatsink's tem is over 105C and shutdown after 30 seconds.
Protections low battery,over charging,over temp,over load
Communications RS-232/USB(custom-made)
Enviromental
Operating Environment 0-40C,0-90%RH(non-condensing)
Audible Noise <60dB
Physical
Net Weight(KG)

18

20

22

35

38

40
Dimension,D X W X H(mm)

218X179X442

218X179X598
*Specifications are subject to change without prior notice.
