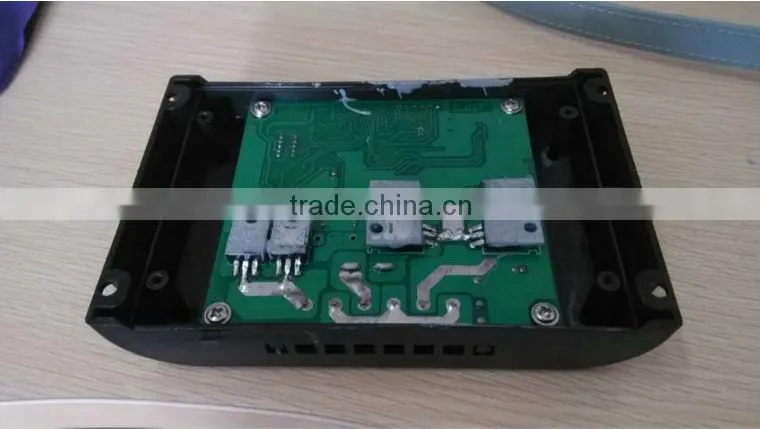

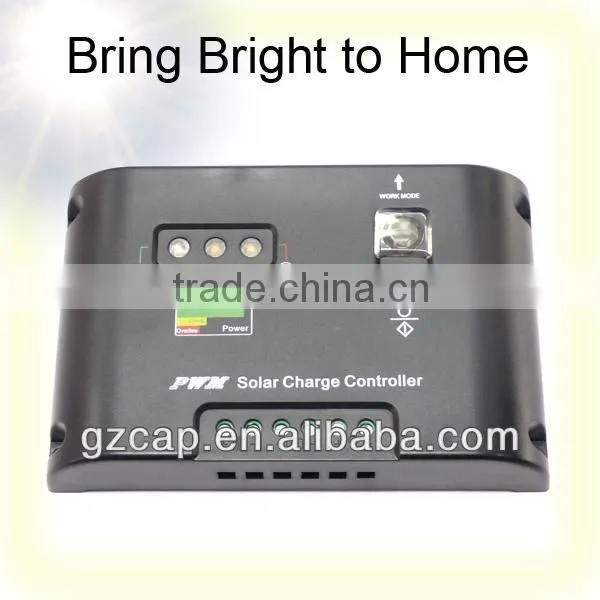

temperature controller solar charge controller 10A 20A 30A

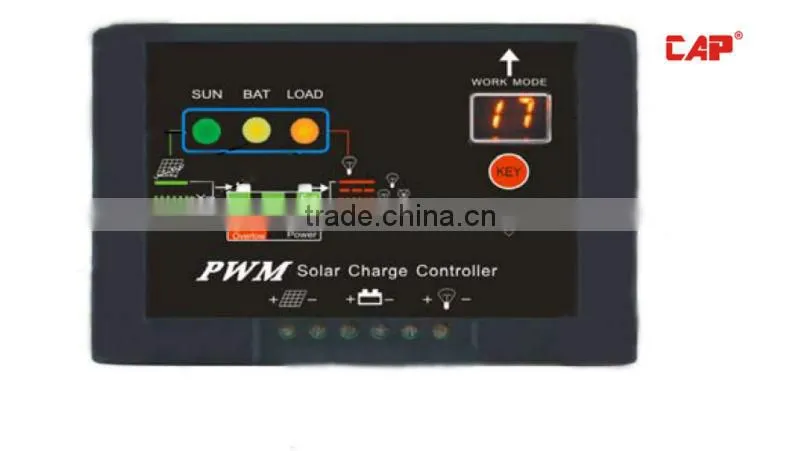

1. Intuitionistic LED indicators show the current system battery capacity, charging and discharging state of the battery.
2. Having the protection functions as overcharging, over discharging, overload, short-circuit and reversed connection.
3. Tandem type PWM charging makes the charging efficiency increase by 3% to 6%, compared with non-PWM charging.
4. The parameters of charging and discharging have been set during the production (special parameters need to be told in advance), so no need to adjust the parameters.
5. It can set the working mode of the load.
Model |
01 |
02 |
03 |
Fixed charging current |
10A |
20A |
30A |
Rated load electric current |
10A |
20A |
30A |
System Voltage |
12V,24V,36V,48V |
||
Over-load protection |
1.3 multiple Nominal current,60 seconds or 1.6 Multiple Nominal current,5 seconds,Over-load protection movement |
||
Short circuit protection |
50A |
100A |
150A |
Transient current |
25A |
50A |
75A |
No-load loss |
<5mA |
||
Charge return route pressure drop |
≤0.26V |
||
Electric discharge return route pressure drop |
≤0.15V |
||
Overpressure protection |
17V/12V;34/24V |
||
Operating temperature |
Technical grade:-35C to +55C |
||
Promotion charging voltage |
14.6V;×2/24V;(Maintenance time:10min) |
||
Straight charging voltage |
14.4V;×2/24V;(Maintenance time:10min) |
||
Floating |
13.6V;×2/24V; |
||
Charge returns voltage |
13.2V;×2/24V; |
||
Temperature compensation |
-5mV/C/2V |
||
Undervoltage voltage |
12.0V;×2/24V; |
||
Has put the voltage |
11.2V;×2/24V; |
||
Has put the returns voltage |
12.6V;×2/24V; |
||
Control mode |
The way of PWM Pulse-duration modulation |
||
Size |
140×90.5×28.5mm |
||
Weight |
220g |
||
