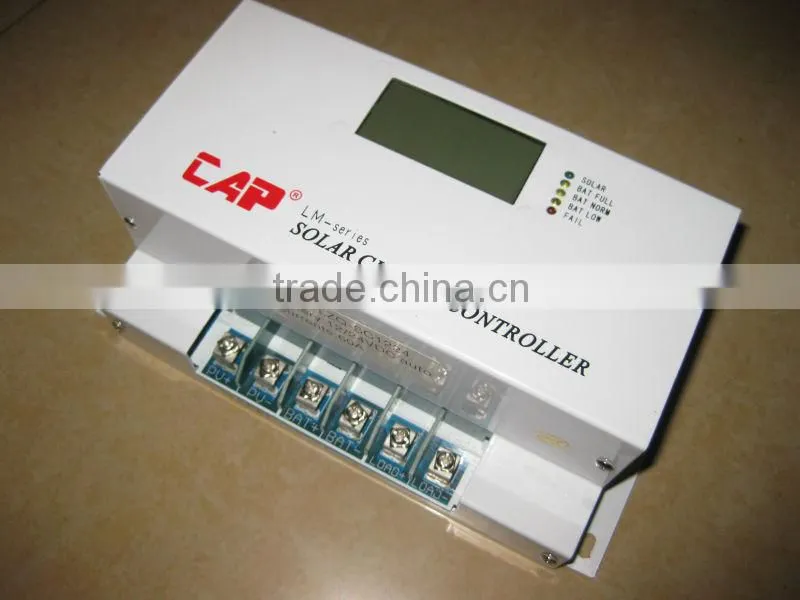

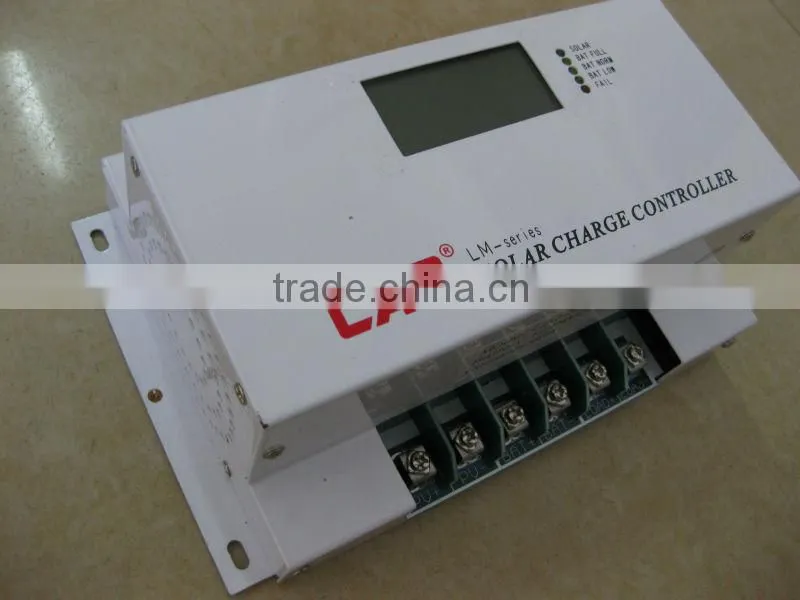

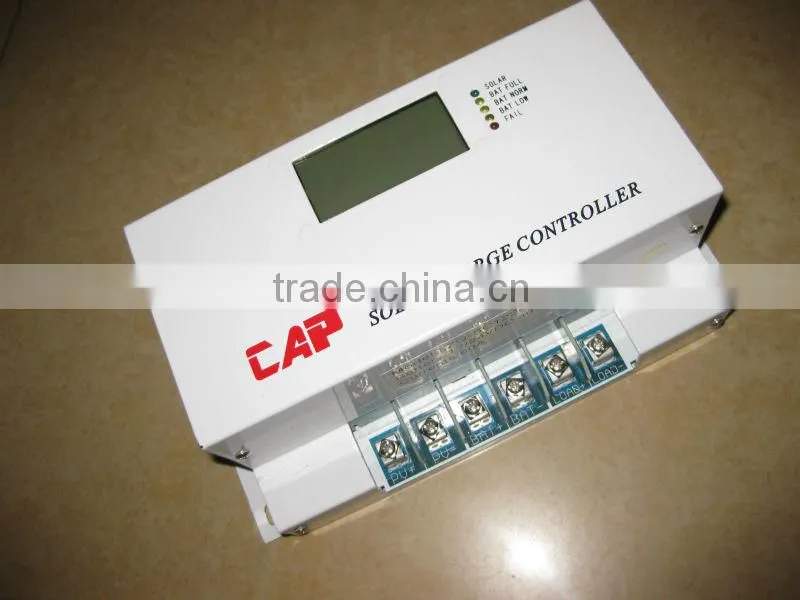

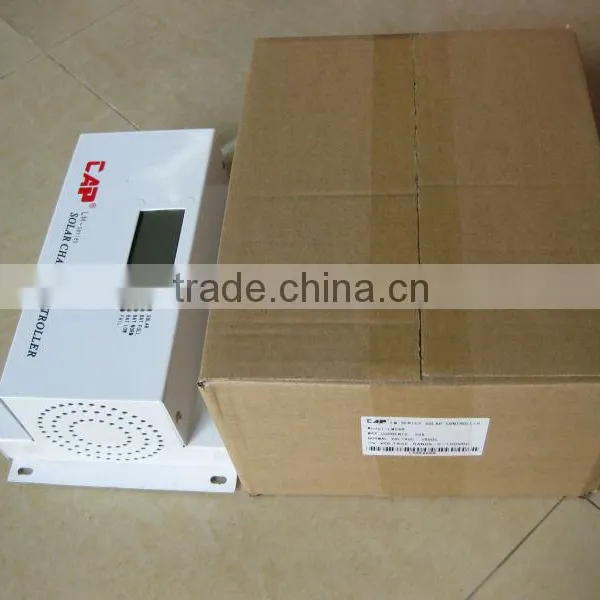

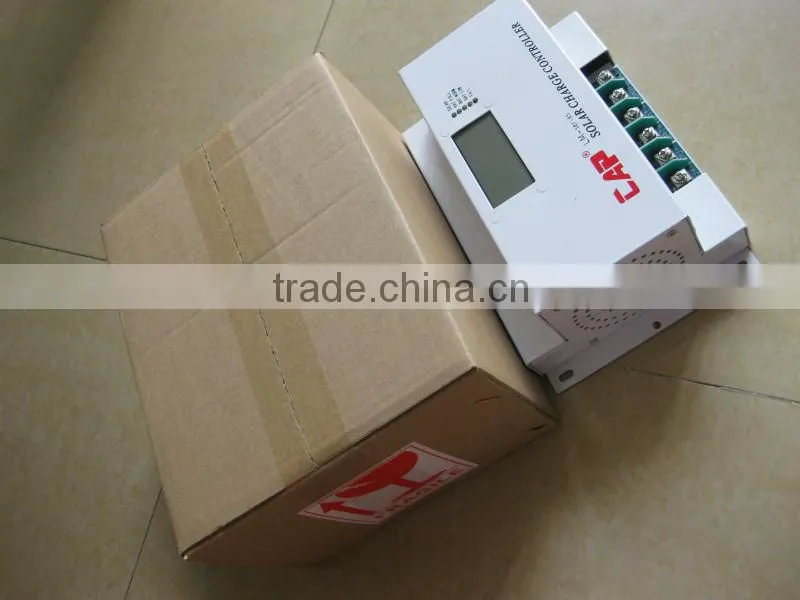

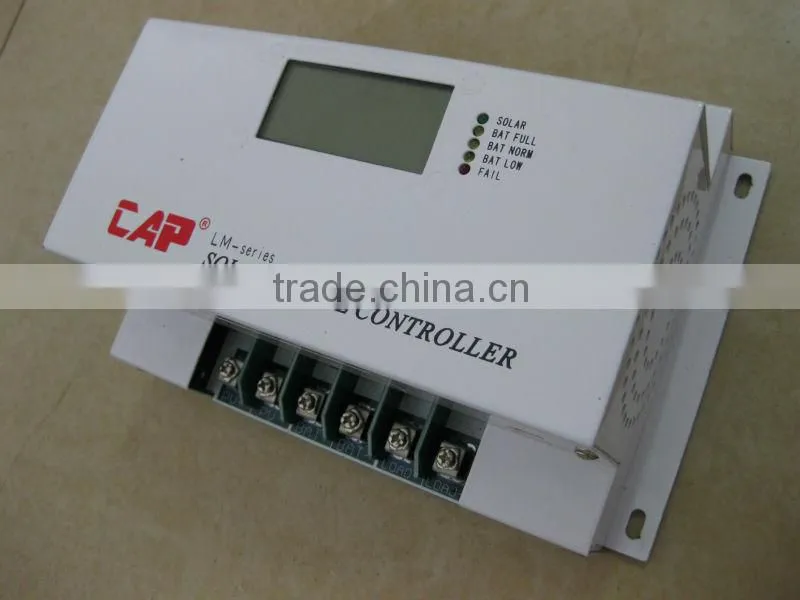

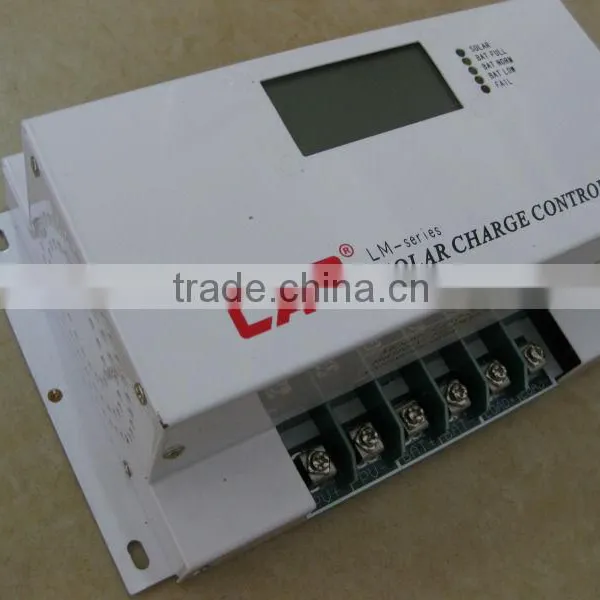

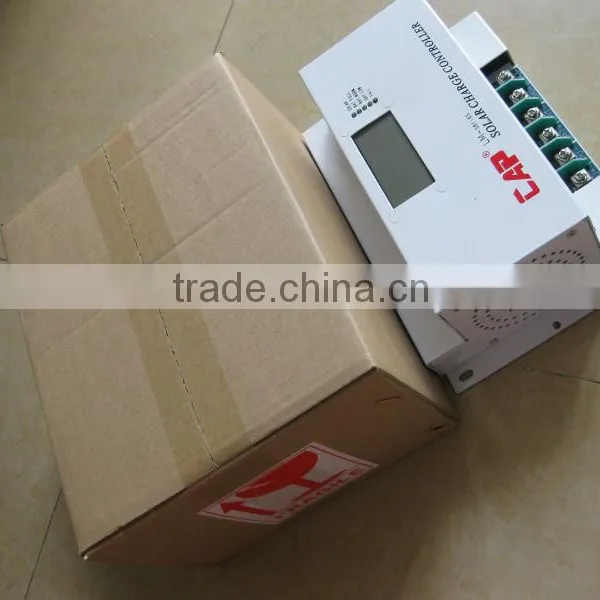

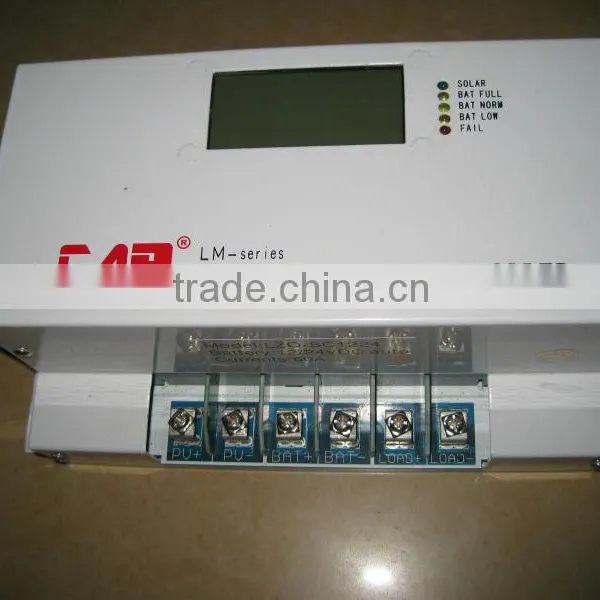

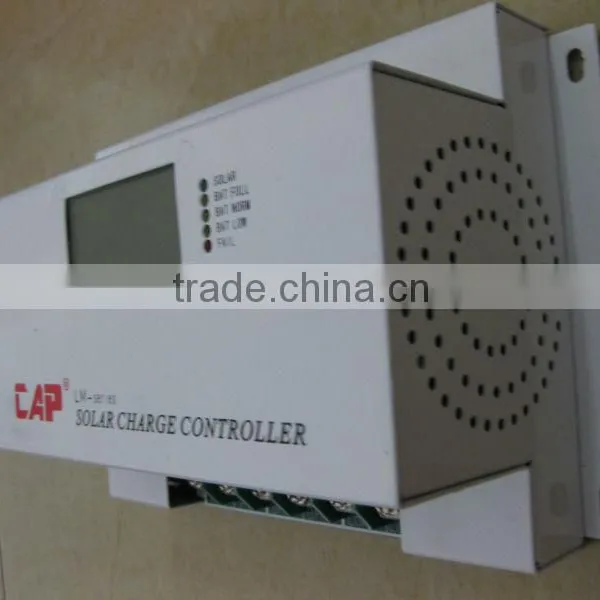

12v/24v 40A Solar Chage Controller MPPT Solar Controller

US$ 70 - 280 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CAP

Model Number:

40A 50A 60A 70A

Guangzhou CAP Solar New Energy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

gangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CAP

Model Number 40A 50A 60A 70A

Application Solar System Controller

Rated Voltage Other, 12V/24V 36V/72V 48V/96V

Maximum Current 70A

Specifications

input voltage: 12v/24v 36v/72v 48v/96v (automatic recognition) and 120v
Range: 40A 50A 60A 70A

40A 50A 60A 70A LCD display MPPT Solar Controller

Input Voltage:12v/24v 36v/72v 48v/96v 120v

Description of Functions

1. The charge controller protects the battery from being overcharged by the solar array and from being

deep discharged by the Loads. The charging characteristics include several stages which include automatic adaptation to the ambient temperature.

2. The charge controller adjusts itself automatically to 12V or 24Vand 48V or 96V system voltage.

3. The charge controller has a number of safety and LED & LCD display functions

Technical Data:

Model series	LM series A LM01A/LM02A/LM03A/LM04A	LM series B LM01B/LM02B/LM03B/LM04B
Nominal voltage	12/24 V, automatic recognition	48/96 V, automatic recognition
Boost voltage	14.5/ 29.0 V (25'C),2 hours	58/116V (25'C),2 hours
Equalization voltage	14.8/29.6 V (25'C),2 hours	59.2/118.4V (25'C),2 hours
Float voltage	13.7/ 27.4 V (25'C)	54.8109.6/ 27.4 V (25'C)
Low Voltage Disconnect Function	11.4- 11.9/22.8-23.8 V controlled by state of charge 11.0/ 22.0 V controlled by voltage	45.64- 47.6/91.2-95.2V controlled by state of charge 11.0/ 22.0 V controlled by voltage
Load reconnect voltage	12.8/25.6V	51.2/102.4V
Temperature compensation	-4 mV/cell*K
Max. solar panel current	40A/50A/60A according to model number @ 50'C
Max. load current	40A/50A/60A according to model number @ 50'C
Dimension	230 x 150 x 85 mm
Weight	1.2kg	1.3kg
Max wire size	20 mm2
Self consumption	16mA	30mA
Ambient temperature range	-40 to+ 50°C
Case protection	IP 22
