Specifications
Intelligent control is realized by using microprocessor and ddedicated control calculation.LED PWM Solar Controller

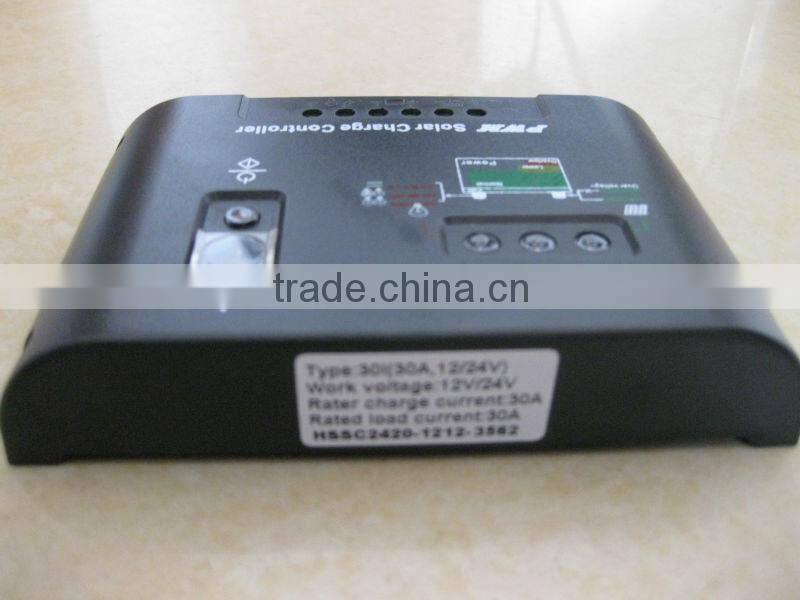

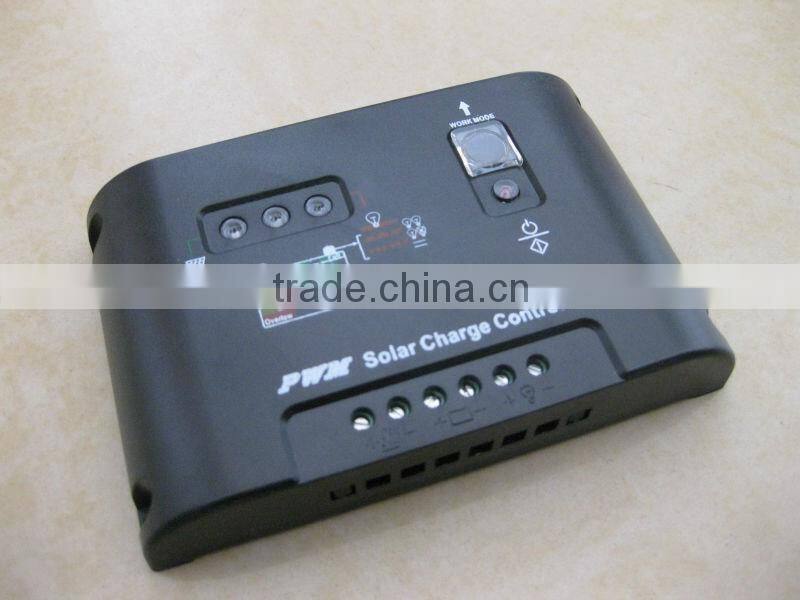

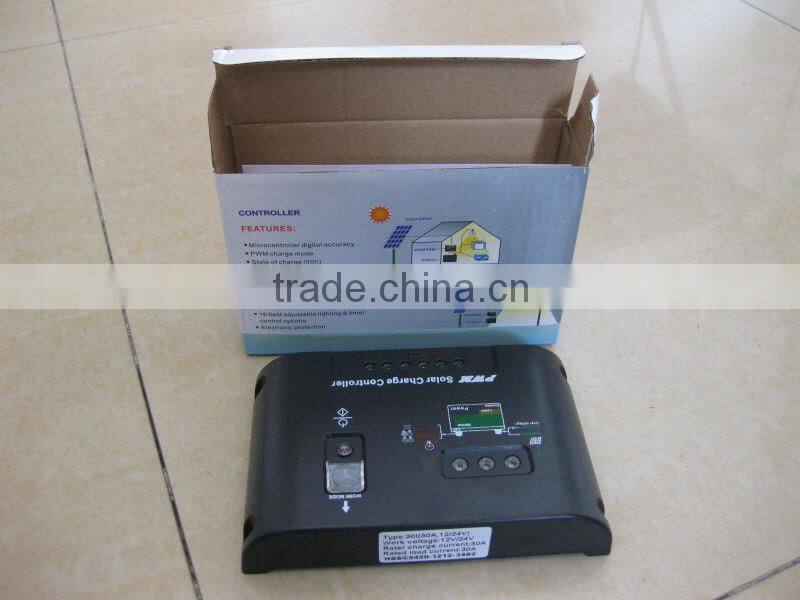

Product View:
Solar controller for PV systems, coordination of solar panels, batteries and work load, is a very important photovoltaic system component. It makes the whole solar system work efficiently and safely. Solar street light controller is mainly used for domestic, commercial, factory, transport, pastoral areas, communication and other photovoltaic power systems.
Technical specification:
Model |
01 |
02 |
03 |
Fixed charging current |
10A |
20A |
30A |
Rated load electric current |
10A |
20A |
30A |
System Voltage |
12V,24V,36V,48V |
||
Over-load protection |
1.3 multiple Nominal current,60 seconds or 1.6 Multiple Nominal current,5 seconds,Over-load protection movement |
||
Short circuit protection |
50A |
100A |
150A |
Transient current |
25A |
50A |
75A |
No-load loss |
<5mA |
||
Charge return route pressure drop |
≤0.26V |
||
Electric discharge return route pressure drop |
≤0.15V |
||
Overpressure protection |
17V/12V;34/24V |
||
Operating temperature |
Technical grade:-35C to +55C |
||
Promotion charging voltage |
14.6V;×2/24V;(Maintenance time:10min) |
||
Straight charging voltage |
14.4V;×2/24V;(Maintenance time:10min) |
||
Floating |
13.6V;×2/24V; |
||
Charge returns voltage |
13.2V;×2/24V; |
||
Temperature compensation |
-5mV/C/2V |
||
Undervoltage voltage |
12.0V;×2/24V; |
||
Has put the voltage |
11.2V;×2/24V; |
||
Has put the returns voltage |
12.6V;×2/24V; |
||
Control mode |
The way of PWM Pulse-duration modulation |
||
Size |
140×90.5×28.5mm |
||
Weight |
220g |
||
