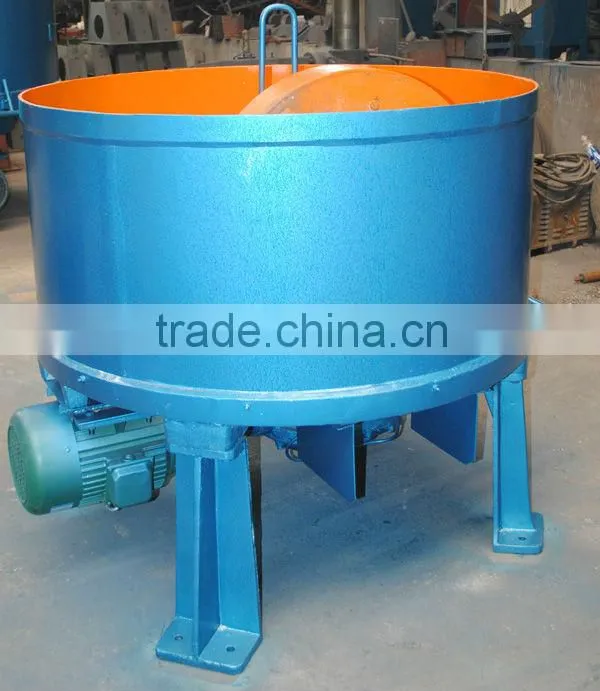

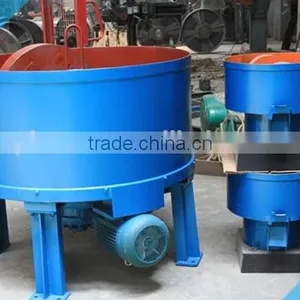

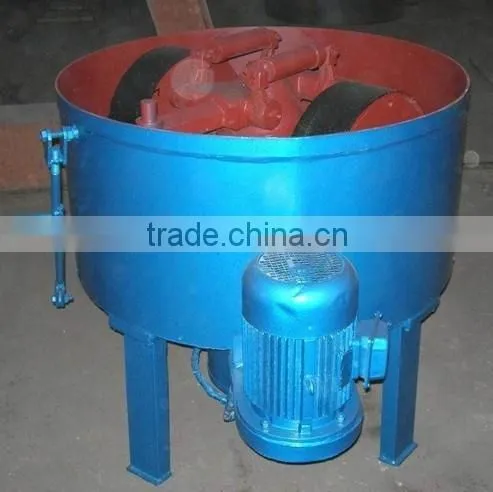

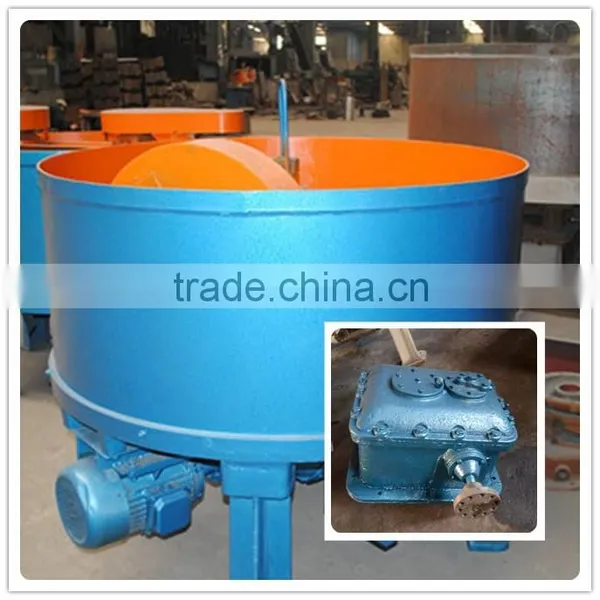

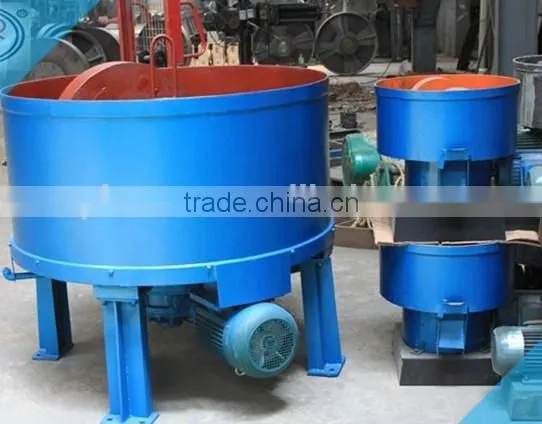

Batch Intensive Clay Sand Mixer
S11 series grinding wheel sand mixing machine has advantage of simple structure, reliable running etc.
It is suitable for mixing moist molding sand, self-hardening sand, as well as water glass sand.

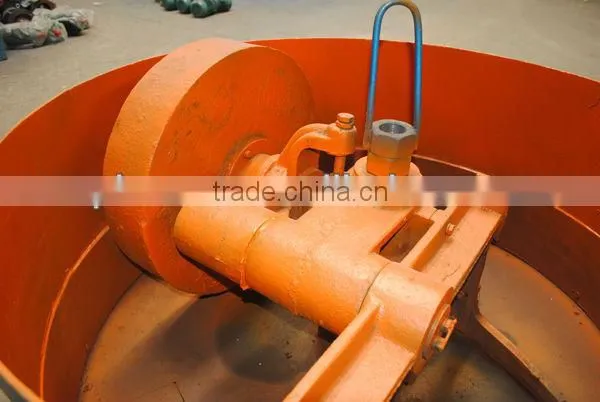

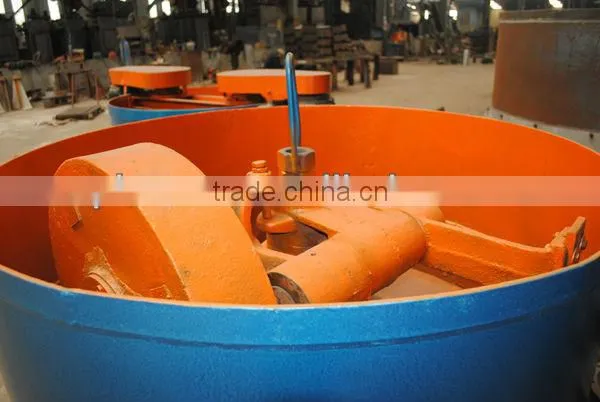

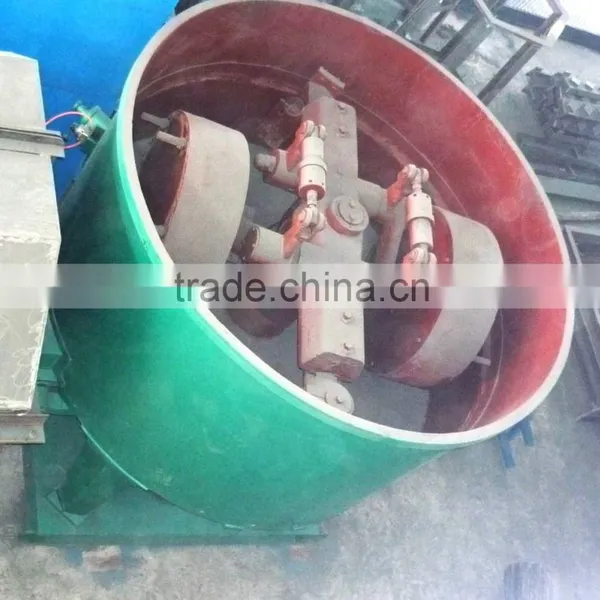

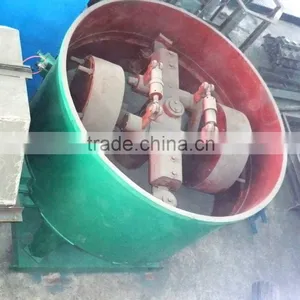

Using the relative motion of the grinding wheel and pan, placed between the two materials are shattered by the effect of
rolling and grinding materials, sand mixer in the crushing of materials at the same time also mix material. Is produce baking-free brick, lime-sand brick, concrete block and brick, crushing and mixing fly ash and boiler slag, tail slag and industrial waste
residue brick raw material ideal equipment.
Technique parameter
| Type | S114C | S1110 | S1110A | S1118 | S1120D |
| Disk dia(mm) | Φ1820 | Φ1000 | Φ1000 | Φ1800 | Φ2000 |
| Feed capacity(kg/s) | 500 | 110 | 110 | 500-600 | 900 |
| Productivity(t/h) | 10-13 | 1.5-2.5 | 1.5-2.5 | 13-15 | 20 |
| Main motor power(KW) | 15 | 4 | 4 | 22 | 37 |
| Spindle speed(r/min) | 34 | 44 | 44 | 36 | 34 |
| Single griding wheel pressure(N) | 0-3000 | 0-1100 | 0-1100 | 0-6000 | 0-9000 |
| Outline dimentions(mm) | 2082*1882*1755 | 1024*1474*1370 | 1778*1024*1370 | 1977*1997*1800 | 3125*2192*2995 |
Certification
About us
Qingdao Rovan Machinery Co.,Ltd was established in 2001, Asia's largest shot blasting machine supplier, do foreign trade
export for twelve years,mainly produces shot blasting machine,shot peening equipment,sand conditioning equipment,dust collector and shot blasting machine parts, etc.
Technical advantages
With new product design,development,prototype,debug capabilities,provide users with the best technical solutions in the
shortest time,and delivery in high quality.In the shot blasting,sand casting,shape own professional technicist to leading
technology work.
Trade Terms:
1. Payment:
(1)Telegraphic Transfer(30% advance payment, balance before shipment).
(2)Telegraphic Transfer(30% advance payment, balance against copy of documents).
(3)Letter of Credit: at sight
2. Lead Time: 2 weeks after confirmed order
3. Delivery way: by sea
Service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years,
competitive with good quantity.
7. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is
usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products
to be finished in high quality and stable feature. Welcome to contact us or visit our company.
If you want to buy shot blasting machine, could you tell me the answers as follow?Please indicate the following details:
1) What kind of workpiece will you clean? Material?2) The size of it, length, width and height of maximum workpiece? Length, width and height of minimum workpiece?
3) How heavy is each workpiece? Especially the weight of maximum workpiece?4) How many tons will you clean for each month or each day?
After getting your informations, the detailed technical parameters will be sent to you for your reference. Note:As we are an
integrated company, we sell our products direct to customers without any extra agent charges. Hence, our price is relatively
lower than others. Moreover, we are using the most advanced equipment and technology in order to produce high quality
and more professional.
