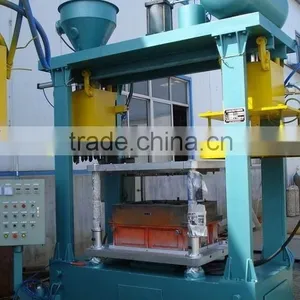

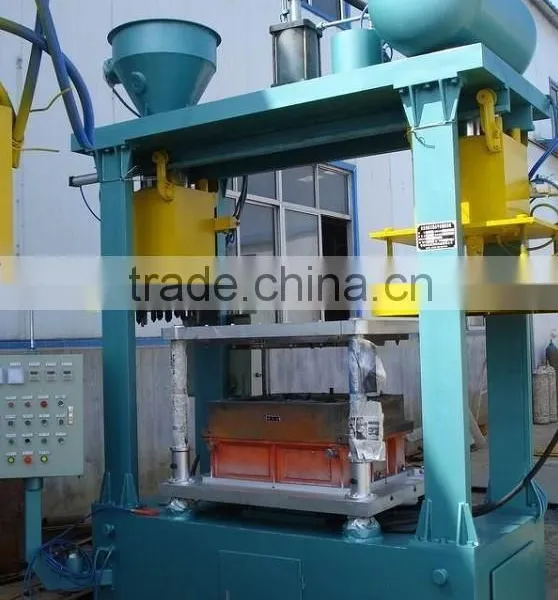

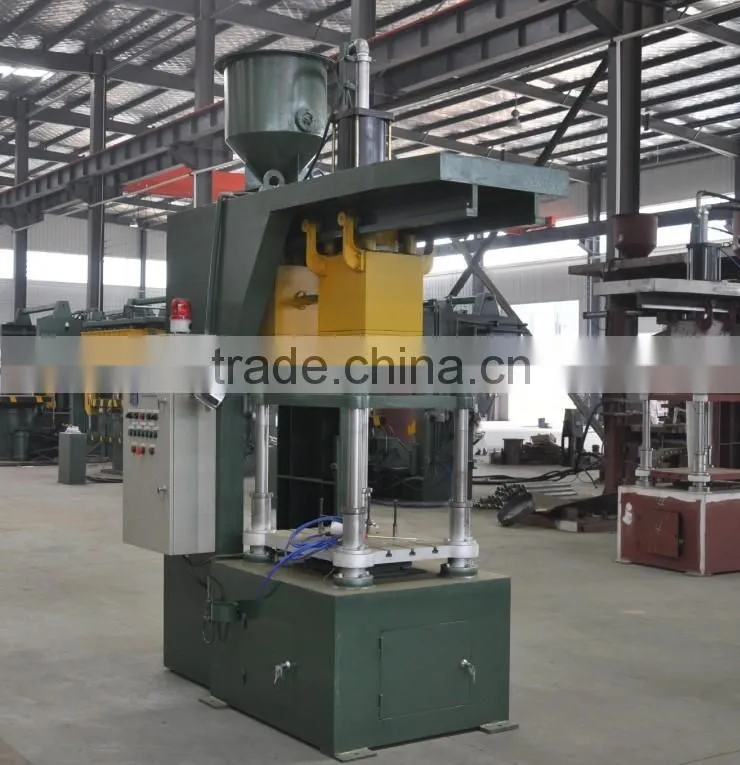

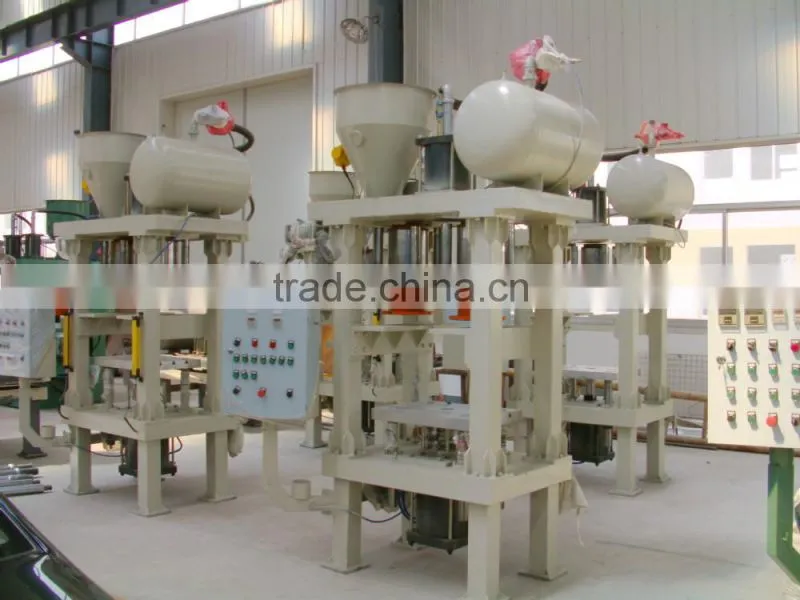

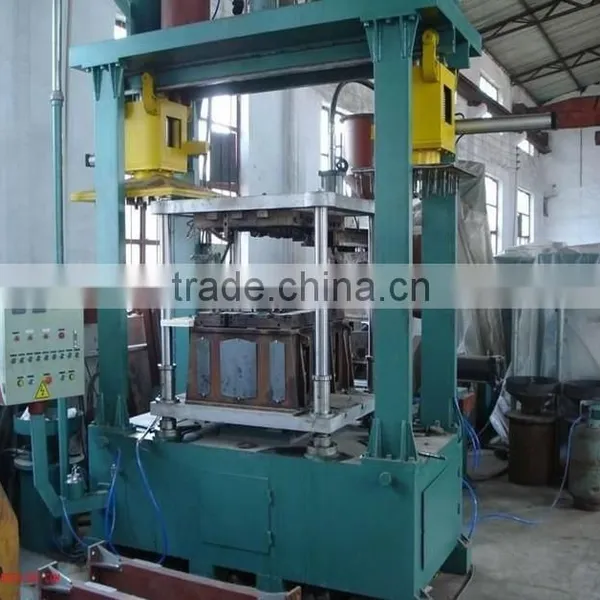

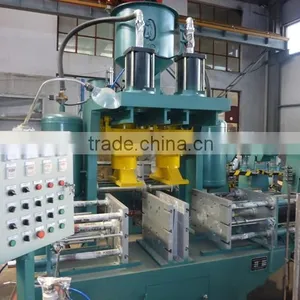

ZH series shoot core machine for foundry
ZH750 shoot core machine for foundry
1. PLC control, MORON of CPMZA
2. Mold, pressed, hydraulic control
3. Shooting,walking,core top, pneumatic control
4. Triethylamine generator(based on users with low and high allocation)
5. Artificial interface (which can be based on user requirements)
6. Apply brakes, disc-type leaves and sand core
7. shoot core machine for foundry technical parameter
Item |
ZH750-25 |
Item |
ZH750-25 |
Molding plate dimensions(mm) |
780*600 |
Maximum working pressure(Mpa) |
10 |
Molding minimum thick(mm) |
280 |
Hydraulic pressure system (L/min) |
40 |
Mould maximum open height(mm) |
580 |
Motor power(kw) |
7.5 |
Maximum sand core weight(kg) |
25 |
Pneumatic working pressure(Mpa) |
0.6 |
Sand hopper capacity(kg) |
160 |
sand shoot pressure(Mpa) |
0.4~0.6 |
Control |
Pneumatic/Hydraulic |
Operation mode |
Semi-automatic/Automatic |

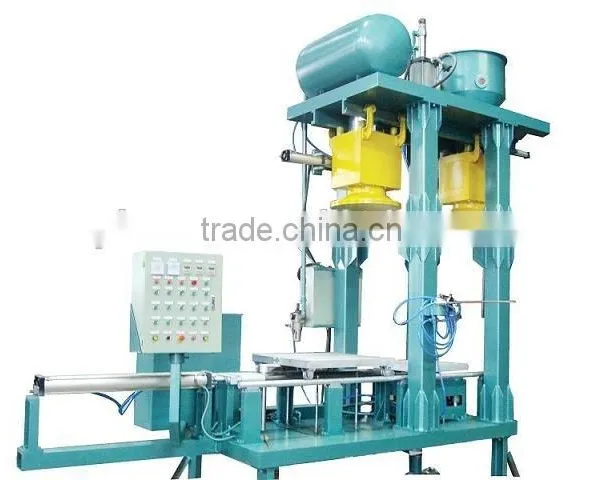

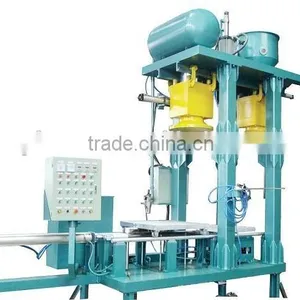

ZH600/750 shoot core machine for foundry
1. Coremaking processes simple, easy to operate
2. PLC programmable control
3. Adjustable technics parameters
4. Mold temperature automatic control
5. Meet the production requirements for sand core of brakes disk.
Item |
ZH600 |
ZH700 |
Molding board maximum dimension(mm) |
600*520 |
700*600 |
Molding minimum thick(mm) |
280 |
350 |
Mould assembly process(mm) |
300 |
400 |
Maximum sand core weight(kg) |
15 |
25 |
Sand hopper capacity(kg) |
200 |
200 |
Heating mode |
Electric heating |
|
Electric heating power(kw) |
20 |
60 |
System pressure(Mpa) |
0.55-0.70 |
0.5-0.6 |
Operation mode |
Auto/Manual |
|

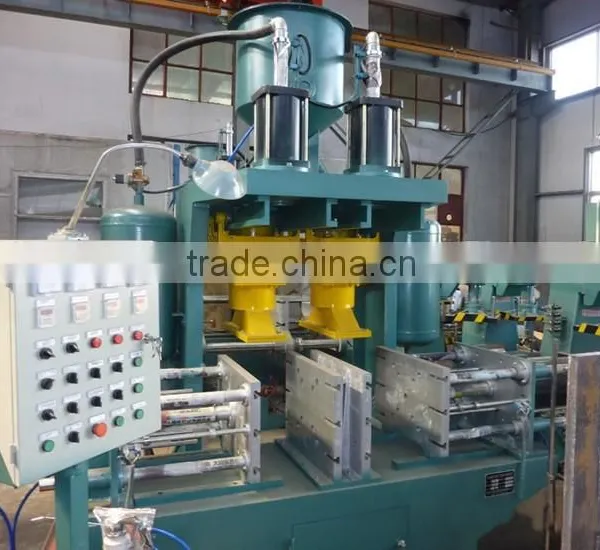

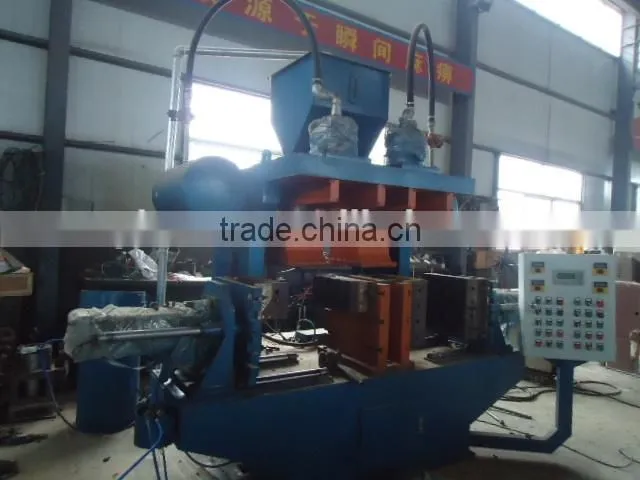

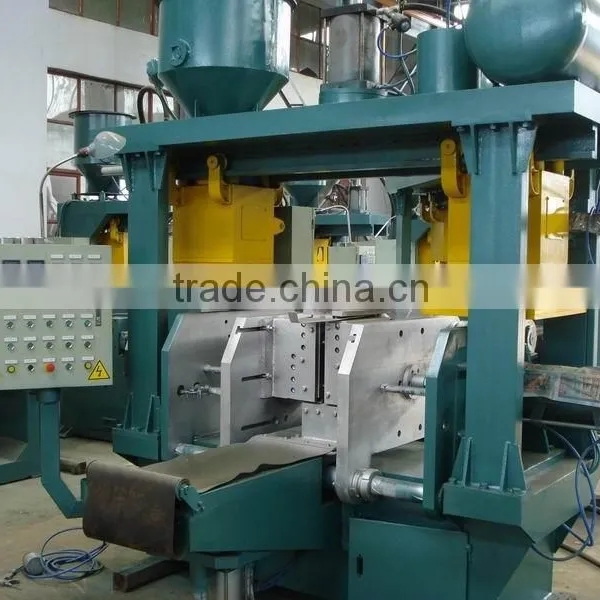

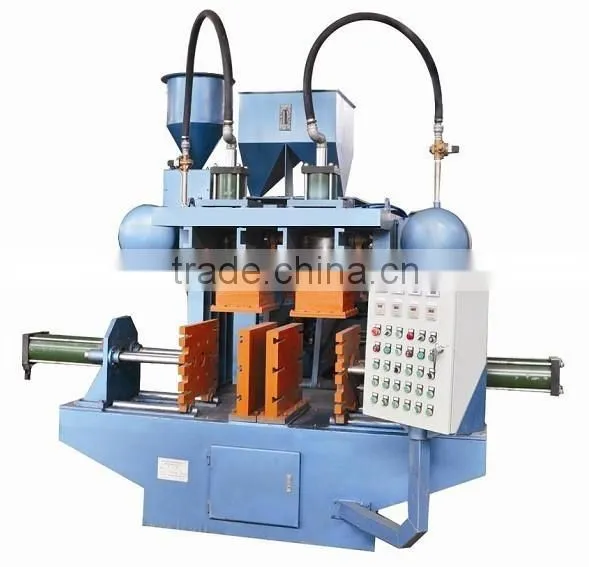

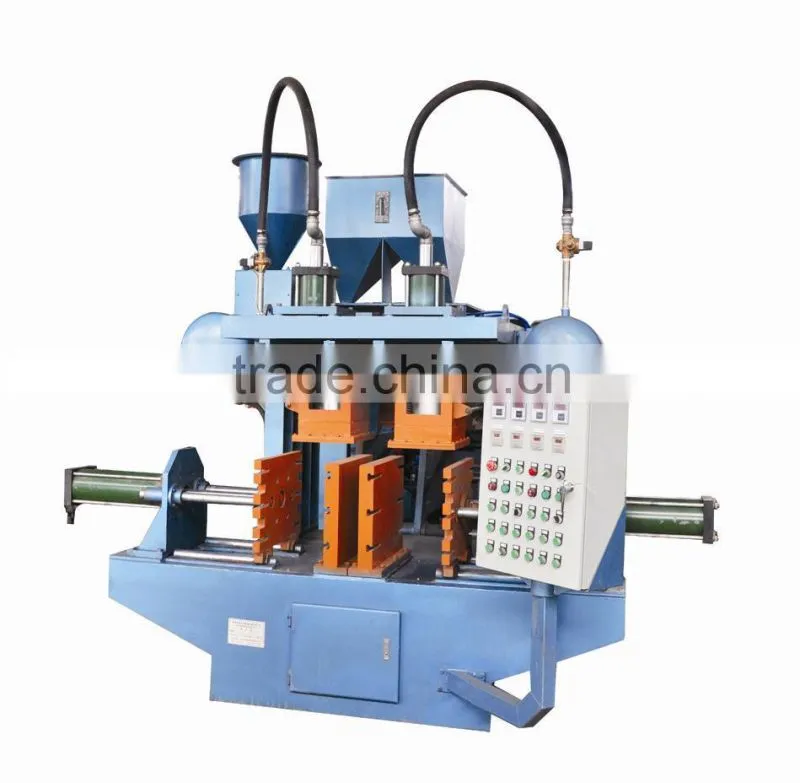

ZH86 series shoot core machine for foundry
1. Mode of operation: manipulating disc valve control
2. Parting mode: vertical parting
3. Mode of feeding sand: auto quantitive feeding sand
4. Temperature control: temperature automatically display, selecting high and low temperature be controlled by the instrument.
5. Mode of installing mould: electric heating
6. Special specifications can be made incordance with customer’s need.
7. Design and product mould for the user
Mode |
Z8612B |
Maximum mode piece dimension(mm) |
500*400*300 |
Core sand capacity |
12KG*2 |
Outline size(mm) |
2800*1600*3760 |
Assembly power(kw) |
35 |
Heating power(kw) |
18 |
core maker machine is packed by wooden case or nude packing
shoot core machine for foundry
1.Reply you in the 24h
2.Reply you in English
3.Design according to technical requirement
4.Special discount and protection of sales are provided to distributor
5.We could do the field test to show the machine operation and work effect
6.We are manufacture, we could promise the quality and price
shoot core machine for foundry
Qingdao Rovan Machinery Co., Ltd
1.Established in 2001the factory is located in Qingdao, China.
2.Mainly manufacture shot blasting machine, dust collector, microseism squeeze molding machine/sand molding machine, core shooter machine, resin sand production line, clay sand production line, etc.
3. All products has ISO9001 and CE certification,
4. OEM also could provide for you.
Welcome to our factory for machine discussion and cooperation.
shoot core machine for foundry
Please confirm the workpiece size before choose the machine type
