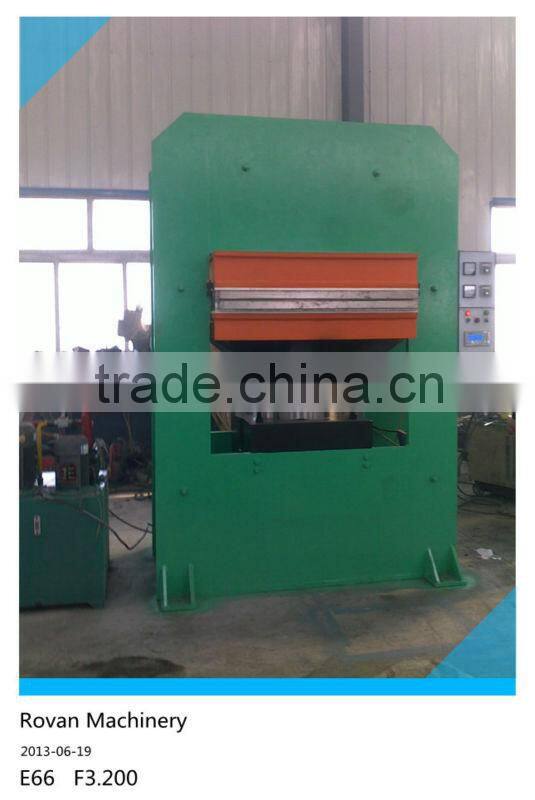

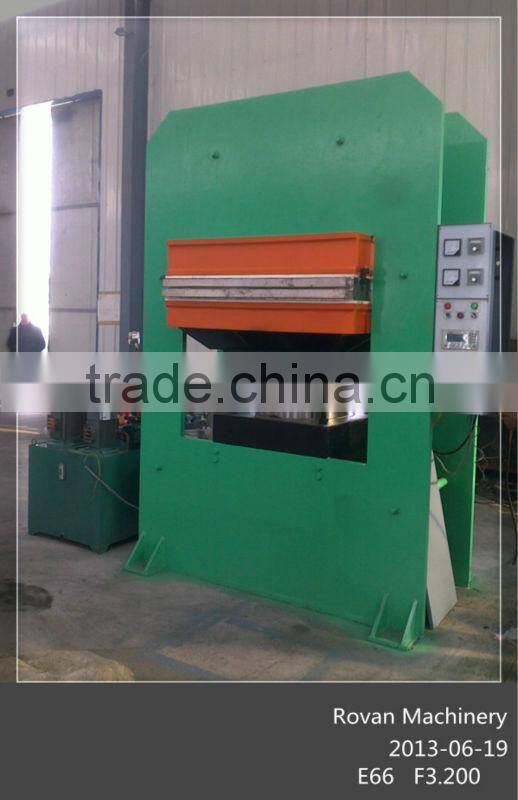

1.6MN High Efficiency Frame Rubber Vulcanizing Equipment

1.6MN High Efficiency Frame Rubber Vulcanizing Equipment thumbnail-1
1.6MN High Efficiency Frame Rubber Vulcanizing Equipment photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Vulcanizer
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Qingdao Rovan Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Vulcanizer
Place of Origin Shandong, China
Brand Name Rovan
Model Number XLB
Power(W) 3000
Dimension(L*W*H) 2600x700x2500
Weight 3000kg
Certification ISO 9001
Warranty one year

Specifications

1.6MN High Efficiency Frame Rubber Vulcanizing Equipment;
1.simple structure, reliable operation;
nvenient maintenance;

1.6MN High Efficiency Frame Rubber Vulcanizing Equipment



Specification



1.This rubber machine is mainly used to vulcanize common rubber conveyor  belt, nylonor belt ,PVC/PU conveyor belt ,steel wire core conveyor belt fabric core parallel adhesive tape;



2.Frame-type  structure , hot plate and plunger are high quality material ,has the features with precision machining, difficult to abrasion, anticorrosion, convenient maintenance ,stable working pressure ,and easy to adjust;



3.This type of machine is control by PLC , valcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate  rubber machine;



Technical parameter




Technical

Requment

Type

XLB1000*1000*2Q

XLB1200*1200*2Q

XLB1400*1500*1Q

XLB1200*2700*2Q

XLB1600*6200*1Q

XLBE-Q1200*1200

XLBE-Q1600*1500

Total pressure(mn)



2.5

3.5

5

7.5

24

3.15

5

Plate distance(mm)



200

300

450

300

400

450

450

Working layer number



2

2

1

2

1

1

1

Unit area pressure of hot piate



2.50

2.19

2.38

2.31

2.50

2.19

2.08

Plunger stroke(mm)



400

400

400

400

400

400

400

Heating mode



Steam/oil

Steam/oil

Steam/oil

Steam/oil

Steam

Steam/oil

Steam/oil

Main motor power(kw)



5.5

5.5

11

18.5

26

11

11

Size:l*w*h(mm)



1490*1000*2510

1835*1200*2600

2150*1500*2900

1780*2890*2800

6300*2500*3200

1200*1800*2140

1500*2400*2600

Frame

form

Frame

Frame

Frame

Frame

Frame

Frame

Jaw

Jaw





XLB240*240*2

XLB350*350*2

XLB400*400*2

XLB500*500*2

XLB600*600*2/4

XLB700*700*2

XLB750*850*2/4

XLB900*900*2Q

0.15

0.25

0.5

0.63

1.00

1.20

1.60

2.00

125

125

125

125

125

125

200

300

2

2

2

2

2-4

2

2-4

2

2.60

2.04

3.13

2.52

2.77

2.45

2.51

2.47

250

250

250

250

250/400

250

400

400

Electricity

Electricity

Electricity/steam

Electricity/steam

Electricity/steam

Steam

Electricity/steam

Steam

2.2

2.2

2.2

2.2

2.2

2.2

3

5.5

1200*350*1300

1400*480*1380

1600*500*1480

1750*600*1540

1880*720*1680

2000*850*1750

2250*1200*2200

1400*900*2400

Post

Post

Post

Post

Post

Post

Frame

Fram

1.6MN High Efficiency Frame Rubber Vulcanizing Equipment1.6MN High Efficiency Frame Rubber Vulcanizing Equipment1.6MN High Efficiency Frame Rubber Vulcanizing Equipment



1.Rubber products,Thermosetting plastic;

2.Hydraulic drive;

3.Manual:relay control;

4.Automatic:relay control and PLC control;

5.Adjustable of vulcanizing time and pressure;

6.Compact structure;

7.High efficiency;

8.Safe operation;

9.Automatic or manual control is selectable by customers.

Certificate

1.6MN High Efficiency Frame Rubber Vulcanizing Equipment
