Air source heat pump pool heating and cooling
Axen Pool Heat Pump is one of the most economical systems to heat the swimming pool efficiently. Using the free renewable energy from the air and the earth it delivers up to five times more energy in heating than a traditional heating system such as gas boiler or electric heater. So you will save 4/5 cost of the traditional heating. The unit is working at low running costs, no direct CO2 emission and are able to be integrated with energy systems like solar and boiler. Axen pool heat pump lengthens your swimming season and gives you comfort at high level. You could enjoy swimming pool not only in summer, but also in spring, autumn and even winter time.
Ecological and economical heating
By making use of the renewable energy in the outside air, it consumes much less energy with low carbon emission.
Use environment friendly advanced refrigerant R410a which has no effect on Ozone.

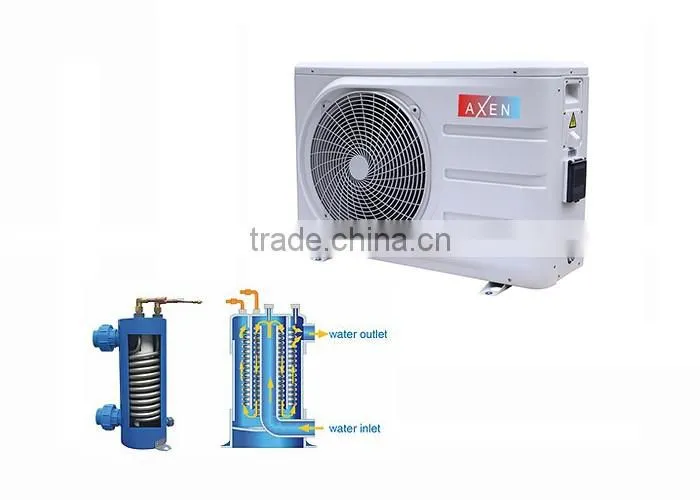

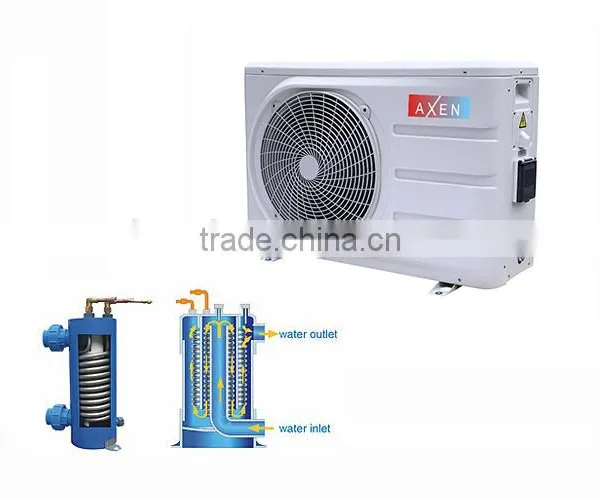

Titanium heat exchanger
Advanced titanium heat exchanger guarantees long life span of heat pump free from corrosion and rust.
Multiple functions
Cooling & heating function available: Axen heat pump could heat your pool as well as cool the pool.
Auto operation, Auto-restart, Auto defrost
Timer on/off: No human attendance is required
Wide ambient working condition: -5°C to 43°C
Reliable operation
To guarantee the stable running and increase the durability of the unit multiple protection devices have been set into Axen pool heat pump which include insufficient water flow protection, high/low pressure protection, overload protection, compressor protection.
Safe use
Axen pool heat pump works without oil, gas or other hazardous substance which avoid potential risk that goes together. Moreover no gas connection or a fuel tank is needed. No risk of intoxication, smell or pollution from leakage.
Easy installation
Axen pool heat pump is easy to be installed with simple electrical and hydraulic connection. The cost of installation is relatively low.

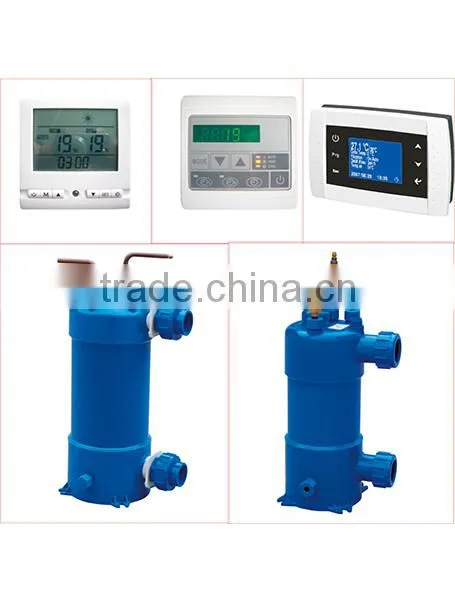

Self-diagnosis
When there is malfunction Axen pool heat pump will make self diagnosis by displaying error code from the control panel. The problem could be found out at a glance.
Wide application
Axen pool heat pump could ideally suit the pools from 15 to 350m3.
| Technical Data | AXSP-35 | AXSP-48 | AXSP-65 | AXSP-85 | AXSP-120 | AXSP-180 | ||
| Heating | Nominal capacity | KW | 3.68 | 4.95 | 7.13 | 8.25 | 12.75 | 18.8 |
| Power input | KW | 0.66 | 0.97 | 1.45 | 1.63 | 2.36 | 3.33 | |
| COP | W/W | 5.56 | 5.4 | 4.92 | 5.06 | 5.4 | 5.65 | |
| Heating* | Nominal capacity | KW | 3.07 | 4.13 | 5.94 | 6.84 | 10.6 | 15.7 |
| Power input | KW | 0.63 | 0.93 | 1.36 | 1.52 | 2.24 | 3.24 | |
| COP | W/W | 4.88 | 4.42 | 4.36 | 4.49 | 4.74 | 4.85 | |
| Cooling** | Nominal capacity | KW | 3.2 | 4.3 | 6.57 | 7.44 | 10.7 | 15.6 |
| Power input | KW | 0.82 | 1.15 | 1.83 | 2.01 | 3.24 | 4.11 | |
| EER | W/W | 3.88 | 3.75 | 3.6 | 3.71 | 3.3 | 3.8 | |
| Power supply | V/Ph/Hz | 220~240/1/50 | ||||||
| Water temperature range | ℃ | 8-40 | ||||||
| Refrigerant | R410A | |||||||
| Compressor Type | Toshiba Rotary | Daikin Scroll | ||||||
| Max current | A | 4.3 | 6.3 | 9.5 | 10.6 | 15.4 | 24 | |
| Air to water exchanger | Titanium Heat Exchanger | |||||||
| Net Dimensions H*W*D | mm | 495×600×300 | 495×600×300 | 550×990×360 | 550×990×360 | 615×1075×370 | 685×1170×470 | |
| Packing Dimensions H*W*D | mm | 560×670×370 | 560×670×370 | 675×1020×370 | 675×1020×370 | 735×1100×380 | 780×1230×495 | |
| Heating:Ambient tem(DB/WB):24℃/19℃,Water tem(in/out):26℃/28℃; | ||||||||
| Heating:Ambient tem(DB/WB):15℃/12℃,Water tem(in/out):26℃/28℃; | ||||||||
| Cooling:Ambient tem(DB/WB):35℃/24℃,Water(in/out):29℃/27℃. | ||||||||
Product Details
About AXEN
Axen is a professional company engaged in sales, R&D and production of refrigeration, heat pumps and water tanks. We have rich of refrigeration and heating for over ten years. Inline with our objective to provide environmental and climate friendly products, Axen keeps creating more innovative and efficient energy saving products. By year’s growth, our product line covers full range DC inverter heat pumps, all in one heat pump, air to water heat pump, commercial heat pump, swimming pool heat pump, water tank. By cooperating with famous international enterprises, plus independent R&D, AXEN makes big success in the US, EU, Australia, South Africa and China Markets. We would like to grow together with our customers by providing high quality service and unique high end products.
Exhibition
If you need more information,please visit our website: and contact us.
We will reply you shortly!
