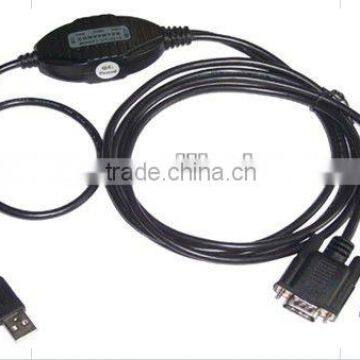

Help CenterUSB to 2port RS-232 Cable
Related Products
-
USB TTL-232 Cable - TTL-232R 3.3V ,FTDI FT232RL Usb/serial Chip Embedded in a Cable That Has a 6-pinUS$ 0.5 - 1.2MOQ: 10 Pieces -
USB TTL-232 Cable With Serial Chip Embedded in a CUS$ 0.5 - 1.2MOQ: 10 Pieces
-
USB AM TO USB BM Flat CableNegotiableMOQ: 1000 Pieces
-
Good Quality/hot Selling /high Speed TTL USB to 6p Housing Cable With FTDI Chipset ,2.0 TTL USB to 6p Housing CableNegotiableMOQ: 1000 Pieces
-
Low Price High Quality Flat Dual Color USB Extension CableUS$ 0.6 - 0.61MOQ: 1000 Pieces
Specifications
Standard: USBV1.1, 1.0,2.0 standard EIA RS-232 standardUSB signal: VCC, DATA-, DATA +, GND, FG
Product Features:
Standard: USBV1.1, 1.0,2.0 standard EIA RS-232 standard
USB signal: VCC, DATA-, DATA +, GND, FG
RS-232 signals: DCD RXD TXD DTR GND DSR RTS CTS RI
work: asynchronous, point to point work
Direction control: the use of automatic data flow control technology, automatic identification and control data transfer direction
Baud :300-921600bps, automatically detecting the serial signal rate
Load capacity: supports point to point communication
Transmission Distance: RS-232 terminal 5 meters, USB port not more than 5 meters
Interface protection: surge protection, ± 15KV ESD protection
Interface Type: USB side type A interface to Male, DB9 male connector to connect
Signal indication: 2 LEDs transmit signal (TXD) Receive (RXD) 1 x power LED (POWER)
Transmission media: twisted pair or shielded cable
Cable length Dimensions: 1500mm
use of the environment: -40 °C to 85 °C, relative humidity of 5% to 95%
system support:
• Windows 98, 98SE, ME, 2000, Server 2003, XP. Windows 7, Windows 7 x64
• Windows Vista
• Windows XP 64-bit.
• Windows XP Embedded.
• Windows CE.NET 4.2 & 5.0
• MAC OS 8 / 9, OS-X
• Linux 2.4 and greater
