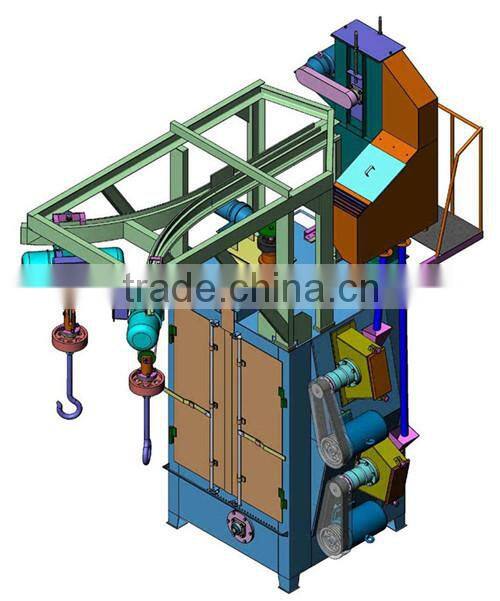

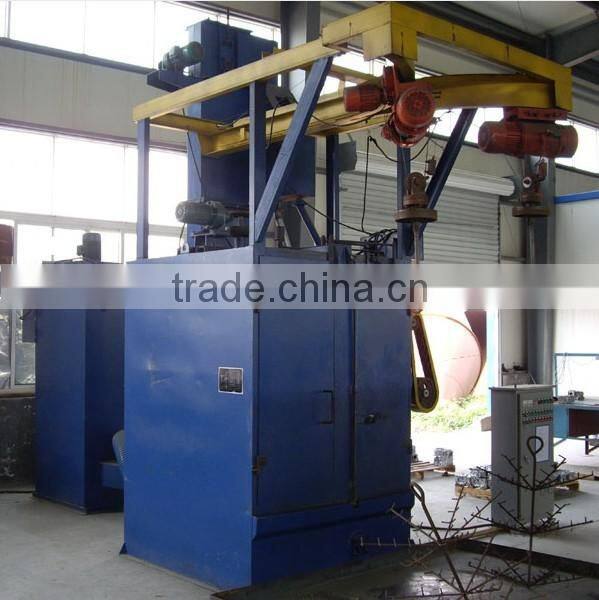

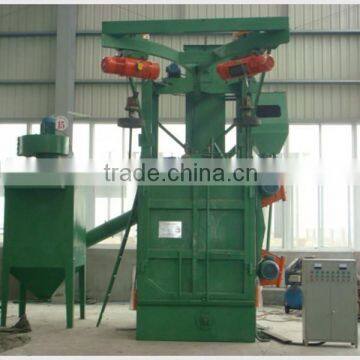

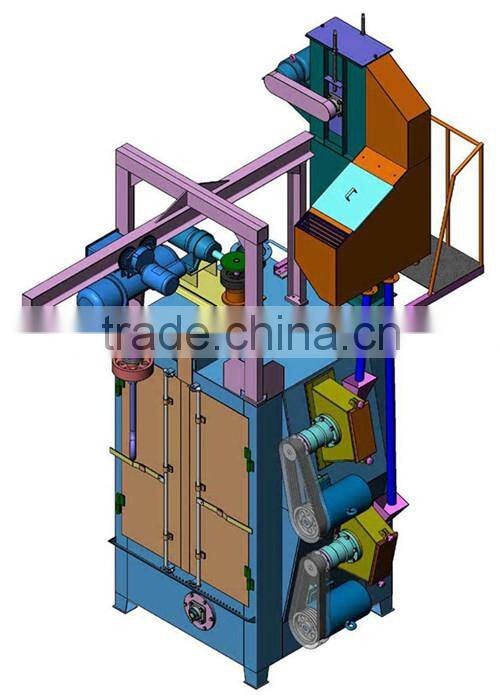

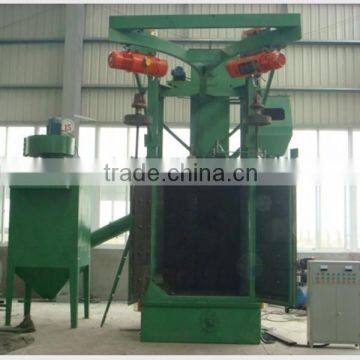

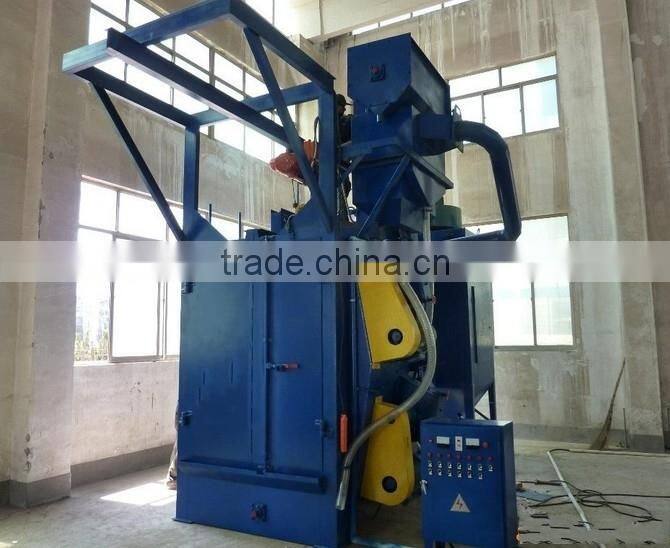

Q37 QT37 series rotary hook shot blasting machine
It is mainly used for surface cleaning and strengthening of steel structural parts,castings,aluminum alloy parts and other spare parts.It is widely used in foundry,mechanical and steel industry .
This series has following advantages:no pit,double hook without rail exchanging,compact structure,and high productivity.
hook type surface treatment machine Technical parameter
type | Workpiece size(mm) | single hook load(kg) | capacity (kg/min) | lifting capacity of hoist(t/h) | separator capacity(t/h) | ventilation capacity(m³/h) | power(excluding dedusting)(kw) |
Q376 | Φ600*1100 | 500 | 2*120 | 15 | 15 | 5000 | 19 |
Q378 | Φ800*1500 | 1000 | 2*200 | 22 | 22 | 8000 | 32.5 |
Q3710 | Φ900*1600 | 1000 | 2*250 | 30 | 30 | 9000 | 36.55 |
QD3710 | Φ900*1600 | 1000 | 2*250 | 30 | 30 | 9000 | 39.65 |
Q3720 | Φ1400*2300 | 2000 | 3*250 | 45 | 45 | 15000 | 61.27 |
Q3730 | Φ1600*2300 | 3000 | 3*250 | 45 | 45 | 15000 | 64.4 |
Q3750 | Φ1800*2500 | 5000 | 4*250 | 60 | 60 | 18000 | 78.4 |
Q3780 | Φ2000*3000 | 8000 | 4*250 | 60 | 60 | 20000 | 81.5 |

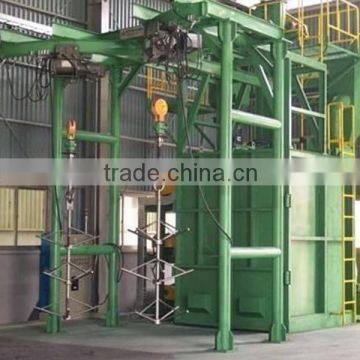

Q37T series rotary hook shot blasting machine
Maximum outline size(Dia*H) | 3000*2400mm |
Maximum of single piepce | 1000kg |
Autorotation speed | 3.14r/min |
Impeeller head | ZLQ034 |
Per machine blasting capacity | 250kg/min |
Cleaning casting piece time | 8-10min |
Rivet weld and forging | 12-15min |
Chamber inner size(L*W*H) | 3500*3500*3200mm |
Gate move speed | 0.12m/s |
Pellet diameter | 0.5-1.2mm |
Total power | ~85kw |
rotary hook shot blasting machine packed by wooden case
rotary hook shot blasting machine
1.Reply you in the 24h
2.Reply you in English
3.Design according to technical requirement
4.Special discount and protection of sales are provided to distributor
5.We could do the field test to show the machine operation and work effect
6.We are manufacture, we could promise the quality and price
rotary hook shot blasting machine
Qingdao Rovan Machinery Co., Ltd
1.Established in 2001the factory is located in Qingdao, China.
2.Mainly manufacture shot blasting machine, dust collector, microseism squeeze molding machine/sand molding machine, core shooter machine, resin sand production line, clay sand production line, etc.
3. All products has ISO9001 and CE certification,
4. OEM also could provide for you.
Welcome to our factory for machine discussion and cooperation.
rotary hook shot blasting machine
Please confirm the following information before choose machine type:
1. What's workpiece need to blast clean ?
2. What's the workpiece size ?
3. What's the productivity ?
4. What's the workpiece weight ?
