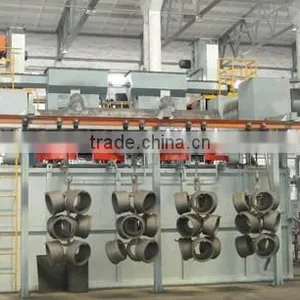

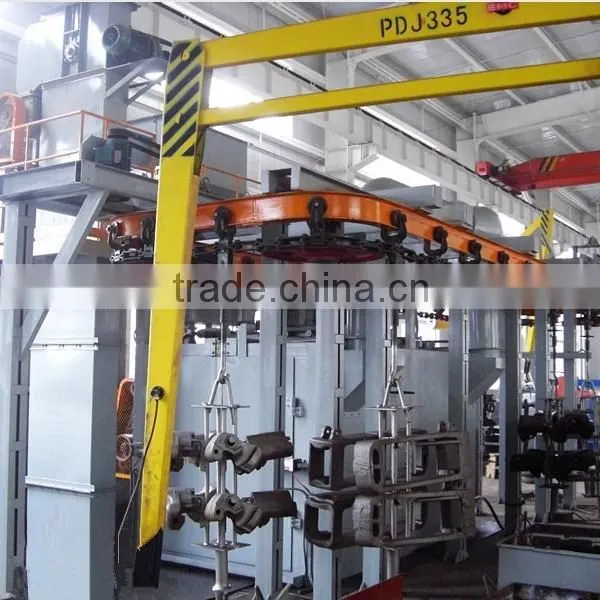

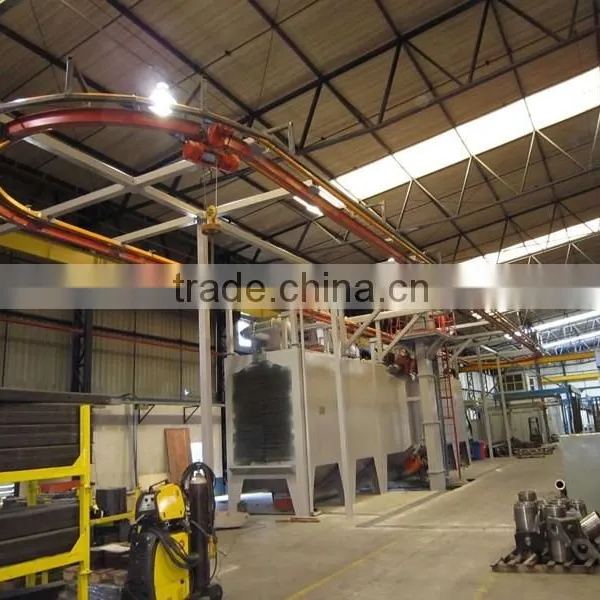

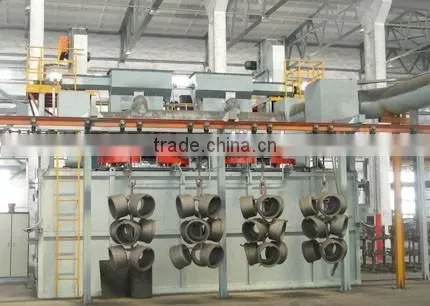

Q38 Q48 Q58 series catenary stepping type shot blasting machine has three types: continuous mix, step-by step and accumulating roller conveyor.
Q38 Q48 catenary stepping type shot blasting machine are suitable for processing large bathes middle-and small-size work pieces.The work pieces,along with the pendent chin, move continuously or step by step,or by accumulating rooler conveyor transportating.They can stop at given position and shot-blasting room.It is very easy and exect to finish the stactic loading/unloading and shot blasting works,the single hook can load capacity of 50-2000kg, accumulating roller chains have unique advantages:high efficiency and reliable operation.
Techncial parameter for reference
Item |
Q383C |
Q384C |
Q385C |
|
Productivity (hook/h) |
50,65,38,49 |
70,80 |
75 |
Speed of hook(m/min) |
0.5,0.65 |
0.8,0.93 |
0.65 |
Carrying capacity of single hook(kg) |
250 |
400 |
500 |
Intervalbetween lifting hooks(mm) |
600,800 |
800 |
800 |
Abrasive flow rate(Kg/min) |
4*250 |
6*250 |
5*250 |
Ventilation capacity(mm) |
18000 |
26500 |
23700 |
Cleaning size(mm) |
500*1200 700*1200 |
700*1500 |
700*1500 |
Outline dimension(mm) |
11764*5525*8254 |
15380*14706*9542 |
15308*14706*9542 |
Pit depth |
2070 |
2667 |
1700 |
Power consumption(kw) |
75.3 |
122.6 |
106.75 |
Gross weight of machine(kg) |
19370 |
53600 |
31877 |
Item |
Q483C |
Q485C |
Q4810 |
Productivity(hook/h) |
10 |
10 |
10 |
Speed of hook(m/min) |
2.44 |
7.34 |
2.44 |
Carrying capacity of single hook(kg) |
300 |
500 |
1000 |
Intervalbetween lifting hooks(mm) |
2560 |
2560 |
2560 |
Abrasive flow rate(Kg/min) |
2*250 |
3*250 |
6*360 |
Ventilation capacity(mm) |
6000 |
10000 |
25000 |
Cleaning size(mm) |
1000*1400 |
1200*1700 |
700*2400 |
Outline dimension(mm) |
8450&5350*5003 |
12235*5410*9411 |
4500*5350*5003 |
Power consumption(kw) |
38.75 |
58.43 |
85 |
Gross weight of machine(kg) |
11150 |
18365 |
11300 |
Item |
Q583C |
Q5810 |
Productivity(hook/h) |
30-60 |
50 |
Speed of hook(m/min) |
variable frequency |
/ |
Carrying capacity of single hook(kg) |
300 |
1000 |
Intervalbetween lifting hooks(mm) |
1000 |
/ |
Abrasive flow rate(Kg/min) |
4*250 |
6*360 |
Ventilation capacity(mm) |
18000 |
25000 |
Cleaning size(mm) |
1000*1500 |
750*2400 |
Outline dimension(mm) |
18000*5960*6440 |
17700*9615*10000 |
Gross weight of machine(kg) |
127.25 |
160 |

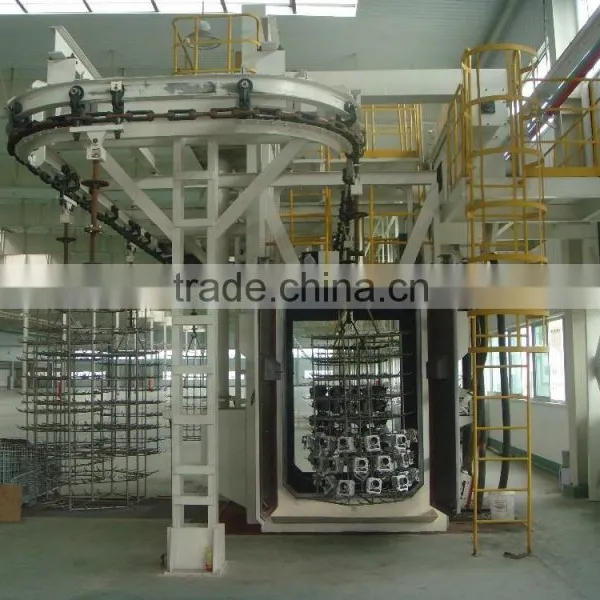

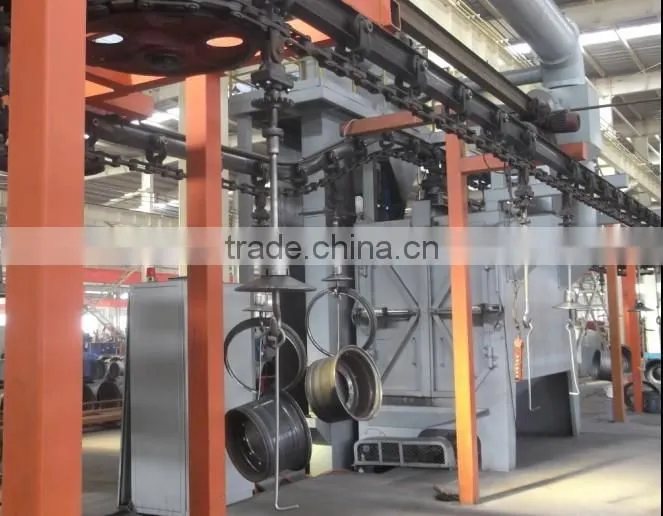

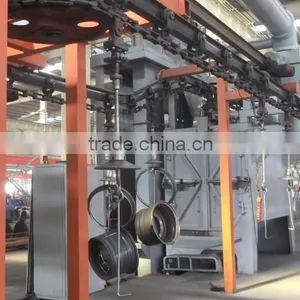

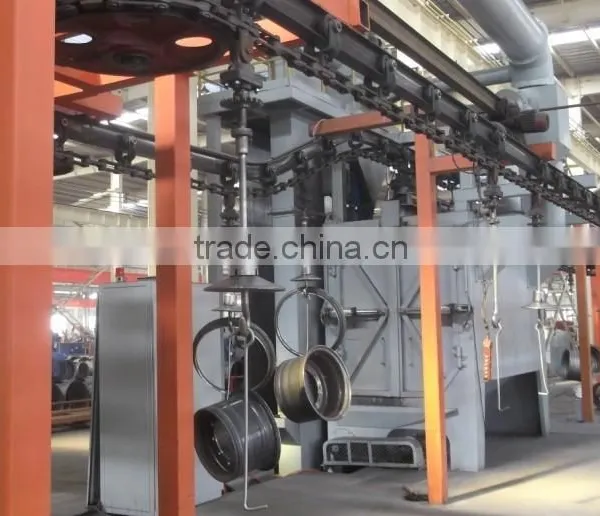

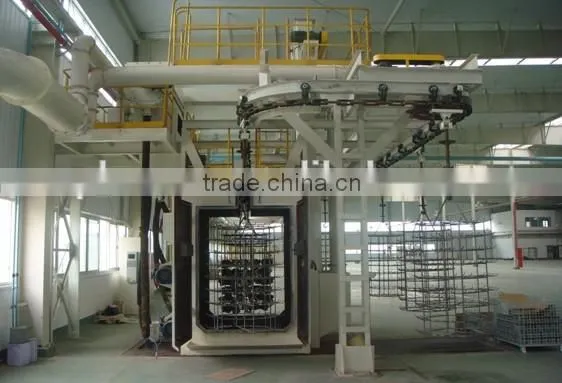

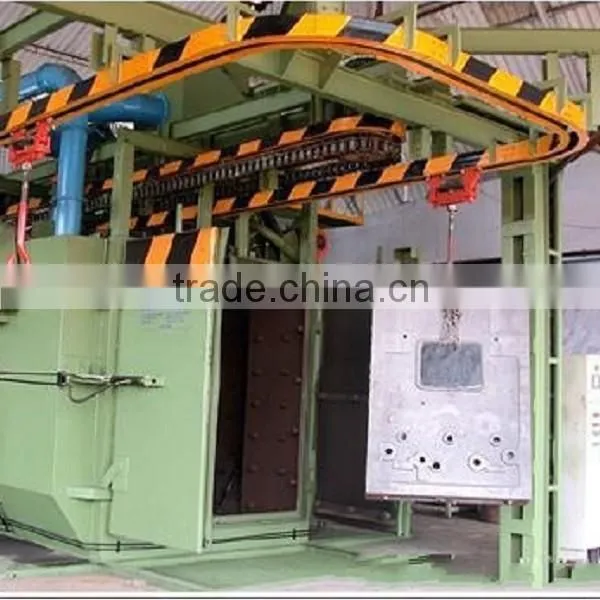

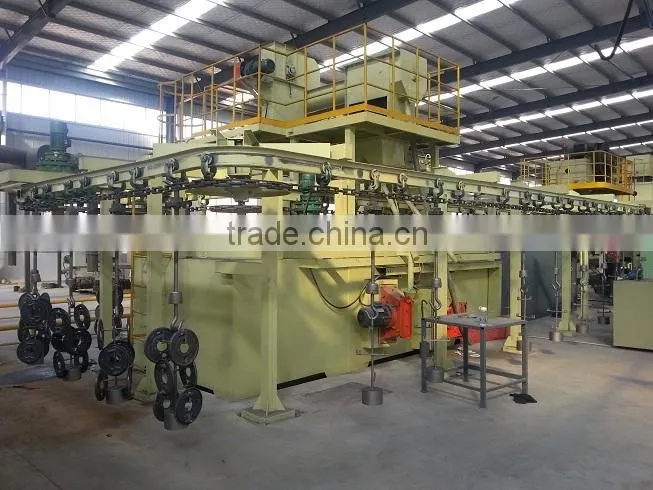

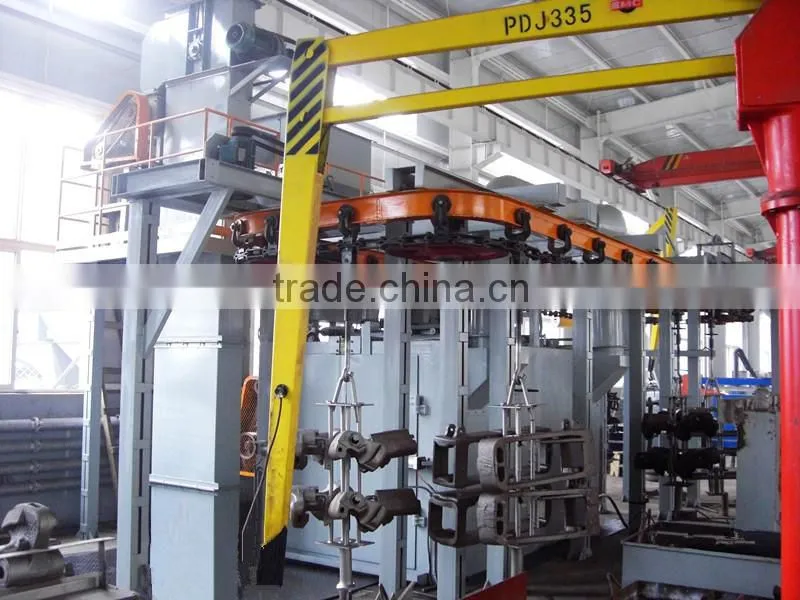

catenary stepping type shot blasting machine
Small parts are packed by wooden case, others are nude packing
catenary stepping type shot blasting machine
1.Reply you in the 24h
2.Reply you in English
3.Design according to technical requirement
4.Special discount and protection of sales are provided to distributor
5.We could do the field test to show the machine operation and work effect
6.We are manufacture, we could promise the quality and price
catenary stepping type shot blasting machine
Qingdao Rovan Machinery Co., Ltd established in 2001, located in Qingdao, China.
Mainly manufacure shot/sand blasting machine, dust collector, resin sand or clay sand production line, core shooter, sand molding machine, and rubber machinery, and the above products spare parts, etc.
All products has ISO9001 & CE certification, also provide OEM.
Most of products are non-standard, and design according to user techncial demand.
All products warranty time is for one year
catenary stepping type shot blasting machine
Please confirm the follwoing information:
1.What workpiece need to blast clean?
2.What's the workpiece size?
3.What's the workpiece weight ?
4.What's the productivity do you need ?
