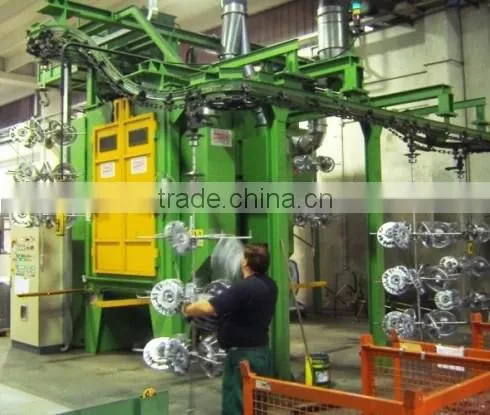

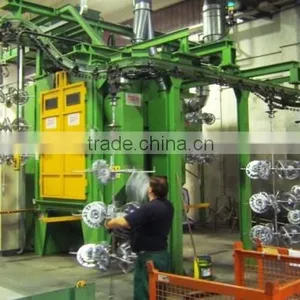

Alloy wheels shot blasting
Product Description

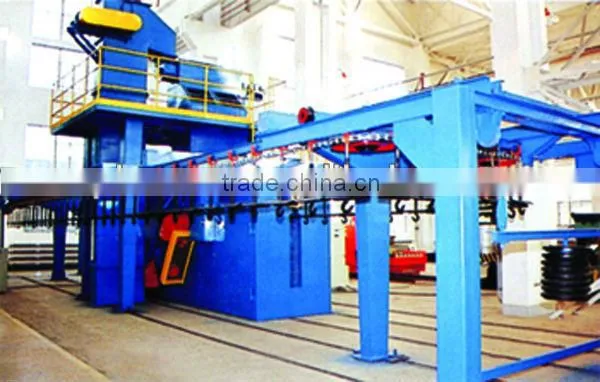

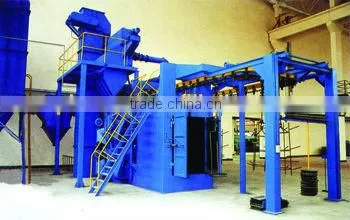

Catenary Hanging Chain Type Shot Blasting Machine/Sandblasting Equipment
The tunnel type machines DELTAMATIC are designed to increase the performance of the hook type machines by keeping the
turbines continuously running.

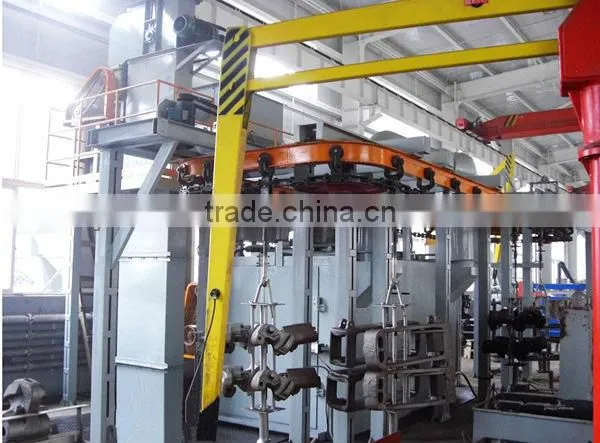

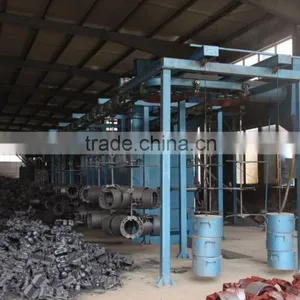

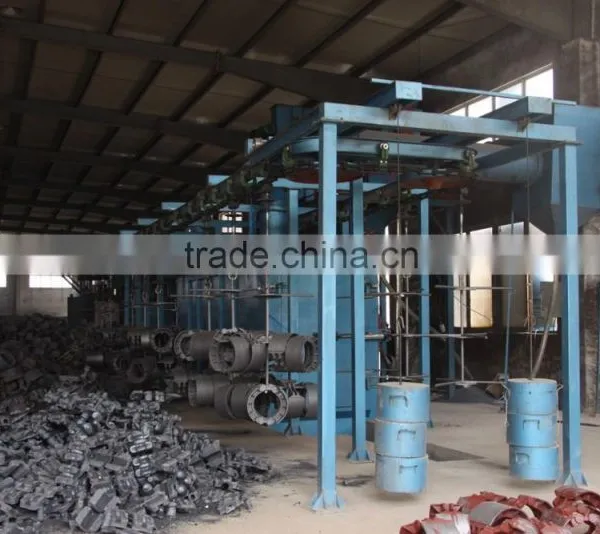

The materials are hanged on several hooks connected to a ring type overhead conveyor, which can be monorail, double rail or
with hoists.

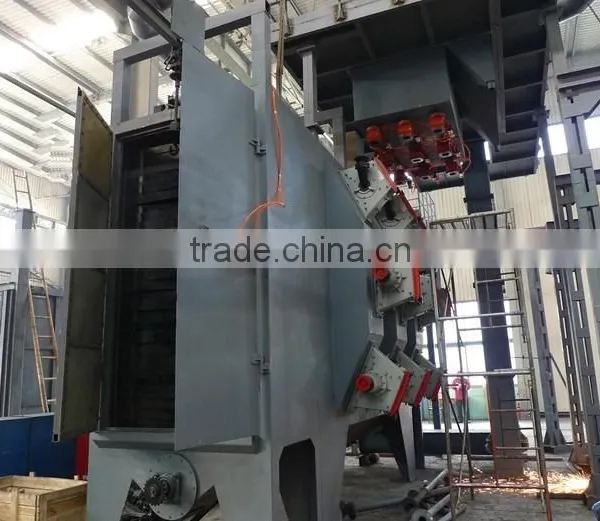

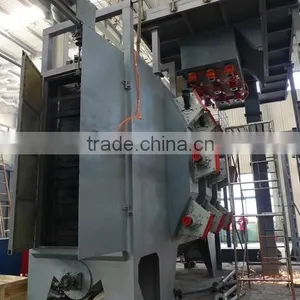

The hook inside the blasting room, once in position, starts to rotate on its axis and move back and forward in front of the
turbines (mounted on one side of the machine). These combined movements ensure the complete shot-blasting of the parts
external surface.
The customer can choose the size and loading capacity of the machine according to the parts to be shot-blasted.
Depending on the height of the machine, the installation may require a pit. The shot blasting unit is supplied complete with
a self-cleaning dry cartridges dust collector.
Advantage
1 Hign productivity
2 Operation security
Technique parameter
| model | Q483 | Q485 | Q4810 |
max weight of workpiece(kg) |
300 | 500 | 800 |
| size of workpiece(mm) | Φ1000*1400 | Φ1200*1700 | Φ700*2400 |
| abrasive flow rate(kg/min) | 2*250 | 3*250 | 6*360 |
| productivity(hook/h) | 10 | 10 | 10 |
| speed of pendant chain(m/min) | 2.44 | 2.44 | 2.44 |
| distance of pendant chain(mm) | 1280 | 1600 | 1280 |
| total ventilation capacity(m³/h) | 6000 | 10000 | 25000 |
| power(excluding dedusting)(kw) | 38.75 | 58.43 | 85 |
| outline dimensions(mm) | 8450*5350*5003 | 12235*5410*9411 | 4500*5350*5003 |
About us
Qingdao Rovan Machinery Co.,Ltd was established in 2001, Asia's largest shot blasting machine supplier, do foreign trade
export for ten years,mainly produces shot blasting machine, shot peening equipment, resin sand equipment, sand plant
equipment, dust collector and conditioning equipment, V law molding line etc.
Technical advantages
With new product design,development,prototype,debug capabilities,provide users with the best technical solutions in the
shortest time,and delivery in high quality.In the shot blasting,sand casting,shape own professional technicist to leading
technology work.
Trade Terms:
1. Payment:
(1)Telegraphic Transfer(30% advance payment, balance before shipment)
(2)Telegraphic Transfer(30% advance payment, balance against copy of documents)
(3)Letter of Credit: at sight
2. Lead Time: 2 weeks after confirmed order
3. Delivery way: by sea
Application:
surface treatment
machined part
style design
Service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and
staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years,
competitive with good quantity.
7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our
products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
If you want to buy shot blasting machine, could you tell me the answers as follow?Please indicate the following details:
1) What kind of workpiece will you clean? Material?2) The size of it, length, width and height of maximum workpiece? Length, width and height of minimum workpiece?
3) How heavy is each workpiece? Especially the weight of maximum workpiece?4) How many tons will you clean for each month or each day?
After getting your informations, the detailed technical parameters will be sent to you for your reference. Note:As we are an
integrated company, we sell our products direct to customers without any extra agent charges. Hence, our price is relatively
lower than others. Moreover, we are using the most advanced equipment and technology in order to produce high quality
and more professional.
