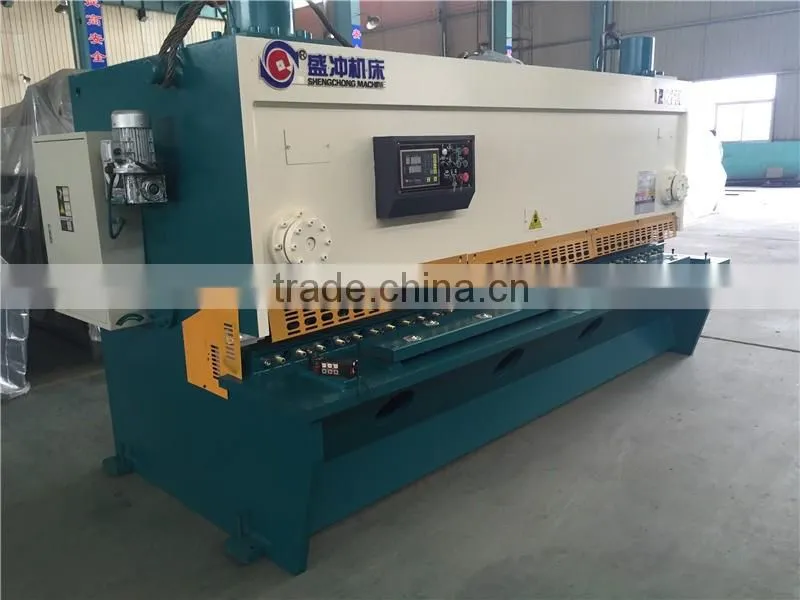

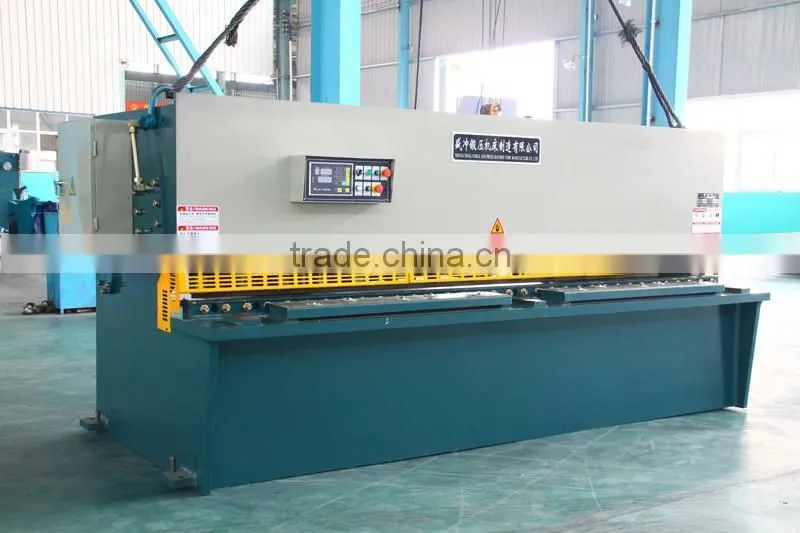

QC12Y hydraulic shears with MD11-1
1,Features
The machine body is made of whole steel plate welded structure,with good rigidity and vibration resistance strength. |
Using German technology to eliminate internal stress |
Using UG(FEM)analysis method,by the computer aided optimization design. |
Work surface is equipped with auxiliary cutter holder, easy to trace adjusting the blade |
Work surface equipped with feed ball, convenient operation |
The blade gap adjustment adopts stepless adjusting mechanism, to meet the need of different thickness and material of shear |
Rectangular blade, can use four edge shearing, prolong the service life of blade |
Adjust the shearing stroke, can improve the machining efficiency, and nibbling function can be realized |
Shear frequency automatic counting, reduced the numerous lock count |
Main technical parameters
Number |
Item |
Values |
Unit |
1 |
Cutting length |
2500 |
mm |
2 |
Max cutting thickness |
6 |
mm |
3 |
Cutting angle |
1°30′ |
degree |
4 |
The number of presser foot |
10 |
Piece |
5 |
Travel times |
25 |
times/min |
6 |
Throat depth |
150 |
mm |
7 |
Travel of rear stopper |
400 |
mm |
8 |
Main motor power |
7.5 |
Kw |
9 |
Dimension |
3200*1500*2100 |
mm |
10 |
Voltage |
380V 50HZ 3PH |
- |
MD11-1 NC Controller
| |
1:MD11-1 number control system for the economy simple numerical control system 2:Simple operation: the system has a 10-step programming 3:Manual features:manual mode,adjust the desires size 4:Back so that workers can: this feature-based system unique 5:Parameter setting functions: system parameter modification functions |
Shengchong Standard Equipment of Guillotine shears
Parts |
Brand |
Come From |
Hydraulic system |
Bosch-Rexroth |
Germany |
Electric control system |
Schneider |
Franch |
Main Motor |
Siemens |
Germany |
Oil pump |
Sunny |
USA |
Ball screw&liner guide |
Hiwin |
Taiwan |
Footstep Switch |
Shengchong |
China |
Front and rear stopper
1.Front gauge:Placed on a table surface with instructions numerical scale to adjust activities stop to achieve the required keep-off value .When shearing steel sheet using the keep-off shear is more convenient.

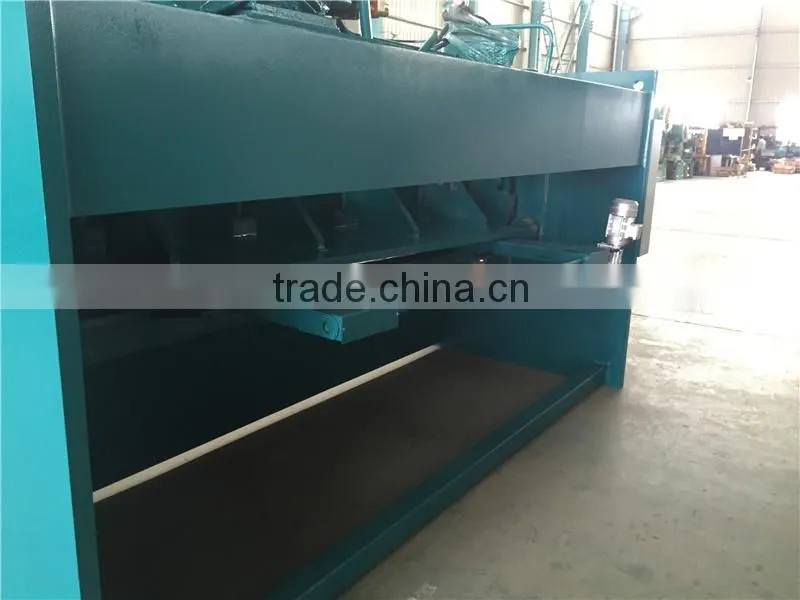

2.Rear stopper:Installed in the tool post, along with the rest on the bobbing up and down.The rear stopper is adjusted by 0.55KW motor drive after gear reduction by the lead screw transmission.
6,Export Quality Control (CE &SGS)
|
|
More Pictures
Ball screw and linear guide from Taiwan Hiwin
CNC control system from MD-11

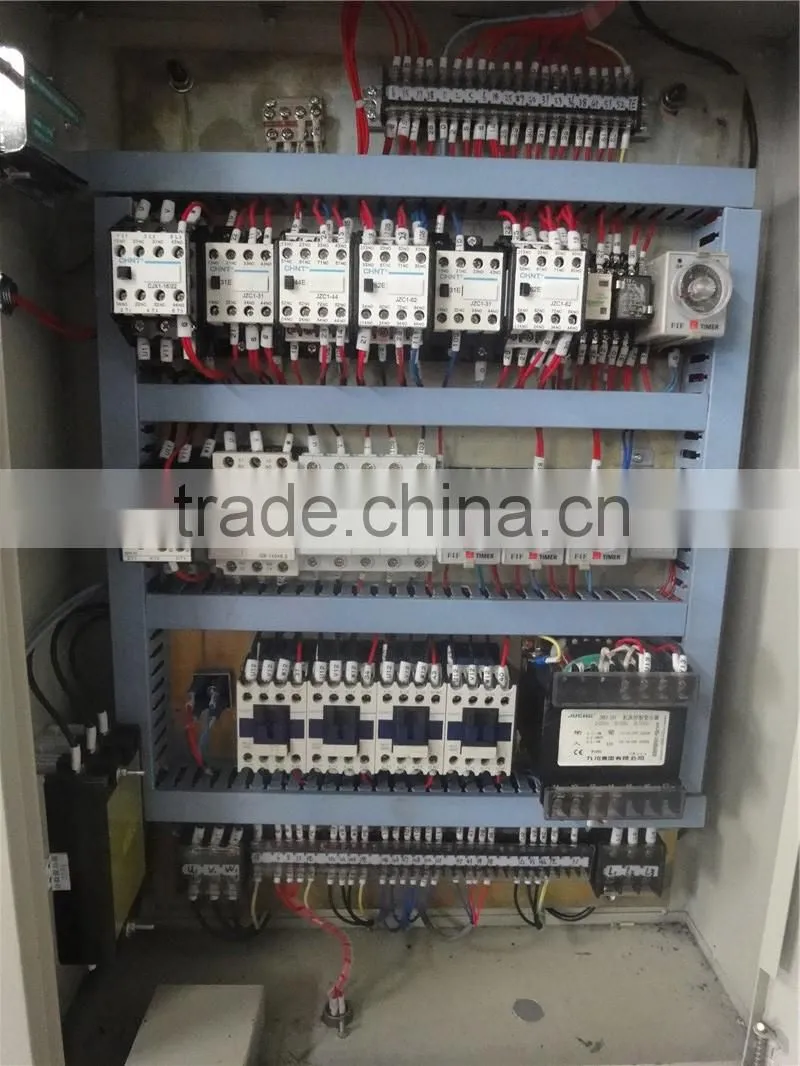

Electric elements are Schneider

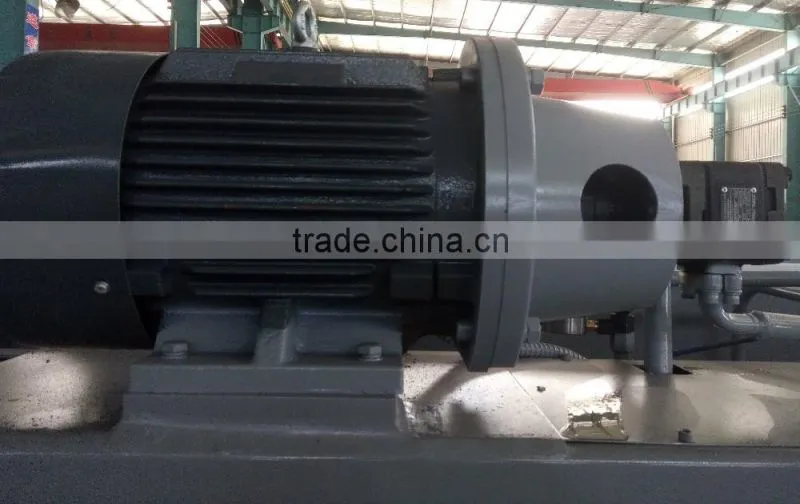

Main motor from Siemens

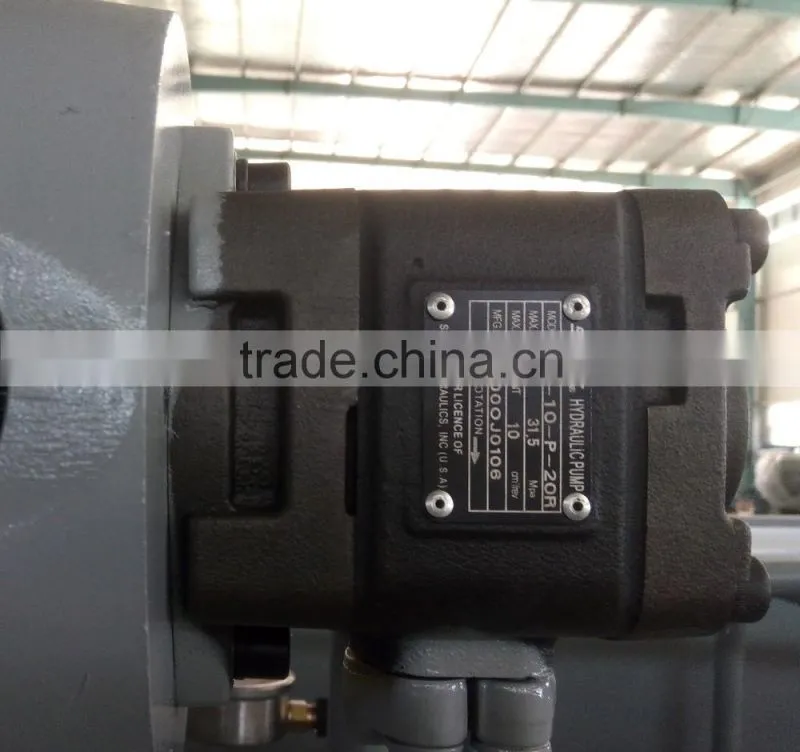

Oil pump from Sunny
| Nanjing Shengchong Forging Machine Manufacturer Co., Ltd |
| Add: Mingjue Industrial Zone,Lishui District, Nanjing City, Jiangsu, China |
| Web: |
| Tel:0086-25-57262498 skype:cnshengchong |
| Email: cnshengchong(at) |
Thank you for your looking, if you are intersted in our products, please do not
hesitate to contact us. Enjoy your time.
