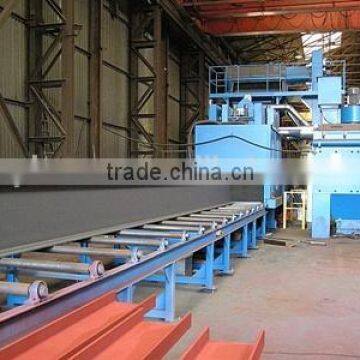

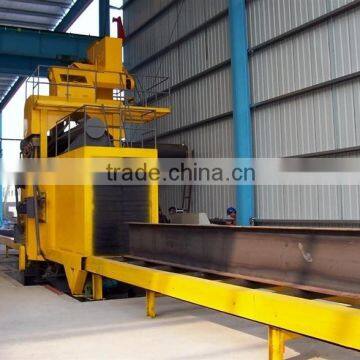

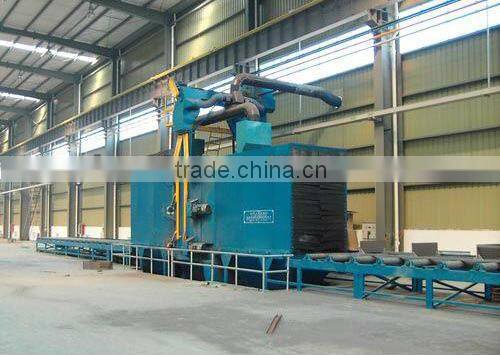

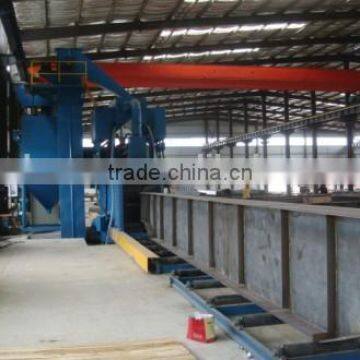

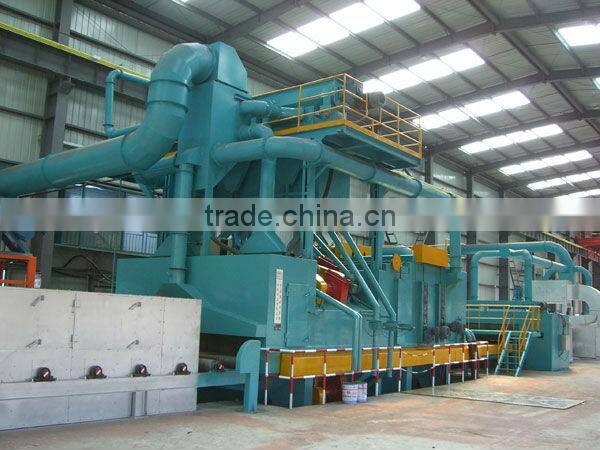

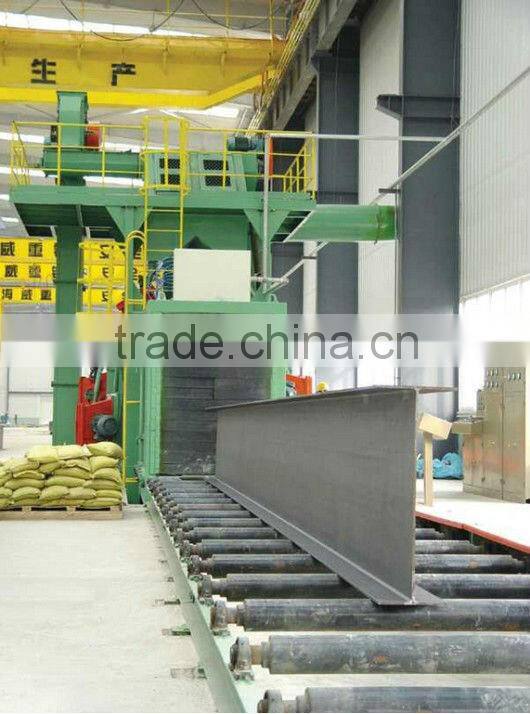

Direct manufacturer of shot blasting machine, deruster shot blaster Qh69 series is roller type shot blast machine, mainly used in building, bridge and other industries H beam size and other
steel structure to eliminate stress and surface rust cleaning. The structure steel and reasonable size structure piece can be
once cleaning. Not only can remove the workpiece rust, but also can remove the welding slag on the structural parts, the
workpiece can also eliminate welding stress and improve the fatigue strength of workpiece, increase film adhesion
workpiece painting, and ultimately to improve the surface quality purposes.
Q69 sereis profile steel shot blast cleaning equipment Work Principle
Take advantage of the high-speed rotating impeller, throw steel shot/pill on section steel surfaceto achieve derusting to get metal internal molecular arrangement dislocation, reinforce section steel's resistance to fatigue strength.
Composition Auto-loading system, Roller bed system, Shot blasting system, Auto-unloading system, Dust collect system,
Electrical control system.
Q69 sereis profile steel shot blast cleaning equipment Features
This series of machines belong to the roller type shot blast-cleaning machine, and mainly used to de-stress and surface
derust the steel structures, such as Large-scale H steel, etc. in the construction and bridge professions.
Q69 sereis profile steel shot blast cleaning equipment Tchnique parameter
| model | Q698 | Q6912 | Q6915 | Q6920 |
| effective cleaning width(mm) | 800 | 1200 | 1500 | 2000 |
| dimension of inlet opening(mm) | 800*1600 | 1200*400 | 1500*400 | 2000*400 |
| length of cleaning piece(mm) | 1200-12000 | 1200-6000 | 1200-12000 | 1200-12000 |
| roller speed(stepless speed regulation)(m/min) | 0.5-4 | 0.5-4 | 0.5-5 | 0.5-4 |
| thickness of cleaning steel plate(mm) | 3-60 | 3-60 | 1.5-60 | 3-60 |
| specification of the treated sectional bars | Φ16-28 | 1≤20#<≤16# | 1≤20#<≤16# | 1≤20#<≤16# |
| abrasive flow rate(kg/min) | 8*120 | 4*250 | 4*250 | 6*250 |
| abrasive initial filling(kg) | 4000 | 4000 | 4000 | 4500 |
| adjusting height of rolling brush(scraping plate(mm) | 400 | 200 | 350 | 450 |
| ventilation capacity(m³/h) | 22000 | 17560 | 19000 | 19550 |
| outline dimensions(mm) | 25017*4500*9015 | 12180*4250*7095 | 15200*5370*6797 | 30650*6850*9095 |
| pit depty(mm) | 1937 | 1616 | 2257 | 2800 |
| total power(excluding dedusting)(kw) | 90 | 78.3 | 113.5 | 156.6 |
| gross weight of machine(t) | 20 | 20.4 | 33 | 41 |
About Us
Qingdao Rovan Machinery Co.,Ltd was established in 2001, Asia's largest shot blasting machine supplier, do foreign trade
export for ten years,mainly produces shot blasting machine, shot peening equipment, resin sand equipment, sand
plant equipment, dust collector and conditioning equipment, V law molding line etc.
Q69 sereis profile steel shot blast cleaning equipment Trade Terms:
1. Payment:
1) Telegraphic Transfer (30% advance payment, balance before shipment).
2) Telegraphic Transfer (30% advance payment, balance against copy of documents).
3) Letter of Credit: at sight.
2. Lead Time: 2 weeks after confirmed order
3. Delivery way: by sea
Q69 sereis profile steel shot blast cleaning equipment Application:
1. Surface preparation
2. wear-resistant spare parts
3. Model design
Q69 sereis profile steel shot blast cleaning equipment Service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 11 years,
competitive with good quantity.
7. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges are
usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products
to be finished in high quality and stable feature. Welcome to contact us or visit our company.
If you want to buy shot blasting machine, could you tell me the answers as follow?Please indicate the following details:
1) What kind of workpiece will you clean? Material?2) The size of it, length, width and height of maximum workpiece? Length, width and height of minimum workpiece?
3) How heavy is each workpiece? Especially the weight of maximum workpiece?4) How many tons will you clean for each month or each day?
After getting your informations, the detailed technical parameters will be sent to you for your reference.
Note:As we are an integrated company, we sell our products direct to customers without any extra agent charges. Hence, our price isrelatively lower than others. Moreover, we are using the most advanced equipment and technology in order to produce high quality and more professional.
