crawler type shot blaster
Overall Description

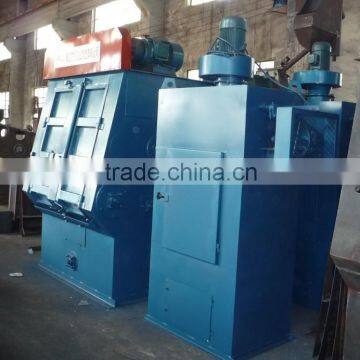

Q326 crawler type shot blaster
The machine is suitable for many varieties, mass production parts, especially afraid of collision surface cleaning,
Derusting or peening, can use single, and can be used in group.
But should pay special attention to: cannot directly to heat, with flash, burr parts are cleaned up, otherwise easy to damage the rubber tracks.
Technical Parameters
Crack speed |
3.6r/min |
||
Weight of single workpiece |
10kg |
||
Diameter of crack end disk |
Φ650mm |
||
Max load of drum |
200kg |
||
Productivity |
600-1200kg/h |
||
|
Impeller head Q034 |
Quantity |
1 |
|
Impeller effective diameter |
Φ420mm |
||
Blade width |
60mm |
||
Abrasive flow rate |
120kg/min |
||
Power |
7.5kw |
||
Crawler track transmission structure |
Transmission speed |
0.1m/s |
|
Motor power |
3kw |
||
Elevator |
Lifting capacity |
15t/h |
|
power |
1.5kw |
||
Separator |
Separating capacity |
16t/h |
|
Air consumption |
1500m3/h |
||
Ventilation capacity |
2000m3/h |
||
Power of fan |
2.2kw |
||
Total power |
12.67kw |
||
Outline dimension |
1500mm×18800mm×3900mm |
||
|
|
||
Note:productivity is associated with artifacts shape,general cleaning workpiece surface area≤0.25m2
Details Description
This machine is mainly composed of shot blasting machine,cleaning room,elevator, screw conveyor, separation system, dust removing system, electrical system and other parts.

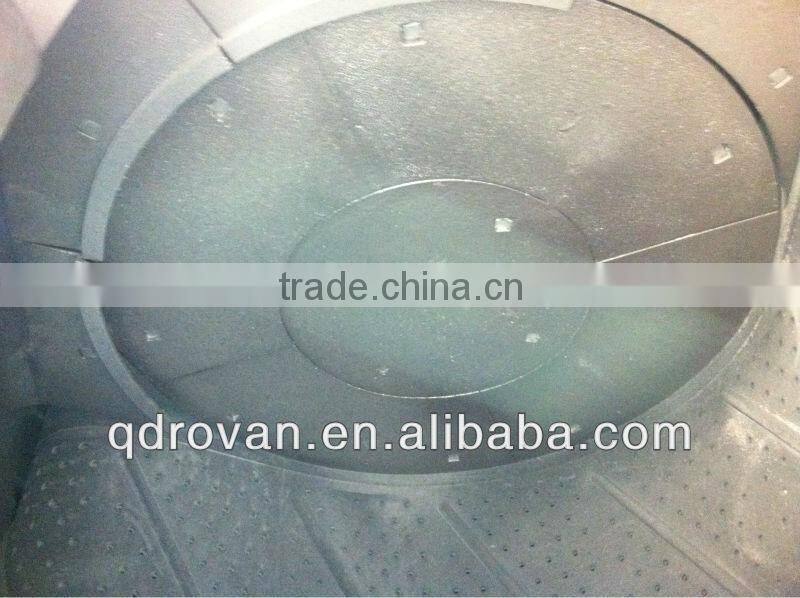

Part 1.Cleaning room
High-carbon chromium wearing-resistant plate/Long lifetime.
The material of our cleaning room wearing-resistant plate is high-carbon chromium owning long lifetime,also the room has good sealing with good security and efficiency.
Wearing-resistant plate chemical composition
| Cr | 76.5% |
| Mo | 4% |
| Si | 1.2% |
| Mn | 1.5% |
| Ni | 1% |
| Cu | 1.8% |
| Iron and steel | 220% |
| |

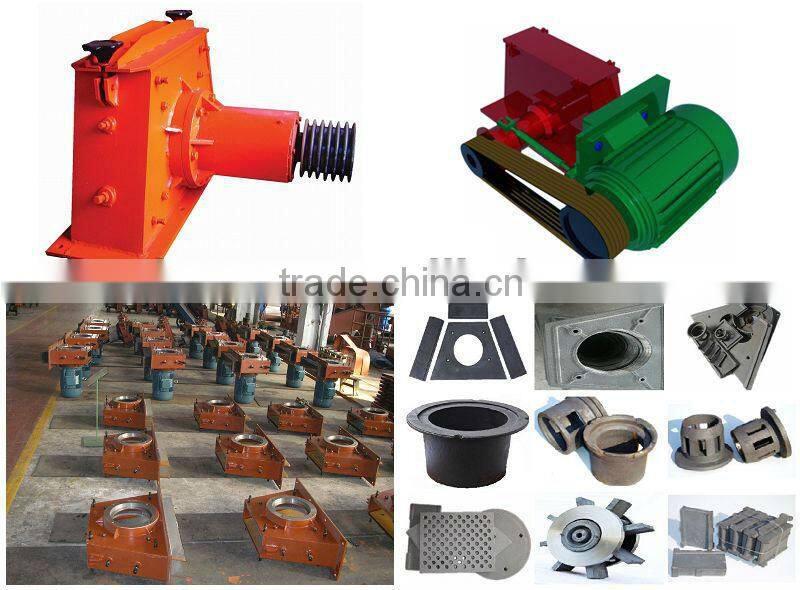

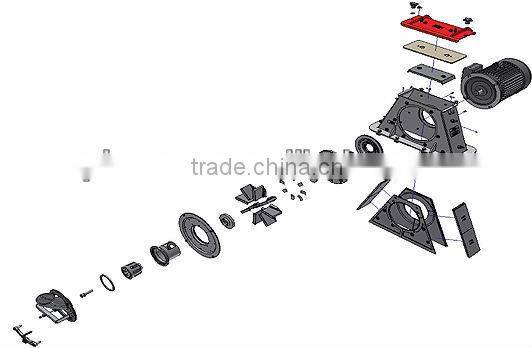

Part 2. Impeller head
High-carbon chromium/Good sealing,strength,operation and stablity/Economical
SKF Bearing/Siemens Motor.
Our impeller head is made with high-carbon chromium owing best structure and intensity,and designed by experienced engineers.And it gets good sealing,which guarantees good operation and stablity.The bearing materail is high-carbon chromium bearing steel,so the bearing has good strength and long lifetime reducing customer's cost.

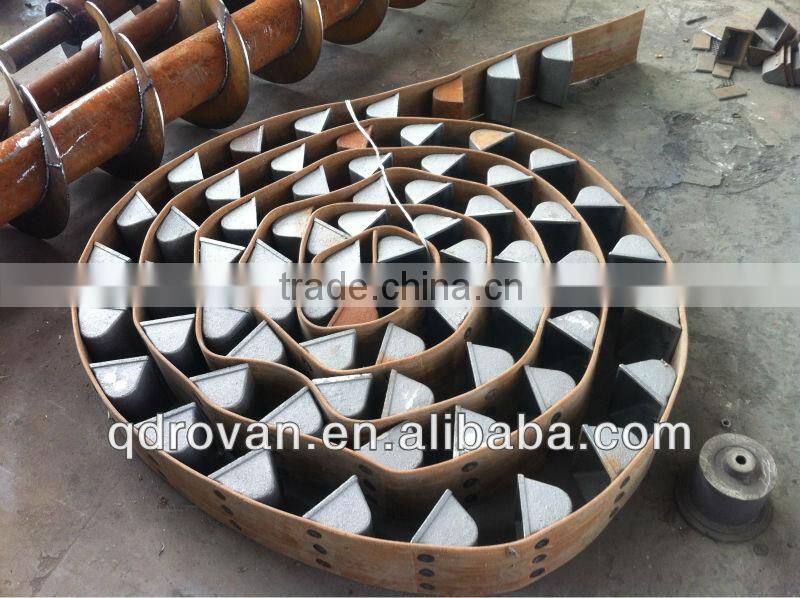

Part 3.Elevator
Stable operation/High-efficiency.
Using flat drive belt bucket elevator,centrifugal gravity blanking.Its function is to take used shot mixturing with dust from the bottom of the screw conveyor to the top of the cleaning machine separator,The elevatoring cover adopts bending forming welding structure,good appearance,good rigidity.

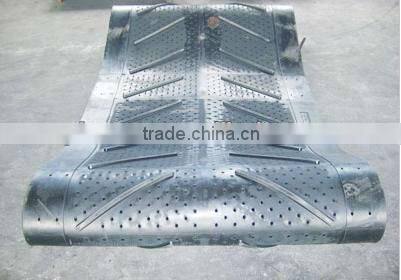

Part 4.Belt
Long service life/Uniform thickness/Stable operation.
The cover glue adopts high-strentgh wear-resisting rubber formula,long service life,with uniform thickness,surface is smooth,
stable operation
Technical parameters
| Circumference | 3400mm |
| Width | 1130mm |
| Thickness | 19mm |
| Bore diameter | 7mm |
| KG load | 300 |
| Guide rib | √ |
| Hardness(shore A) | 63°C±3°C |
| Tensile strength | 20.0MPa |
| Elongation at break | 500% |
| Elasticity | 52% |
| Abrasion | 0.24cm3 |
| Tearing strength | 6806KN/m |
| Aging coefficient | (70°C/72H)0.91 |
| Adhesive force | 48.2-31.36N/cm |
| |

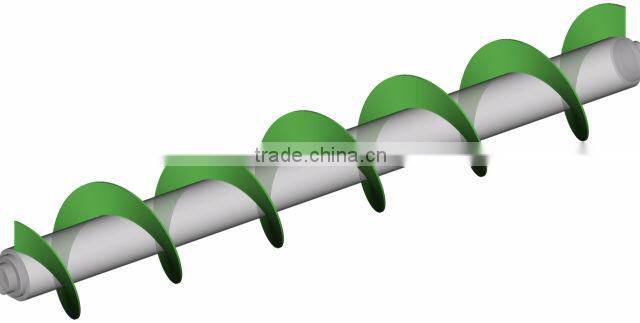

Part 5.Screw conveyor
Stable operation/Efficiency.
High-carbon chrome material and efficient design with reliable operation experience

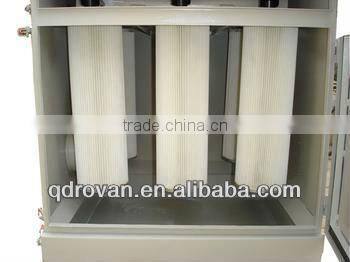

Part 6.Dust removal system
High-efficiency/Eco saving/Maintain conveniently
There are two types,one is filter type,and the other is bag type.All are good efficiency and maintained conveniently.
Packaing:in nude or according to your request.
Shipping:by sea in container
1.Reply you in the 24h
2.Reply you in English
3.Design according to technical requirement
4.Special discount and protection of sales are provided to distributor
5.We could do the field test to show the machine operation and work effect
6.We are manufacture, we could promise the quality and price
Qingdao Rovan Machinery Co., Ltd
1.Established in 2001the factory is located in Qingdao, China.
2.Mainly manufacture shot blasting machine, dust collector, microseism squeeze molding machine/sand molding machine, core shooter machine, resin sand production line, clay sand production line, etc.
3. All products has ISO9001 and CE certification,
4. OEM also could provide for you.
Welcome to our factory for machine discussion and cooperation.
Please confirm the workpiece size, material , weight, and productivity before choose machine model
